| Main Specifications |
| Device Type | SuperChassis 732D4-903B |
| Dimensions (WxDxH) | Height 16.7" (424 mm) x Width 7.6" (193 mm) x Depth 20.68" (525 mm) |
| Color | Black |
| Form Factor | Mid-Tower chassis |
| Supported Mainboards | 12" x 13" E-ATX, 12" x 10" ATX, and 9.6" x 9.6" Micro-ATX |
| Weight | 30 lbs (13.6 kg) |
| Processor Support |
| Processor Support | Supports dual, single Intel / AMD processors |
| Peripheral Drives |
| Peripheral Bay | 2x 5.25" peripheral drive bays |
| 1x 3.5" peripheral drive bay |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 7x Full-height, Full-length I/O expansion slots |
| Drive Bays |
| Internal | 4x 3.5" SAS/SATA HDD Bays (90 rotatable drive cage) |
| Hot-swap | SAS or enterprise SATA HDD only recommended |
| Networking |

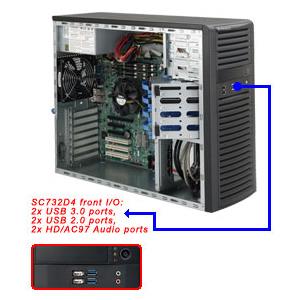

| Ports | 2x Front USB 2.0 ports |
| 2x Front USB 3.0 ports |
| 2x Front HD/AC97 Audio ports |
| System Cooling |
| Fans | 1x 12cm (1850rpm) rear exhaust fan |
| 1x 12cm (1850rpm) front cooling fan (opt.) |
| Optimized Cooling Technology at 21dB Whisper-Quiet Operation |
| FAN-0124L4 |
| Operating Environment (System) |
| Operating Temperature Range | Non-Operating Humidity Range 5 - 95% non-condensing |
| Non-Operating Temperature Range -40 - 70C (-40 - 158F) |
| Humidity Range 8 - 90% non-condensing |
| Operating Temperature Range 10 - 35C (50 - 95F) |
| Power Supply |
| Certification | 80PLUS Gold |
| Power Supply | PWS-903-PQ |
| 900W AC multi output power supply w/ PMBus |
| Max. continuous combined load on +3.3V and +5V output shall not exceed 155W. |
| Max. continuous combined load on +12V1, +12V2, +12V3 and +12V4 output shall not exceed 860W. |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, Germany - TUV Certified, Europe/CE Mark, EN 60950/IEC 60950-Compliant, CCC Certified |
| Parts List |
| Cables | CBL-0071L / CBL-0084L / CBL-0453L / CBL-0455L / CBL-0457L |
| Standard Parts List |
| Chassis | CSE-732D4-903B |
| Chassis Parts | MCP-290-73101-0B |
| Front Bezel | MCP-210-73102-0B |
| Parts List - (Items Included) |
| Drive Trays | MCP-220-73101-0B |
| Mounting Rails | MCP-290-73102-0N |
