- Supermicro CSE-825TQ-R500WB Server Chassis 2U Rackmount

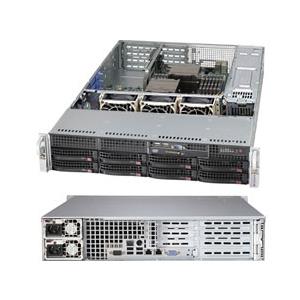

Supermicro CSE-825TQ-R500WB Server Chassis 2U Rackmount
The 2U chassis supports motherboard sizes: Proprietary WIO
8 hot-swap 3.5" SAS/SATA bays with SES-II support + 2 fixed bays
8-Port Backplane – Supports up to 8x 3.5" SAS/SATA HDDs via 2U TQ (AMI 9072)
500W Redundant Power – 1U Platinum PSU with PMBus for efficiency and reliability
Rackmount 2U w/ 500W Redundant 80 Plus Platinum Level Certified Power Supply w/ PMBus, for Motherboard up to 13.68in x 16.5in E-ATX maximum size - Includes 8x 3.5in Hot-Swap SAS/SATA Drive Bays, SAS/SATA Backplane, DVD-ROM is optional - SC825TQ-R500WB - (Black)
1. 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO , 13.68" x 13" motherboards
2. 8 x 3.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards, 2 x 3.5" fixed drive bay
3. 8-port 2U TQ (W/ AMI 9072) backplane, support up to 8x 3.5-inch SAS/SATA HDD
4. 1U 500W Redundant Single Output Power Supply W/PMbus, Platinum level
5. 4 full-height & full-length expansion slot(s) , 3 low-profile expansion slot(s)
6. 3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)
Extra Specifications for Supermicro CSE-825TQ-R500WB Server Chassis 2U Rackmount
| Processor Support | ||
| Processor Support | Dual and Single Intel® and AMD processors | |
| Operating Environment (System) | ||
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Power Supply | ||
| Certification | Platinum Certified | |
| Power Supply | 1U 500W Redundant Single Output Power Supply W/PMbus, Platinum level | |
| Power Efficiency | 94% | |
| Total Output Power and Input | 500W with Input 100 - 240Vac | |
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 336 x 76 x 40 mm | |
| Output Type | Backplanes (gold finger) | |
| -12V | Max: NAA | |
| +12V | Max: 41.7A / Min: 0.2A (100Vac - 240Vac) | |
| +5Vsb | Max: 4A / Min: 0A | |
| +12Vsb | Max: NAA | |
| Power Distributor | -12V Max: 0.6 | |
| +5V Max: 30 | ||
| +3.3V Max: 24 | ||
| PDB-PT825-8824 | ||
| O/P: 12V/75 | ||
| Product SKUs | ||
| Product SKUs | - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply | |
| Form Factor | ||
| Form Factor | 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO , 13.68" x 13" motherboards | |
| Dimensions | ||
| Height | 3.5" (89 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 25.5" (647 mm) | |
| Gross Weight | 52 lbs (23.59 kg) | |
| Packaging (W x H x L) | 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 4 full-height & full-length expansion slot(s) | |
| 3 low-profile expansion slot(s) | ||
| Drive Bays | ||
| Drive Bays | 2 x 3.5" fixed drive bay | |
| 8 x 3.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards | ||
| Backplane | ||
| Backplane | 8-port 2U TQ (W/ AMI 9072) backplane, support up to 8x 3.5-inch SAS/SATA HDD | |
| Peripheral Drives | ||
| Peripheral Drives | Optional 1 x slim DVD-ROM drive bay | |
| Optional 2 x USB 2.0 ports | ||
| Optional 1 x COM port tray | ||
| Optional 2 x USB 3.0 ports | ||
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset Button | ||
| LEDs | Power Status LED | |
| System Information LED | ||
| Power Fail LED | ||
| 2 Network Activity LEDs | ||
| HDD activity LED | ||
| Systems Cooling | ||
| Fans | 3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s) | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| FCC class A | ||
| TUV/CB | ||
| UL/CUL | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Adaptor Bracket | MCP-120-82503-0N | $ 34.00 | 0 | Cable arm adapter for SC825LP,213LP (MCP-290-00073-0N required),HF,RoHS/REACH,PBF | ||
| Cable Management Arm | MCP-290-00073-0N | $ 81.50 | 0 | Supermicro Cable Management Arm for 2U, 3U and 4U chassis | ||
| Rail | MCP-290-00058-0N | $ 103.00 | 0 | Short rail set, quick release, 19.6"~26.9" Extendable Length | ||
| Front USB | MCP-220-00114-0N | $ 43.00 | 0 | Black 2x USB3.0/COM port tray in slim DVD bay,RoHS/REACH | ||
| Front USB | MCP-220-00007-01 | $ 31.00 | 0 | Black USB/COM port tray for SC825, 836 | ||
| Tray(s) | MCP-290-00036-0B | $ 19.00 | 0 | Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836 | ||
| Tray(s) | MCP-220-82503-0B | $ 31.00 | 0 | Black slim FDD kit for SC825/829,828,835 | ||
| HDD Tray | MCP-220-81504-0N | $ 90.00 | 0 | 12G 2.5-in Hot-swap Slim Floppy Size Drive Kit w/Status LED | ||
| Cable | CBL-0044L | $ 17.00 | 0 | SATA CABLE 57.5CM FLAT S-S PBF. 26AWG flat | ||
| Cable | CBL-0481L | $ 17.00 | 0 | 81CM 30AWG SATA S-S cable | ||
| Cable | CBL-SAST-0699 | $ 29.00 | 0 | internal mini SAS HD to 4 SATA 12G, 75/75/90/90cm w/75cm SB, S. 30AWG,RoHS/REACH | ||
| Cable | CBL-0082L | $ 17.00 | 0 | Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG | ||
| Cable | CBL-0296L | $ 17.00 | 0 | 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG | ||
| LCD/OLED Solutions | MCP-220-00119-0B | $ 86.50 | 0 | 2nd Gen Black 3.5" OLED tray, support 1x internal 2.5" HDD | ||
| SATA DVD Kit | MCP-220-81502-0N | $ 28.50 | 0 | Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842 | ||
| HDD Tray Converter | MCP-220-00043-0N | $ 26.00 | 0 | Black hot-swap gen 4 3.5 to 2.5 HDD tray | ||
| HDD Tray Converter | MCP-220-00118-0B | $ 31.50 | 0 | Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH | ||
| DVD-ROM / DVD-RW | DVM-TEAC-DVD-SBT5 | $ 84.50 | 0 | BLACK TEAC SLIM DVD SATA DRIVE,HF,RoHS | ||
| Peripheral Drive(s) | FPD-TEAC-SB | 0 | BLACK SLIM TEAC FLOPPY DRIVE FOR SC813 | |||
| Front Bezel | MCP-210-82503-0B | $ 34.00 | 0 | Black SC825 front bezel |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
