| Main Specifications |
| Dimensions (WxDxH) | Height 5.2" (132 mm) x Width 17.2" (437 mm) x Depth 25.5" (647 mm) |
| Color | Black |

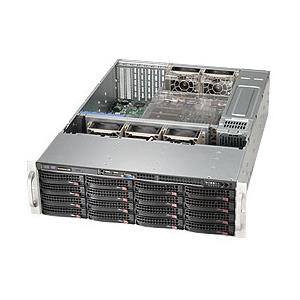

| Form Factor | 3U chassis Support max. motherboard size - 13.68" x 13", E-ATX, ATX |
| Weight | 72 lbs (32.7kg) |
| Processor Support |
| Processor Support | Supports dual, single Intel / AMD processors |
| Drive Bays |
| Hot-swap | 16x 3.5" Hot-swap SAS Drive Bays with SES2 (dual-channel) and optional 2x 2.5" Hot-swap SAS Drive Bays on rear side of Chassis - SAS or enterprise SATA HDD only recommended |
| SAS / SATA Backplane |
| SAS / SATA Backplane | 3Gb/6Gb support |
| SES-2 Enclosure Management Support |
| SAS/SATA support |
| Four SFF 8087 connectors |
| 3U Direct Attached Backplane, features |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED, Power Fail LED |
| Networking |
| Ports | 2x USB Ports & DB9 COM Port |
| Peripheral Drives |
| DVD-ROM | Slim DVD-ROM drive (optional) |
| Floppy | Slim 1.44MB Floppy Drive (Optional) |
| System Cooling |
| Fans | 3x 80mm Hot-swap 4-pin PWM Fans, 2x 80mm Rear-exhaust 4-pin PWM Fans |
| FAN-0125L4 / FAN-0126L4 |
| Operating Environment (System) |
| Operating Temperature Range | Non-Operating Humidity Range 5 - 95% non-condensing |
| Non-Operating Temperature Range -40 - 70C (-40 - 158F) |
| Humidity Range 8 - 90% non-condensing |
| Operating Temperature Range 10 - 35C (50 - 95F) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 7x full-height full-length expansion slots |
| Power Supply |
| Certification | 80PLUS Platinum Certified |
| Power Supply | 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C |
| PWS-920P-1R / PDB-PT837-8824 |
| Regulatory Safety / EMC | USA - UL listed, Canada - CUL listed, Germany - TUV Certified, EN 60950/IEC 60950-Compliant, CB Report, CCC Certification |
| Parts List - (Items Included) |
| Air Shroud | MCP-310-39001-0N |
| Backplane | BPN-SAS-836A |
| Mounting Rails | MCP-290-00053-0N / MCP-410-00007-0N |
| Parts List |
| Cables | CBL-0071L |
| Standard Parts List |
| Chassis | CSE-836BA-R920B / MCP-420-83601-0N |
| Drive Tray | MCP-290-83605-0N / MCP-220-00075-0B / MCP-220-00007-01 |
| Part | ACC836-00-2B / MCP-290-83601-0V / MCP-240-83605-0N |
| Accessory | MCP-290-00007-01 |
