| System Memory |
| Memory Type | 3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM |
| DIMM Sizes | LRDIMM: 256GB |
| RDIMM: 256GB |
| 256GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| Memory Capacity | 8 DIMM slots |
| Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB ECC RDIMM, DDR4-3200MHz |
| On-Board Devices |
| Chipset | Intel® C621A |
| IPMI | ASPEED AST2600 BMC |
| Network Controllers | Dual LAN with Intel® X550 10GBase-T Ethernet Controller |
| Graphics | 1 ASPEED AST2600 BMC port(s) |
| SATA | Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Input / Output |
| LAN | 2 RJ45 10 Gigabit Ethernet LAN ports |
| USB | 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A) |
| Video Output | 1 VGA port(s) |
| Serial Port | 1 COM Port(s) (1 header) |
| DOM | 2 SATA DOM (Disk on Module) power connector support |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Type | AMI UEFI |
| Management |
| Software | SuperDoctor® 5, NMI, SUM , KVM with dedicated LAN, SPM , Intel® Node Manager, SSM , IPMI2.0 , Watchdog |
| System Management Software | IPMICFG, IPMIView for Linux/Windows, SMCIPMITool |
| Power Configurations | ACPI Power Management |
| PC Health Monitoring |
| Voltage | Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, 8 -fan status |
| Temperature | CPU thermal trip support |
| PECI |
| LED | UID/Remote UID |
| BMC/IPMI Heartbeat LED |
| Other Features | UID, Node Manager Support, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT, NCSI header |
| FAN | 8x 4-pin fan headers (up to 8 fans) |
| PWM fan speed control |
| Overheat LED indication |
| Product SKUs |

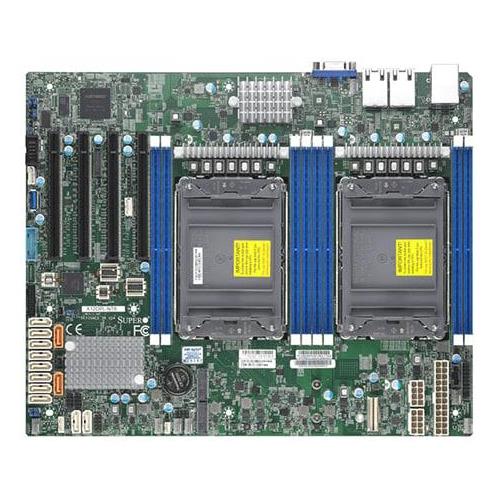

| Product SKUs | MBD-X12DPL-NT6 |
| Physical Stats |
| Form Factor | ATX |
| Dimension | 12.23" x 10" (31.06cm x 25.4cm) |
| Processor |
| CPU | 3rd Gen Intel® Xeon® Scalable processors |
| Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, Dual UPI up to 11.2 GT/s |
| Expansion Slots |
| PCIe | 4 PCIe 4.0 x16 |
| M.2 | M.2 Interface: 1 PCIe 4.0 x4; 1 PCIe 4.0 x4 |
| Form Factor: 2280/22110, 2280 |
| Key: M-Key, M-Key |
| Operating Environment |
| Operating Temperature Range | 10°C - 35°C (50°F - 95°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
