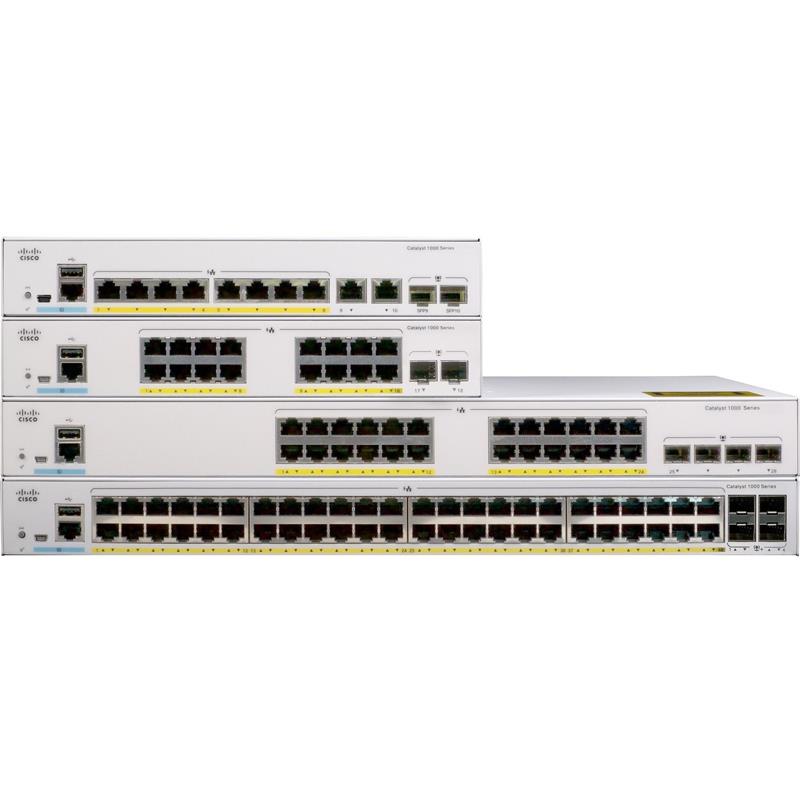

Cisco C1000-48T-4G-L Ethernet Switch 48 Ports, Manageable, 2 Layer Supported
Designed for small businesses and branch offices
Ideal for critical Internet of Things (IoT) deployments
Deliver enhanced network security, network reliability
Ethernet Switch 48 Ports, Manageable, 2 Layer Supported, Modular, Twisted Pair, Optical Fiber SFP
Cisco Catalyst 1000 Series Switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible, and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco Catalyst 1000 operates on Cisco IOS Software and supports simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for Small and Medium-Sized (SMB) organizations.
Extra Specifications for Cisco C1000-48T-4G-L Ethernet Switch 48 Ports, Manageable, 2 Layer Supported
Main Specifications | ||
Device Type | Switch - 48 ports - managed | |
Enclosure Type | Rack-mountable | |
Subtype | Gigabit Ethernet | |
Dimensions (WxDxH) | 17.5 in x 10.7 in x 1.7 in | |
Weight | 8.71 lb | |
Capacity | Unicast MAC addresses: 15360, IPv4 unicast direct routes: 542, IPv4 unicast indirect routes: 256, IPv6 unicast direct routes: 414, IPv6 unicast indirect routes: 128, IPv4 routes (static): 16, IPv6 routes (static): 16, IPv4 routes (Multicast): 1024, IPv6 groups (Multicast): 1024, IPv4/MAC security ACEs: 600, IPv6 security ACEs: 600, Active VLANs: 256, VLAN IDs: 4094, STP instances: 64, SPAN sessions: 4, MTU-L3 packet: 9198 byte | |
Processor | ||
Embedded Processor | X ARM: 800 MHz | |
Memory RAM | 512 MB | |
Flash Memory | 256 MB | |
Networking | ||
Ports | 48 x 10/100/1000 + 4 x Gigabit SFP (uplink) | |
Performance | Forwarding bandwidth: 52 Gbps, Switching bandwidth: 104 Gbps, Forwarding rate (64-byte L3 packets): 77.38 Mpps | |
Jumbo Frame Support | 10240 bytes | |
Routing Protocol | IGMP, MLDv2, MLD, MSTP, RSTP, STP | |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS | |
Status Indicators | Yes | |
Miscellaneous | ||
Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) | |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A | |
Expansion / Connectivity | ||
Expansion / Connectivity | 48 x 1000Base-T RJ-45, 4 x 1000Base-X SFP uplink, 1 x management RJ-45, 1 x mini-USB Type B, 1 x USB Type A | |
Power Supply | ||
Power Supply | Internal power supply | |
Environmental Parameters | ||
Operating/Temperature | Min Operating Temperature: 23 °F - Max Operating Temperature: 122 °F | |
Humidity Range Operating: 5 - 90% - Humidity Range Storage: 5 - 95% | ||
Min Storage Temperature: -13 °F - Max Storage Temperature: 158 °F |
