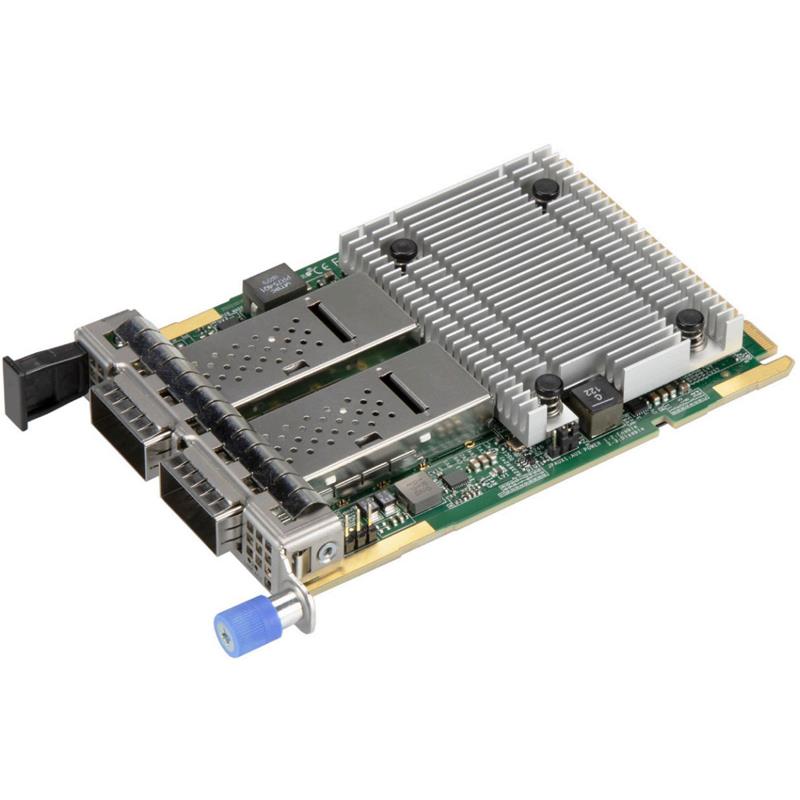

- Supermicro AOC-A100G-B2CM 100GbE Ethernet Adapter Card Dual QSFP28 Connector Advanced I/O Module (AIOM) OCP 3.0 Form Factor
Supermicro AOC-A100G-B2CM 100GbE Ethernet Adapter Card Dual QSFP28 Connector Advanced I/O Module (AIOM) OCP 3.0 Form Factor
Provide a wide range of networking options
Asset Management Features with thermal sensor
Ideal for Data Centers and Enterprise environments
100 Gigabit Ethernet Adapter with a 0.5U height bracket
Network Adapter AIOM Dual Port 100GbE QSFP28, based on Broadcom BCM57508 With a 0.5U Height Bracket
Advanced 100Gb Ethernet controller in Supermicro Advanced I/O Module (AIOM)
Supermicro Advanced I/O Modules (AIOM) are the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The AOC-A100G-b2CM is one of the most feature-rich and low power consumption 100GbE controllers in the market. Based on the Broadcom® BCM57508 with features such as VXLAN, NVGRE, RoCE, and NIC Partitioning, it provides unparalleled density, performance, and functionality. The Supermicro AOC-A100G-b2CM is the most versatile 100GbE controller in the market and an excellent choice to enhance network connectivity in Data Centers and Enterprise environments.
Key Features
Advanced I/O Module (AIOM) Form Factor
Broadcom BCM57508 100GbE controller
Support for 100GbE, 50GbE, and 40GbE Speed

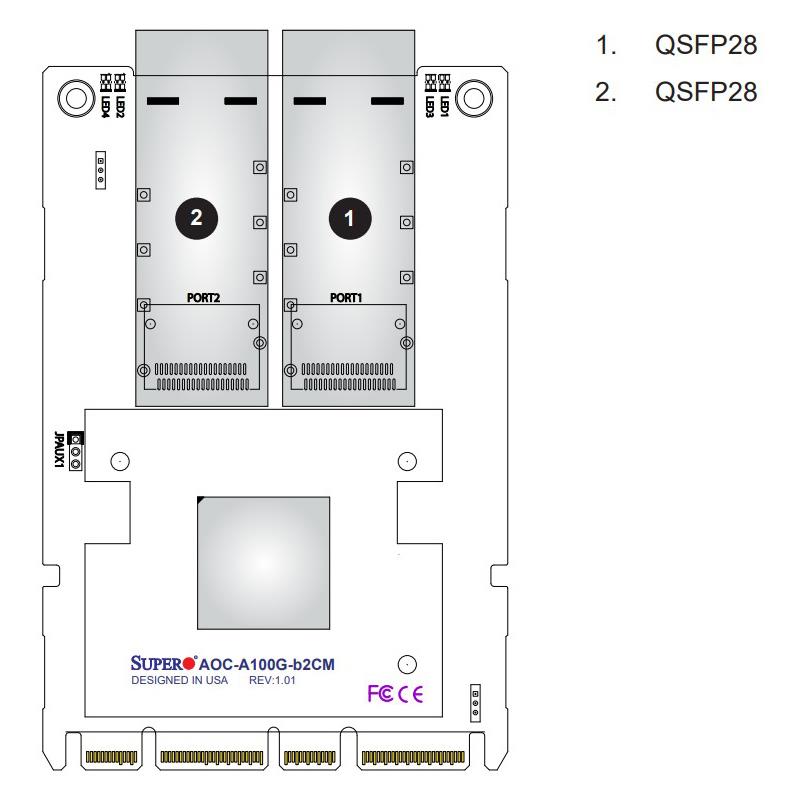

Dual QSFP28 connectors
RDMA over Converged Ethernet (RoCE)
VXLAN, NVGRE and Geneve
NIC Partitioning (NPAR)
Broadcom TruFlow flow processing engine
Asset Management Features with thermal sensor
NC-SI for Remote Management
Extra Specifications for Supermicro AOC-A100G-B2CM 100GbE Ethernet Adapter Card Dual QSFP28 Connector Advanced I/O Module (AIOM) OCP 3.0 Form Factor
| Main Specifications | ||
| Device Type | Ethernet Controller Card | |
| Form Factor | Advanced I/O Module (AIOM) | |
| Dimensions (WxDxH) | Card PCB dimensions: 76mm x 115mm (W x D) | |
| Connectivity | ||
| Connectors | Dual QSFP28 | |
| Networking | ||
| Controller Type | Broadcom BCM57508 100GbE | |
| Stateless Offload Features | TCP, UDP and IP checksum offloads, IPv4 and IPv6 offloads, Large Send Offload, Receive Segment Coalescing, TCP Segmentation Offload, Large Receive Offload, Receive Side Scaling (RSS), Transmit Side Scaling (TSS) | |
| NIC Partitioning | 16 Physical Functions, QoS per partition, Partitioning control via sideband communication, Up to 64 MAC/VLAN filter per partition, Per partition statistics support, Stateless offloads configuration per partition, VEB/VEPA support | |
| Virtualization Features | NetQueue, VMQueue, and Multiqueue, SR-IOV with up to 128 Virtual Functions (VFs), VXLAN, NVGRE, and Geneve, Edge Virtual Bridging (EVB) | |
| Flow Processing | Exact/Wildcard Match Flow Lookup, VLAN insertion/deletion, NAT/NAPT/Mirroring | |
| Data Center Bridging | Priority-based flow control (PFC; IEEE 802.1Qbb), Enhanced transmission selection (ETS; IEEE 802.1Qau), Quantized congestion Notification (QCN; IEEE 802.1Qau), Data Center Bridging Capability eXchange (DCBX; IEEE 802.1Qaz), 8 traffic classes per port; fully DCB compliant per 802.1Qbb | |
| Power | ||
| Power Consumption | 20 W | |
| Miscellaneous | ||
| Compliant Standards | RoHS 6/6 | |

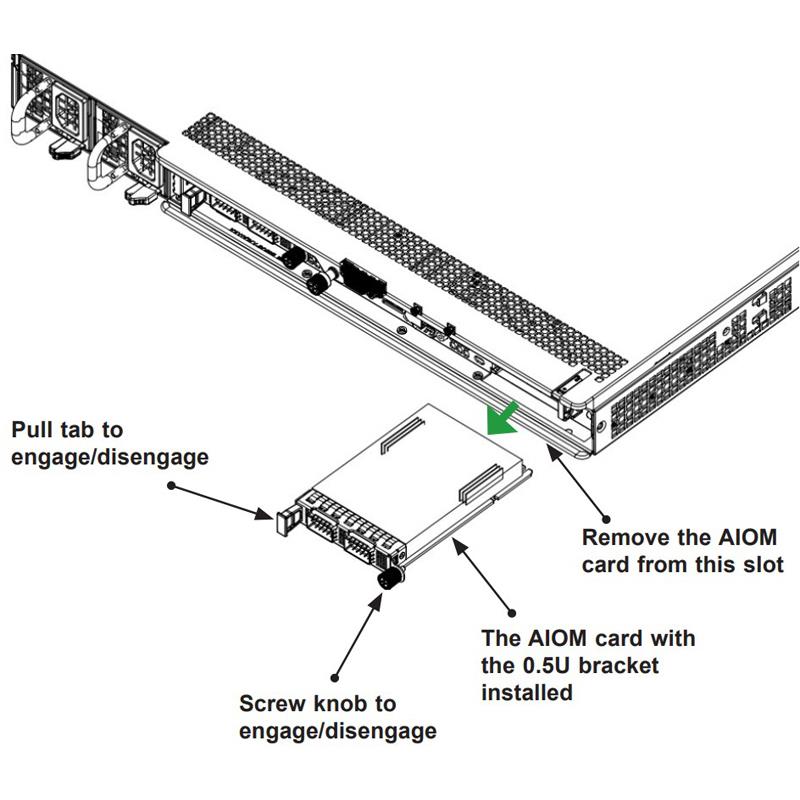

| Bracket Included | BKT-0170L - 0.5U Height Bracket | |
| Environmental | ||
| Operating Environment | Storage temperature: -40°C to 70°C (-40°F to 158°F) | |
| Storage humidity: 90% non-condensing relative humidity at 35°C | ||
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
