| Add-on Card |

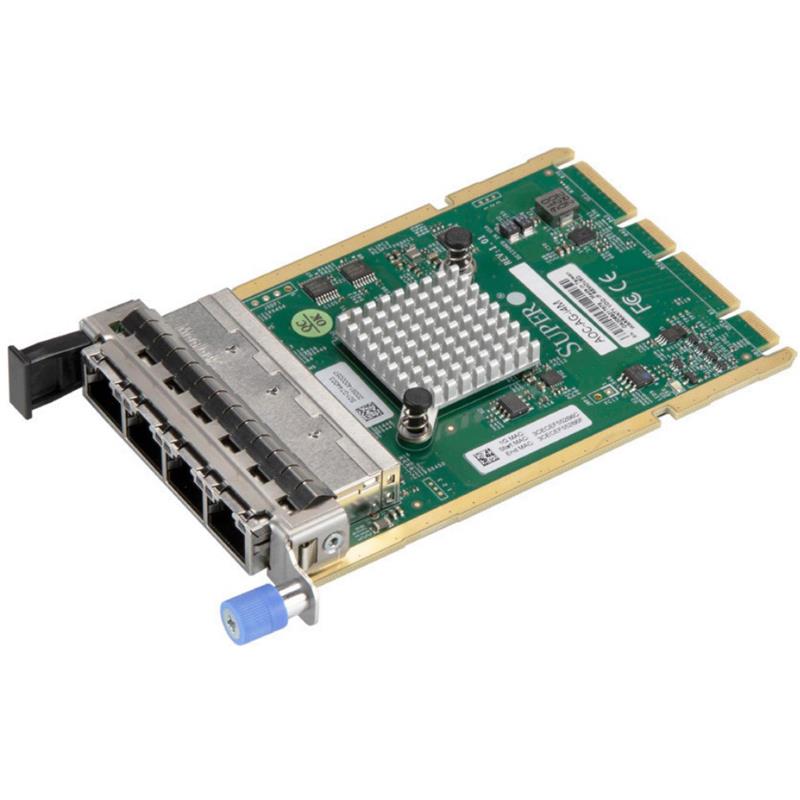

| Add-on Card | The Supermicro® Advanced I/O Module (AIOM) is the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The GbE adapter AOC-AG-i4(M) is the most flexible and scalable GbE solution providing 4 RJ45 ports. Based on the Intel® network controller i350, and with performance-enhancing features, power management technologies, the AOC-AG-i4(M) provides a quality networking choice for datacenters while reducing CPU utilization and power consumption. With the added NC-SI feature, this adapter also functions as a secure networking port for server remote management. To order, contact your distributor. This product is only available through Supermicro. |
| Compliance |
| RoHS | RoHS Compliant 6/6 |
| Specifications |
| Networking Features | IEEE 802.3 auto-negotiation for speed, duplex, and flow control |
| IEEE 802.3x and 802.3z compliant flow control support |
| Automatic cross-over detection function (MDI/MDI-X) |
| 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant |
| Virtualization Features: | PC-SIG SR-IOV support |
| VM to VM Packet forwarding (Packet Loopback) |
| Flexible Port Partitioning |
| IEEE 802.1q VLAN support |
| IEEE 802.1q advanced packet filtering |
| Jumbo Frames support |
| Power Management and Efficiency: | Energy Efficient Ethernet (EEE) |
| DMA Coalescing reduces platform power consumption |
| PCI Express Active State Power Management (ASPM) |
| LAN disable function |
| Low Power Link Up – Link Speed Control |
| Performance Features: | TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU usage |
| Low Latency Interrupts |
| Tx TCP segmentation offload (IPv4, IPv6) increases throughput and lowers processor usage |
| Receive Side Scaling (RSS) for Windows environment, Scalable I/O for Linux environments |
| Intelligent interrupt generation |
| Management Features: | Preboot eXecution Environment (PXE) support |
| iSCSI Remote Boot Support |
| Asset Management support on Supermicro® platforms |
| NC-SI for remote management |
| OS Support: | Windows® Server |
| RedHat Linux |
| SUSE Linux |
| FreeBSD |
| UEFI |
| VMWare |
| Power Consumption (Max): | AOC-AG-i4(M): 4.4W |
| Operating Conditions: | Storage temperature: -40°C to 70°C (-40°F to 158°F) |
| Storage humidity: 90% non-condensing relative humidity at 35°C |
| Physical Dimensions: | PCB dimensions: 76mm x 115mm (W x D) |
| Advanced I/O Module (AIOM) Form Factor |
