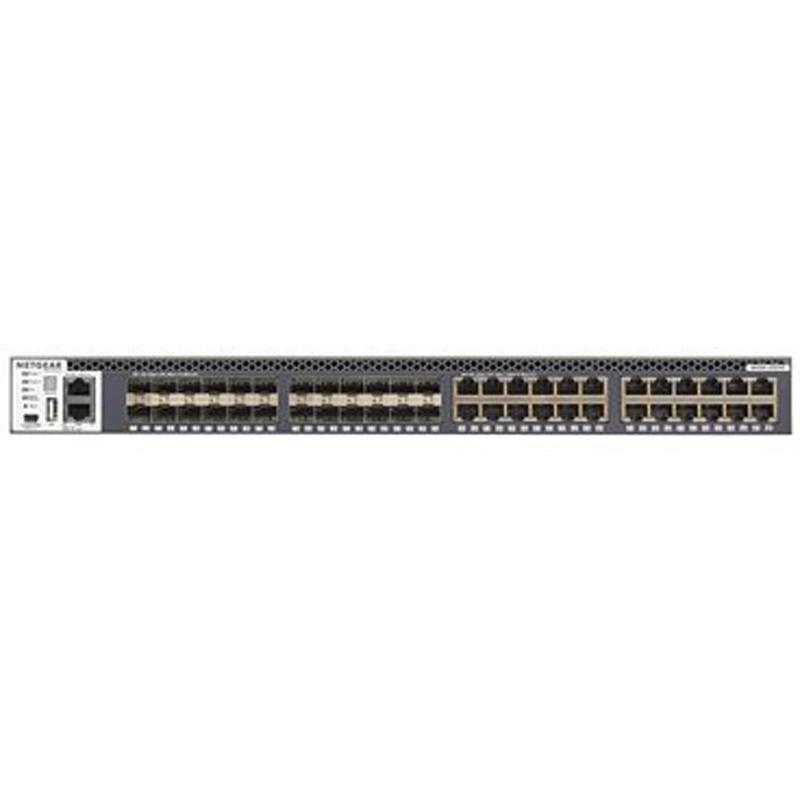

Netgear XSM4348S-100NES Network Switch M4300 Stackable Managed with 48x10G

  • Vertical or horizontal flexible stacking

  • Dual redundant, modular power supplies

  • 24 Ports SFP+ and 24 Ports 10GbE Copper

  • High-performance IPv4/IPv6 multicast routing

Network Switch M4300 Stackable Managed with 48x10G including 24x10GBASE-T and 24xSFP+ Layer 3 - 24 Ports - Manageable - 3 Layer Supported - Modular - Twisted Pair, Optical Fiber - 1U High - Rack-mountable


    4,618.004,618.004618.0USD

    4,618.00

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    The NETGEAR M4300 Switch Series delivers L2/L3/L4 and IPv4/IPv6 rich services for enterprise edge and SMB aggregation deployments with unrivaled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series. Non-stop forwarding virtual chassis architectures provide advanced High Availability (HA) with hitless failover, that is, distributed link aggregation allows for load balancing and virtually zero downtime. The license-free L3 feature set includes static routing, policy-based routing, RIP, VRRP, OSpiv as well as Multicast PIM routing. The NETGEAR M4300 Switch Series is ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.


    M4300-24X24F comes with 24 ports 10GBASE-T and 24 ports 10GBASE-X SFP+ in a full-width form factor. All 48 ports are independent and 1G backward compatible for progressive transition to 10G speeds. Ideal for Top-of-Rack server and storage applications: 1+1 PSU protection and front to back cooling ensure hot and cold aisle compliance. M4300-24X24F is line-rate with 960Gbps fabric for SMB core applications as well as spine and leaf stacking architectures.


    Key Selling Points


    • The M4300-24X24F switch provides 24-port 10GBASE-T and 24-port 10GBASE-X SFP+

    • All (48) 10G ports are independent and 1G backward compatible for progressive transition to 10G speeds

    • With 960Gbps non-blocking fabric, M4300-24X24F delivers L2/L3/L4 and IPv4/IPv6 rich services for virtualization (Auto-iSCSI prioritization), server/storage interconnect, and SMB core applications

    • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover for highest availability (HA)

    • Dual redundant, modular power supplies contribute to business continuity management

    • Lifetime hardware warranty, Lifetime Next Business Day, and Lifetime online technical chat for investment protection and post-sales support

    Extra Specifications for Netgear XSM4348S-100NES Network Switch M4300 Stackable Managed with 48x10G

    Main Specifications
    Device TypeSwitch - 48 ports - L3 - managed - stackable
    Enclosure TypeFront to back airflow rack-mountable 1U
    Subtype10 Gigabit Ethernet
    Dimensions (WxDxH)Width: 17.32, Height: 1.73, Depth: 13.58 inches
    Weight9.12 lb (4.14 kg)
    CapacityVirtual interfaces (VLANs): 4000
    Networking
    PerformanceSwitching capacity: 960 Gbps, Throughput: 714 Mpps
    Routing ProtocolOSPF, RIP, IGMPv2, IGMP, VRRP, PIM-SM, PIM-DM, IGMPv3, MLDv2
    Remote Management ProtocolSNMP, Telnet, HTTPS, SSH, CLI
    Max Units In A Stack8
    Ports24 x 10/100/1000/10000 + 24 x 10 Gigabit SFP+
    Miscellaneous
    Authentication MethodRADIUS, TACACS+
    Compliant StandardsIEEE 802.3ad (LACP), IEEE 802.3az
    FeaturesARP support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, STP Root Guard, IPv4 support, LACP support, DHCP relay, Remote Switch Port Analyzer (RSPAN), Per-VLAN Rapid Spanning Tree (PVRST), dynamic ARP protection, IP source guard, Bridge protocol data unit (BPDU), LISP Across Subnet Mode (ASM), Source-Specific Multicast (SSM)
    Processor
    Embedded Processor1: 800 MHz
    System Memory
    Memory InstalledRAM: 1 GB, Flash Memory: 256 MB
    Expansion / Connectivity
    Expansion / Connectivity24 x 10GBase-T RJ-45, 24 x 10GBase-X SFP+, 1 x management (Gigabit LAN) RJ-45, 1 x serial (RS-232) RJ-45, 1 x console (mini-USB), 1 x USB Type A
    Power
    Power DeviceInternal power supply
    Voltage RequiredAC 120/230 V
