| System Memory |
| Memory Type | 3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS) |
| DIMM Sizes | 8GB, 16GB, 32GB, 64GB, 128GB, 256GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| Memory Capacity | 16 DIMM slots |
| Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz |
| Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz |
| On-Board Devices |
| Chipset | Intel® C621A |
| IPMI | ASPEED AST2600 BMC |
| Network Controllers | Dual LAN with Intel® i210 Gigabit Ethernet Controller |
| Graphics | 1 ASPEED AST2600 BMC port(s) |
| SATA | Intel® C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Audio | 7.1 HD Audio |
| Input / Output |
| USB | 6 USB 3.2 Gen1 port(s) (2 via header; 4 rear) |
| 2 USB 3.2 Gen2 port(s) (1 via header; 1 rear type A) |
| Video Output | 1 VGA D-Sub Connector port(s) |
| Serial Port | 1 COM Port(s) (1 header) |
| DOM | 2 Super DOM (Disk on Module) power connector |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Type | AMI UEFI |
| Management |
| Software | SuperDoctor® 5, SUM , SPM , Intel® Node Manager, SSM , Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support |
| PC Health Monitoring |
| Voltage | VBAT, System temperature, PCH temperature, Monitors CPU voltages, Memory temperature, CPU temperature, CPU, +5V standby, +5V, +3.3V, +12V, VRM temperature, Memory Voltages, 8 -fan status |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| LED | CPU / System Overheat LED |
| Power LED |
| BMC/IPMI Heartbeat LED |
| Other Features | WOL, UID, RoHS, Node Manager Support, CPU thermal trip support for processor protection, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT, NCSI header |
| FAN | 8x fans with tachometer monitoring |
| 8x 4-pin fan headers (up to 8 fans) |
| PWM fan speed control |
| Status monitoring for speed control |
| Product SKUs |

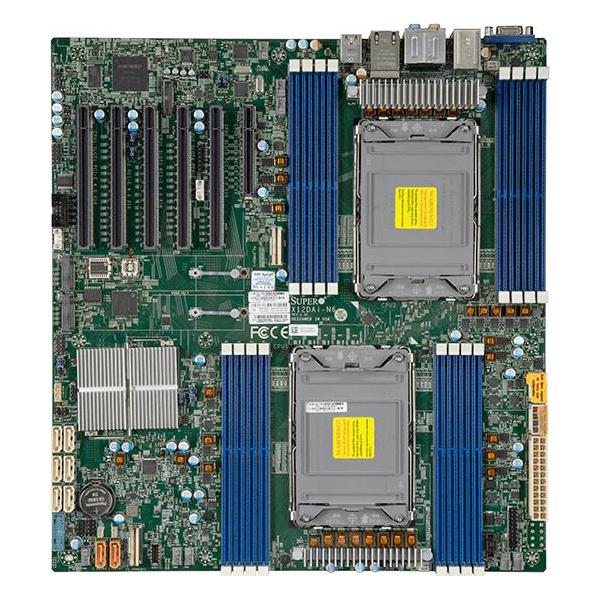

| Product SKUs | MBD-X12DAI-N6 |
| Physical Stats |
| Form Factor | E-ATX |
| Dimension | 12" x 13" (30.48cm x 33.02cm) |
| Processor |
| CPU | 3rd Gen Intel® Xeon® Scalable processors |
| Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s |
| Expansion Slots |
| PCIe | 1 PCIe 4.0 x8, |
| 5 PCIe 4.0 x16 |
| M.2 | Key: M-Key |
| Form Factor: 2280/22110 |
| M.2 Interface: 2 PCIe 4.0 x4, RAID 0 & 1 |
| Operating Environment |
| Operating Temperature Range | 10°C - 35°C (50°F - 95°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
