| Add-on Card |

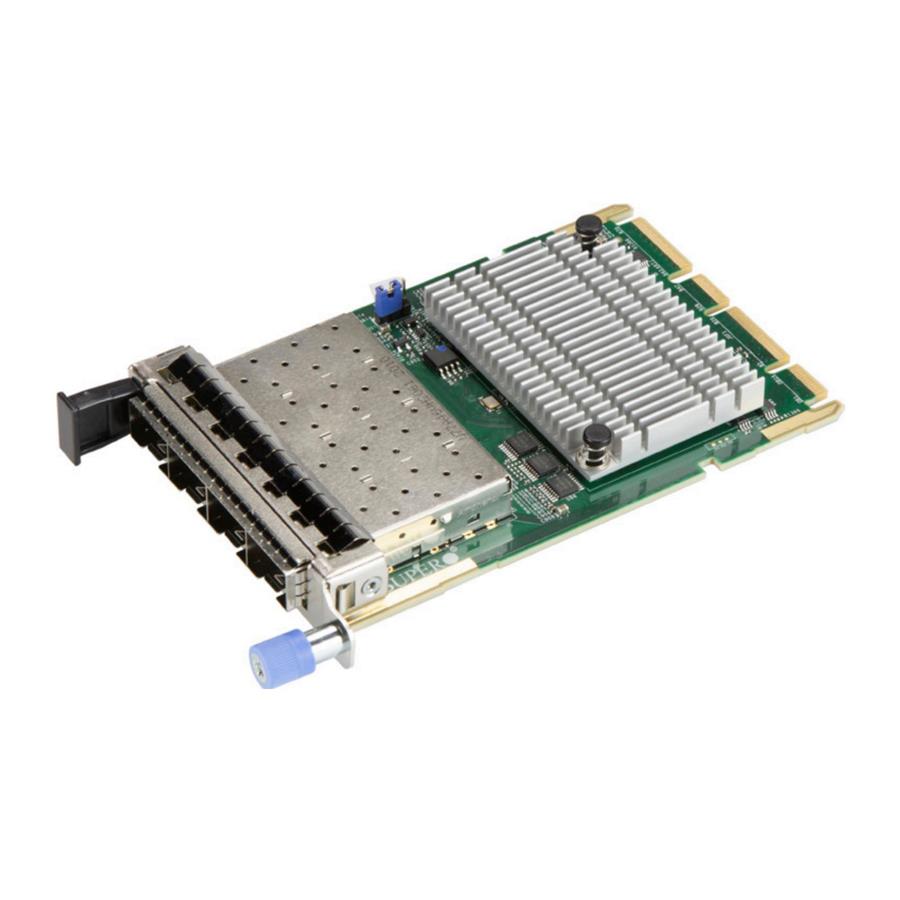

| Add-on Card | The Supermicro® Advanced I/O Module (AIOM) is the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The 10GbE adapter AOC-ATG-i4S(M/G) is a flexible and scalable 10GbE solution providing 4 SFP+ ports. Based on the Intel® XL710-BM1 network controller with performance-enhancing features and power management technologies, the AOC-ATG-i4S(M/G) provides a quality networking choice for data centers while reducing CPU utilization and power consumption. With the added NC-SI feature, this adapter can also function as a secure networking port for server remote management. To order, contact your distributor. This product is only available through Supermicro. |
| Compliance |
| RoHS | RoHS Compliant 6/6 |
| Specifications |
| Networking Features: | IEEE 802.3ad, 802.1AX Link Aggregation |
| IEEE 802.1Q VLAN |
| MSI and MSI-X support |
| Intel® Flow Director |
| Jumbo Frames (up to 9.5KB) |
| IEEE 802.3x Flow Control |
| Teaming support |
| Checksum Offload (IPv4/IPv6, SCTP, TCP, UDP, Tx/Rx) |
| Virtualization Features: | Virtual Machine Devices queues (VMDq) |
| Single-Root I/O Virtualization (SR-IOV) |
| VLAN |
| VXLAN and NVGRE |
| GENEVE |
| Management Features: | NC-SI for remote management |
| Asset Management support with thermal sensor |
| iSCSI remote boot |
| PXE remote boot |
| Power Savings: | ACPI compliant power management |
| Energy Efficient Ethernet (IEEE 802.3az) |
| PCI Express Active State Power Management (ASPM) |
| OS Support: | Windows® Server |
| FreeBSD |
| Linux RHEL |
| Linux SLES |
| Linux Ubuntu |
| Linux CentOS |
| VMware |
| Cable Support: | SFP+ direct attach twin-axial copper cables up to 5m |
| Fiber-optic cables (with required optional SFP+ transceivers) |
| Power Consumption (Max): | AOC-ATG-i4S: 7W |
| Operating Conditions: | Storage humidity: 90% non-condensing relative humidity at 35°C |
| Storage condition: -40°C to 70°C (-40°F to 158°F) |
| Physical Dimensions: | PCB dimensions: 76mm x 115mm (W x D) |
| Advanced I/O Module (AIOM) Form Factor |
| Downloads |
| User's Guide | [ https://www.supermicro.com/about/policies/disclaimer_manuals.cfm?url=/manuals/other/AOC-ATG-i4S_i4SM_i4SG.pdf ] |
| Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-ATG-i4S_i4SM_i4SG.pdf ] |
| Driver | Choose the latest CDR-NIC folder, and then click on Intel folder for driver [ https://www.supermicro.com/wdl/Networking_Drivers/ ] |
| Driver CD | Click on the latest CDR-NIC ISO file to download [ https://www.supermicro.com/wdl/Networking_Drivers/ ] |
