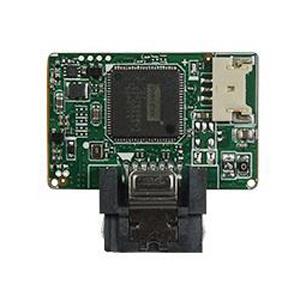

Innodisk DESSL-64GD09BCADCA-B051B SATADOM 64GB MLC Low Profile - MEM-IDSAVM8A-064G - SATADOM-SL 3ME V2 Series
• Built-in Pin 8 power supply
• Innovative Firmware Algorithm
• DRAM-less, 100% data integrity
• High IOPS to reduce boot up timing
64GB SATADOM SL 3ME3 V2 MLC Low Profile, Pin8 VCC, No housing - Supermicro P/N MEM-IDSAVM8A-064G - OEM
Innodisk Serial ATA Disk on Module (SATADOM) supports SATA III standard (6.0Gb/s) interface with excellent performance, and SATADOM-SL 3ME V2 is designed as the smallest form factor size that could enhance compatibility with various design applications.
The innovative Pin 8 uses the SATA connector itself as a power supply to drive the device without external cables. It could be connected directly to the SATA on-board socket on the customers’ system without an additional power cable. Besides, the booting time for operation and the power consumption is less than hard disk drive (HDD), and can work under harsh environment compile with ATA protocol, no additional drives are required, and the SSD can be configured as a boot device or data storage device.
Features
Built-in Pin 8 power supply
Best boot drive solution for server and embedded system
SATA 6Gb/s interface
High IOPS to reduce boot up timing
DRAM-less, 100% data integrity
Innovative Firmware Algorithm
Anti-vibration mechanical design
Built-in iData Guard
Extra Specifications for Innodisk DESSL-64GD09BCADCA-B051B SATADOM 64GB MLC Low Profile - MEM-IDSAVM8A-064G - SATADOM-SL 3ME V2 Series
| Main Specifications | ||
| Device Type | SATADOM | |
| Capacity | 64GB | |
| Form Factor | Internal | |
| Interface | SATA III 6.0 Gb/s | |
| Supported Flash Memory | Flash MLC | |
| Type | Vertical | |
| Pin Connector | 8 | |
| Performance | ||
| Read | Sequential Read (MB/sec, max.): 200 | |
| Write | Sequential Write (MB/sec, max.): 80 | |
| Power | ||
| Power Consumption | 1.8W (5V x 370mA) | |
| Environmental Parameters | ||
| Operating Temperature | Standard Grade: 0°C ~ +70°C, Industrial Grade: -40°C ~ +85°C | |
| Shock | 1500G @ 0.5ms | |
| Min Storage Temperature | -55C ~ +95C | |
| Vibration | 20G @7~2000Hz | |
| Miscellaneous | ||
| Features | ATA Security, S.M.A.R.T. | |
| MTBF | 3 million hours | |
