- Innodisk DESML-B56D08BCAQCA-B051B SATADOM 256GB MLC Low Profile - MEM-IDSAVM8A-256G - SATADOM-ML 3ME3 V2 Series

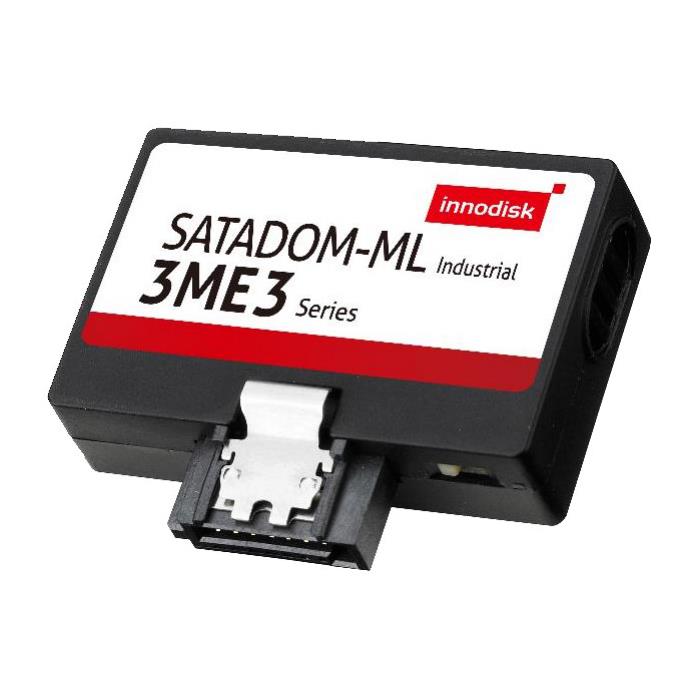

Innodisk DESML-B56D08BCAQCA-B051B SATADOM 256GB MLC Low Profile - MEM-IDSAVM8A-256G - SATADOM-ML 3ME3 V2 Series
Zero mechanical interference
iSMART disk health monitoring
Intelligent error recovery system
Anti-vibration mechanical design
SATADOM 256GB ML 3ME3 V2 MLC Low Profile, Pin8 VCC, No housing - Supermicro P/N MEM-IDSAVM8A-256G - OEM
Innodisk Serial ATA Disk on Module (SATADOM) supports SATA III standard (6.0Gb/s) interface with excellent performance, and SATADOM-ML 3ME3 is designed as the smallest form factor size that could enhance compatibility with various design applications. Particularly the 7th pin of standard SATA 7pin connector can optionally be the built-in power VCC pin.
Innodisk SATADOM-ML 3ME3 effectively reduces the booting time of operation system and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.
Features
Best boot drive solution for server and embedded system
SATA 6Gb/s interface
High IOPS to reduce boot up timing
Built-in Pin 7 power supply
Intelligent error recovery system
Zero mechanical interference
Anti-vibration mechanical design
iSMART disk health monitoring
Extra Specifications for Innodisk DESML-B56D08BCAQCA-B051B SATADOM 256GB MLC Low Profile - MEM-IDSAVM8A-256G - SATADOM-ML 3ME3 V2 Series
| Main Specifications | ||
| Device Type | SATADOM | |
| Capacity | 256GB | |
| Form Factor | Internal | |
| Interface | SATA III 6.0 Gb/s | |
| Supported Flash Memory | Flash MLC | |
| Type | Vertical | |
| Pin Connector | Built-in Pin 7 power supply | |
| Performance | ||
| Read | Sequential Read (MB/sec, max.): 400 | |
| Write | Sequential Write (MB/sec, max.): 140 | |
| Power | ||
| Power Consumption | 2A (5V x 400mA) | |
| Environmental Parameters | ||
| Operating Temperature | Standard Grade: 0°C ~ +70°C, Industrial Grade: -40°C ~ +85°C | |
| Min Storage Temperature | -55°C ~ +95°C | |
| Miscellaneous | ||
| Features | Thermal Sensor, H/W Write Protect, Pin 7 Power, S.M.A.R.T., ATA Security | |
| MTBF | 3 million hours | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | InnoDisk |
| Type of Support: | FULL |
| Phone No.: | 510-770-9421 |
| URL: | Click here for Manufacturer Website |
