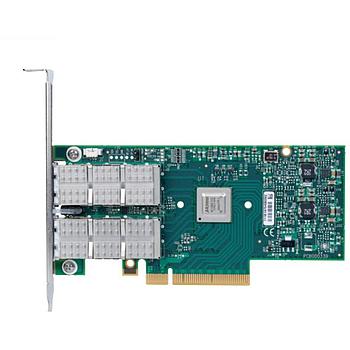

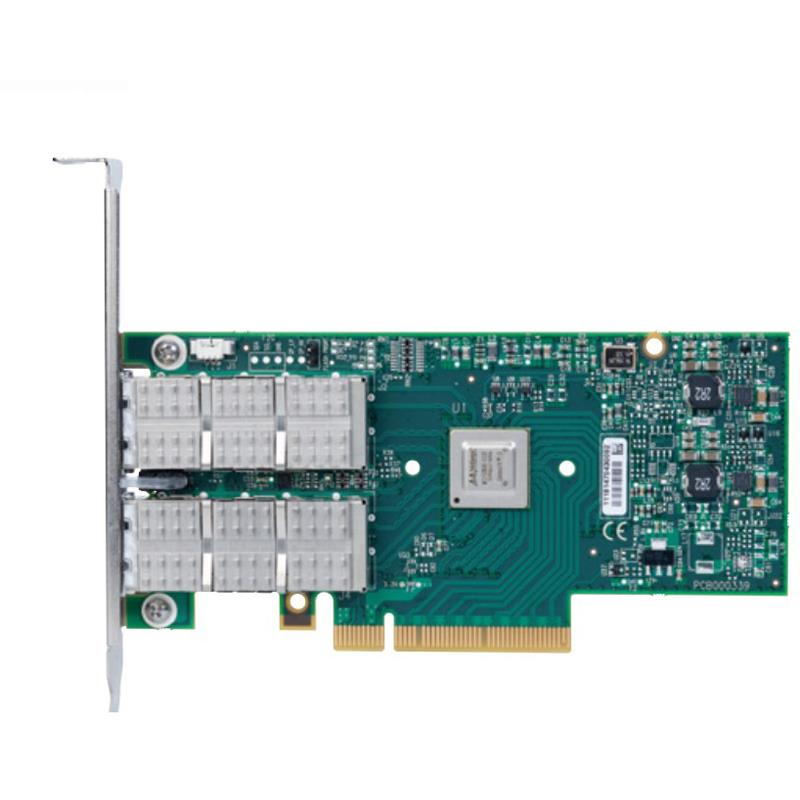

Supermicro AOC-MCX354A-FCBT-HFT ConnectX-3 VPI Dual-Port QSFP FDR IB Network Adapter
ConnectX-3 delivers low latency, high bandwidth
QSFP to SFP+ connectivity through QSA module
Supports Windows, Linux, VMware, Citrix XenServer
Dual-Port Adapters with Virtual Protocol Interconnect
ConnectX-3 VPI Dual Port QSFP FDR IB Network Adapter - Mellanox MCX354A-FCBT
Dual-Port Adapters with Virtual Protocol Interconnect
ConnectX-3 adapter cards with Virtual Protocol Interconnect (VPI) supporting InfiniBand and Ethernet connectivity provide the highest performing and most flexible interconnect solution for PCI Express Gen3 servers used in Enterprise Data Centers, High-Performance Computing, and Embedded environments.
Benefits
One adapter for InfiniBand, 10/40/56 Gig Ethernet or Data Center Bridging fabrics
World-class cluster, network, and storage performance
Guaranteed bandwidth and low-latency services
I/O consolidation
Virtualization acceleration
Power-efficient
Scales to tens-of-thousands of nodes
Key Features
Virtual Protocol Interconnect
1us MPI ping latency
Up to 56Gb/s InfiniBand or 40/56 Gigabit Ethernet per port
Dual-Port
PCI Express 3.0 (up to 8GT/s)
CPU offload of transport operations
Application offload
GPU communication acceleration
Precision Clock Synchronization
End-to-end QoS and congestion control
Hardware-based I/O virtualization
Ethernet encapsulation (EoIB)
RoHS-R6
Extra Specifications for Supermicro AOC-MCX354A-FCBT-HFT ConnectX-3 VPI Dual-Port QSFP FDR IB Network Adapter
| Main Specifications | ||
| Device Type | Network adapter - 2 ports | |
| Form Factor | Plug-in Card | |
| Interface (Bus) Type | PCIe 3.0 x8 8GT/s | |
| Dimensions (WxDxH) | 14.2cm x 6.9cm | |
| PCI Specification Revision | PCIe Base 3.0 compliant, 1.1 and 2.0 compatible | |
| 2.5, 5.0, or 8.0GT/s link rate x8 – Auto-negotiates to x8, x4, x2, or x | ||
| PCIe Base 3.0 compliant, 1.1 and 2.0 compatible | ||
| Support for MSI/MSI-X mechanisms | ||
| Host Connectivity | Interoperable with InfiniBand or 10/40 Ethernet switches. Interoperable with 56GbE Mellanox Switches, Passive copper cable with ESD protection, Powered connectors for optical and active | |
| InfiniBand | IBTA Specification 1.2.1 compliant, Hardware-based congestion control, 16 million I/O channels, 256 to 4Kbyte MTU, 1Gbyte messages | |
| CPU Offloads | RDMA over Converged Ethernet, TCP/UDP/IP stateless offload, Intelligent interrupt coalescence | |
| Networking | ||
| Enhanced InfiniBand | Hardware-based reliable transport, Collective operations offloads, GPU communication acceleration, Hardware-based reliable multicast, Extended Reliable Connected transport, Enhanced Atomic operations | |
| Ethernet | IEEE Std 802.3ae 10 Gigabit Ethernet, IEEE Std 802.3ba 40 Gigabit Ethernet, IEEE Std 802.3ad Link Aggregation and Failover, IEEE Std 802.3az Energy Efficient Ethernet, IEEE Std 802.1Q, .1p VLAN tags and priority, IEEE Std 802.1Qau Congestion Notification, IEEE P802.1Qaz D0.2 ETS, IEEE P802.1Qbb D1.0 Priority-based Flow Control, Jumbo frame support (9600B) | |
| Hardware-based I/O Virtualization | Single Root IOV, Address translation and protection, Dedicated adapter resources, Multiple queues per virtual machine, Enhanced QoS for vNICs, VMware NetQueue support | |
| Protocols | Open MPI, OSU MVAPICH, Intel MPI, MS, MPI, Platform MPI, TCP/UDP, EoIB, IPoIB, RDS, SRP, iSER, NFS RDMA, uDAPL | |
| Software / System Requirements | ||
| OS Supports | Citrix XenServer 6.1, Novell SLES, Red Hat Enterprise Linux (RHEL), and other Linux distributions, Microsoft Windows Server 2008/2012, OpenFabrics Enterprise Distribution (OFED), Ubuntu 12.04, VMware ESXi 4.x and 5.x | |
| Miscellaneous | ||
| Cables Required | QSFP to SFP+ connectivity through QSA module | |
| RoHS | Yes | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
