- Supermicro AS-2014S-TR 2U Barebone Single AMD EPYC 7002/7003 Series Processor
Supermicro AS-2014S-TR 2U Barebone Single AMD EPYC 7002/7003 Series Processor
• Backup storage
• Web or Database Servers
• Compact Network Appliance
Barebone A+ 2U Rackmount SuperServer Single AMD EPYC 7002/7003 Series, System on Chip, Up to 2TB in 8 DIMM Slots, 12x 3.5in SATA3, 2x Gigabit LAN Ports, 920W Redundant Power Supply (CSE-LA26TS-R920LPP1 + H12SSL-i) - AS -2014S-TR
This product is no longer available.
1. Single AMD EPYC™ 7002/7003 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
3. 5 PCI-E 4.0 x16 LP slots, 2 PCI-E 4.0 x8 LP slots
4. 2x 1GbE LAN ports, 1 dedicated IPMI LAN port
5. 12 Hot-swap 3.5" SATA3 drive bays, 2 rear Hot-swap 2.5" SATA3 Drive bays via optional kit M.2 Interface : 2 PCI-E 4.0 x4 M.2 Form Factor : 2242, 2260, 2280, 22110 M.2 Key : M-Key
6. 6 USB 3.0 ports (4 rear, 2 via header), 1 VGA, 1 COM, ASPEED AST2500 BMC graphics
7. 920W Redundant Platinum Level Power Supplies (Full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-2014S-TR 2U Barebone Single AMD EPYC 7002/7003 Series Processor
| Motherboard | ||
| Motherboard | Super H12SSL-i | |
| Processor/Chipset | ||
| CPU | Socket SP3 | |
| Supports CPU TDP up to 280W | ||
| Single AMD EPYC™ 7002/7003 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) | ||
| Cores | Up to 64 Cores | |
| System Memory | ||
| Memory Capacity | 8 DIMM slots | |
| Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM | ||
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| SATA | SATA3 (6Gbps) | |
| Network Controllers | Broadcom BCM5720 Gigabit Ethernet Controller | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Video | ASPEED AST2500 BMC | |
| Input / Output | ||
| SATA | 8 SATA3 (6 Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2x 1GbE LAN ports | ||
| USB | 6 USB 3.0 ports (4 rear, 2 via header) | |
| COM | 1 COM Port (rear) | |
| Video | 1 VGA port | |
| System BIOS | ||
| BIOS Type | AMI 256Mb SPI Flash EEPROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SUM | ||
| Super Doctor 5 | ||
| IPMI 2.0 , KVM with dedicated LAN | ||
| Power Configurations | ACPI / APM Power Management | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| 3 Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-LA26TS-R920LPP1 | |
| Dimensions and Weight | ||
| Width | 17.2" (437mm) | |
| Height | 3.5" (89mm) | |
| Depth | 25.5" (648mm) | |
| Package | 11.4" (H) x 26.7" (W) x 34.5" (D) | |
| Weight | Net Weight: 33.5 lbs (15.2 kg) | |
| Gross Weight: 60 lbs (27.2 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Network activity LEDs | |
| Power status LED | ||
| HDD activity LED | ||
| Universal Information (UID) LED | ||
| Expansion Slots | ||
| PCI-Express | 5 PCI-E 4.0 x16 LP slots | |
| 2 PCI-E 4.0 x8 LP slots | ||
| Drive Bays | ||

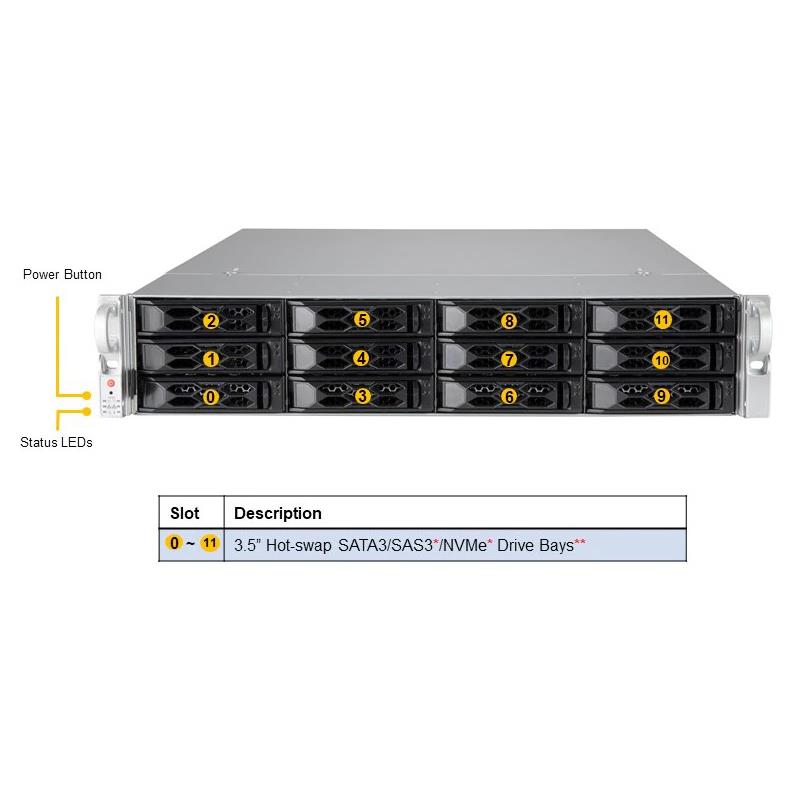

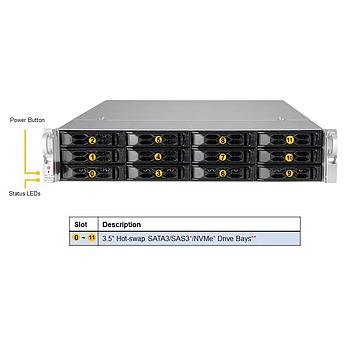

| Hot-swap | 12 Hot-swap 3.5" SATA3 drive bays | |
| 2 rear Hot-swap 2.5" SATA3 drive bays via optional kit | ||
| Backplane | ||
| Backplane | 2U SAS/SATA/NVMe HDD Backplane | |
| System Cooling | ||
| Fans | 3x 80x80x38mm middle cooling fans | |
| Power Supply | ||
| Power Supply | 1U 920W redundant power supply | |
| Total Output Power and Input | 920W with Input 100 - 127Vac | |
| 920W with Input 200 - 240Vac | ||
| 920W with Input 200 - 240Vdc | ||
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| AC Input Frequency | 50-60Hz | |
| +12V | Max: 75A / Min: 0A (100Vac-127Vac) | |
| Max: 75A / Min: 0A (200Vac-240Vac) | ||
| +5Vsb | Max: 4A / Min: 0A | |
| Output Type | Backplanes (connector) | |
| Certification | ||
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | A+ Server 2014S-TR (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-H12SSL-i | 1 | Super H12SSL-i Motherboard | |
| Motherboard / Chassis | CSE-LA26TS-R920LPP1 | 1 | 2U Chassis | |
| Backplane | BPN-SAS3-LA26A-N12 | 1 | 2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS | |
| Cable 1 | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Cable 2 | CBL-SAST-1234-100 | 1 | Slimline x4 (STR) to 4x SATA,35CM,SB 50CM,Xover,100 OHM, | |
| Cable 3 | CBL-SAST-1261-100 | 1 | Slimline x8 (STR) to 2x Slimline x4 (STR),60/60CM,100 O | |
| Parts | MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. | |
| Rail Set | MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2";W | |
| Heatsink / Retention | SNK-P0063P | 1 | 2U Passive CPU Heat Sink for AMD Socket SP3 Processors | |
| *Power Supply | PWS-920P-1R2 | 2 | 1U, platinum efficiency,920W,AC input:100-127/200-240Vac,HF, | |
| *Power Distributor | PDB-PT826-L8824 | 1 | 2U cost effective PDB support up to 1200W.,RoHS | |
| *Cable 3 | CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF | |
| *FAN 1 | FAN-0181L4 | 3 | 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan | |
| *Drive Tray(s) | MCP-220-00184-0B | 12 | Black gen-9 tool-less cost-effective 3.5 | |
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Rear 2.5" Drive Bay Kit | MCP-220-82616-0N | $ 112.00 | 0 | 12G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B) | ||
| TPM | AOM-TPM-9655V | $ 43.00 | 0 | Vertical TPM with Infineon 9655 TCG 1.2 | ||
| TPM | AOM-TPM-9665V | $ 43.00 | 0 | AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
