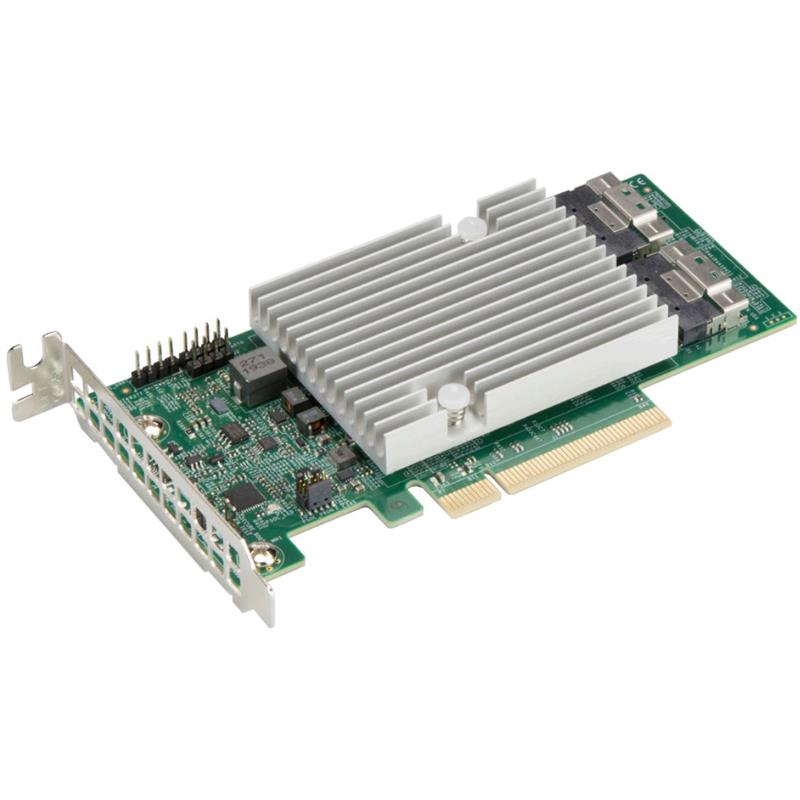

Supermicro AOC-S3816L-L16IT 16-Port SAS3 12Gb/s & SATA 6GB/s PCIe Gen4 HBA, Broadcom 3816

The Supermicro SAS AOC-S3816L-L16iT internal controller card features 16 internal SAS3 ports with two internal SlimSAS connectors. They utilize a SAS3 controller chip and feature a 1.2GHz processor. The AOC-S3816L-L16iT can provide support for server systems of up to 122 devices. The AOC-S3816L-L16iT  is streamlined to meet the growing demand for increased data throughput and scalability requirements across the enterprise-class server platforms. It is a low-power and cost-effective near-line storage solution that delivers maximum performance and reliability.

Features

• 1.2GHz processor

• Broadcom 3816 SAS controller

• Host PCIe Gen4 low-profile card

• 16 internal ports, 12Gb/s per port

• HBA supports up to 122 devices with an expander

• Supports 12GB/s, 6GB/s, and 3GB/s SAS data transfer rates

• Supports 6GB/s and 3GB/s SATA data transfer rates

• Supports MCTP over PCIe, HW Secure Boot

• Supports HW Secure Boot

• Enlarged venting hole mounting bracket for improved airflow

• Ambient operating temperature: 10°C - 55°C
