| Main Specifications |

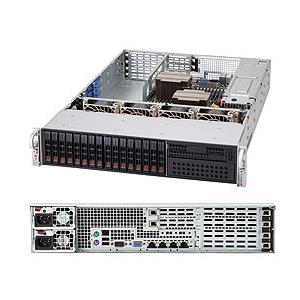

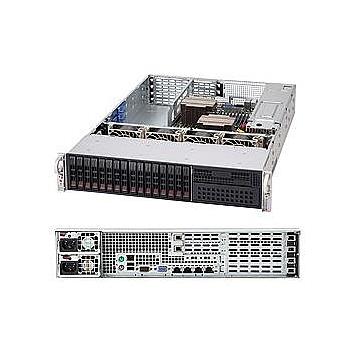

| Device Type | SuperChassis 219A-R920WB |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 26.93" (684 mm) |
| Color | Black |
| Form Factor | 2U chassis supports Supermicro Proprietary WIO MB: Max. MB size - 13.68" x 16.5" |
| Weight | 52 lbs (23.6 kg) |
| Processor Support |
| Processor Support | Supports dual, single Intel / AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 3x low-profile expansion slots |
| 4x Full-height, Full-length Expansion Slots |
| Drive Bays |
| Hot-swap | 16x 2.5" SAS / SATA Hot-swap drive trays - SAS or enterprise SATA HDD only recommended |
| Peripheral Bays | 1x 5.25" peripheral Drive Bay |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED, Power Fail LED |
| System Cooling |
| Fans | FAN-0126L4 |
| 4x 80mm high-performance fans - Optional extra 3x 80mm fans support cooling redundancy for E-ATX motherboards |
| Peripheral Drives |
| CD-ROM / DVD-ROM | 1x Slim DVD-ROM Drive (option) - 1x Front USB + COM tray (option) |
| SAS / SATA Backplane |
| SAS / SATA Backplane | 2U Direct Attached Backplane, features: 3Gb/6Gb support, SES-2 Enclosure Management Support, SAS/SATA support, Four SFF 8087 connectors |
| Operating Environment (System) |
| Operating Temperature Range | Non-Operating Humidity Range 5 - 95% non-condensing |
| Non-Operating Temperature Range -40 - 70C (-40 - 158F) |
| Humidity Range 8 - 90% non-condensing |
| Operating Temperature Range 10 - 35C (50 - 95F) |
| Power Supply |
| Certification | 80PLUS Platinum Certified |
| Power Supply | 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C |
| Power Supply: PWS-920P-1R / Power Distributor: PDB-PT213-S8824 |
| Regulatory Safety / EMC | USA - UL listed, Canada - CUL listed, Germany - TUV Certified, EN 60950/IEC 60950-Compliant, CB Report, CCC Certification |
| Standard Parts List |
| Accessory | MCP-290-00007-01 |
| MCP-420-21901-0N / MCP-280-00018-0N / MCP-320-82902-0N |
| Chassis | CSE-219A-R920WB |
| Rear Window | MCP-240-00104-0N |
| Parts List - (Items Included) |
| Air Shroud | MCP-310-29002-0N |
| Backplane | BPN-SAS-213A |
| Drive Trays | MCP-220-00023-01 / MCP-290-00079-0B / MCP-220-00047-0B |
| Mounting Rails | MCP-290-00053-0N |
| Parts List |
| Cables | CBL-0071 |
