- Supermicro X12SPM-TF Motherboard Micro ATX Single Socket LGA-4189 (Socket P+) Intel Xeon Scalable 3rd Generation Processors

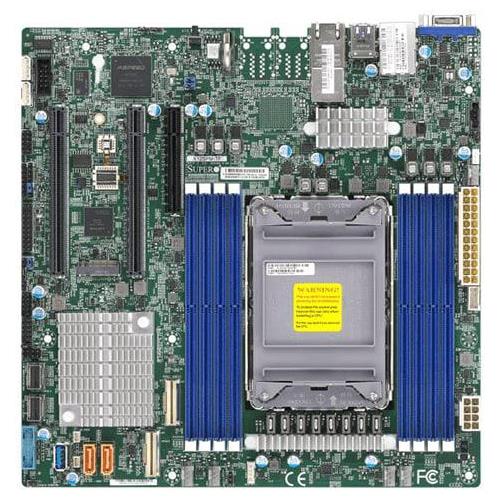

Supermicro X12SPM-TF Motherboard Micro ATX Single Socket LGA-4189 (Socket P+) Intel Xeon Scalable 3rd Generation Processors
Supports Intel Xeon Scalable 3rd Generation Processors
Up to 2TB DDR4-3200MHz LRDIMM memory in 8 DIMM slots
Intel C621A controller for 10 SATA3 (6 Gbps) ports, RAID 0,1,5,10
On-Board: 2 RJ45 10GBase-T ports, 2 SATA DOM power connector support
Motherboard Micro ATX, Ice Lake LGA-4189 SKT-P+, up to 205W TDP, C621A Chipset, up to 2TB in 8 DIMM slots
1. Supports 12V DC power input
2. 5 USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)
3. 3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
4. Intel® C621A
5. Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots
6. 4x NVMe port PCIe 4.0 x4 via SlimSAS connector
7. 1 PCIe 4.0 x8, 2 PCIe 4.0 x16, 2 PCIe 4.0 x8 SlimSAS connectors M.2 Interface: 1 SATA/PCIe 3.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-Key
8. Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
9. Dual LAN with 10GBase-T with Intel® X550
Extra Specifications for Supermicro X12SPM-TF Motherboard Micro ATX Single Socket LGA-4189 (Socket P+) Intel Xeon Scalable 3rd Generation Processors
| System Memory | ||
| DIMM Sizes | LRDIMM: 64GB, 128GB | |
| RDIMM: 8GB, 16GB, 32GB, 64GB | ||
| LRDIMM 3DS: 128GB, 256GB | ||
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| Memory Capacity | 8 DIMM slots | |
| Up to 2TB Intel® Optane™ Persistent Memory 200 Series | ||
| Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz | ||
| Memory Type | ECC , DDR4 LRDIMM (3DS), RDIMM (3DS) | |
| On-Board Devices | ||
| Chipset | Intel® C621A | |
| IPMI | ASPEED AST2600 BMC | |
| Network Controllers | Dual LAN with 10GBase-T with Intel® X550 | |
| Graphics | 1 ASPEED AST2600 BMC port(s) | |
| SATA | Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| Input / Output | ||
| SATA | 10 SATA3 (6Gbps) port(s) | |
| LAN | 2 RJ45 10GBase-T ports | |
| USB | 6 USB 2.0 port(s) (4 via header; 2 rear) | |
| 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A) | ||
| DOM | 2 SATA DOM (Disk on Module) power connector support | |
| Video Output | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 header) | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| BIOS Features | ACPI 6.0 | |
| RTC (Real Time Clock) Wakeup | ||
| SMBIOS 3.0 or later | ||
| Management | ||
| Software | SuperDoctor® 5, NMI, SUM , KVM with dedicated LAN, SPM , Intel® Node Manager, IPMI2.0 , Watchdog | |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management | |
| PC Health Monitoring | ||
| Voltage | VBAT, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 5 -fan status, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V | |
| Temperature | CPU thermal trip support | |
| PECI | ||
| LED | UID/Remote UID | |
| CPU / System Overheat LED | ||
| Suspend static indicator LED | ||
| Other Features | WOL, UID, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management | |
| FAN | Pulse Width Modulated (PWM) fan connectors | |
| 5 fans with tachometer status monitoring | ||
| PWM fan speed control | ||
| System level control | ||
| 5x 4-pin fan headers (up to 5 fans) | ||
| Product SKUs | ||
| Product SKUs | MBD-X12SPM-TF | |
| Physical Stats | ||
| Form Factor | microATX | |
| Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP | ||
| Core | Up to 40 cores | |
| Expansion Slots | ||
| PCIe | 2 PCIe 4.0 x16, | |
| 1 PCIe 4.0 x8 | ||
| M.2 | Key: M-Key | |
| Form Factor: 2280, 22110 | ||
| M.2 Interface: 1 SATA/PCIe 3.0 x4 | ||
| Operating Environment | ||
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) | |
| Non-Operating Temperature Range | -20°C - 60°C (-4°F - 140°F) | |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) | |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
