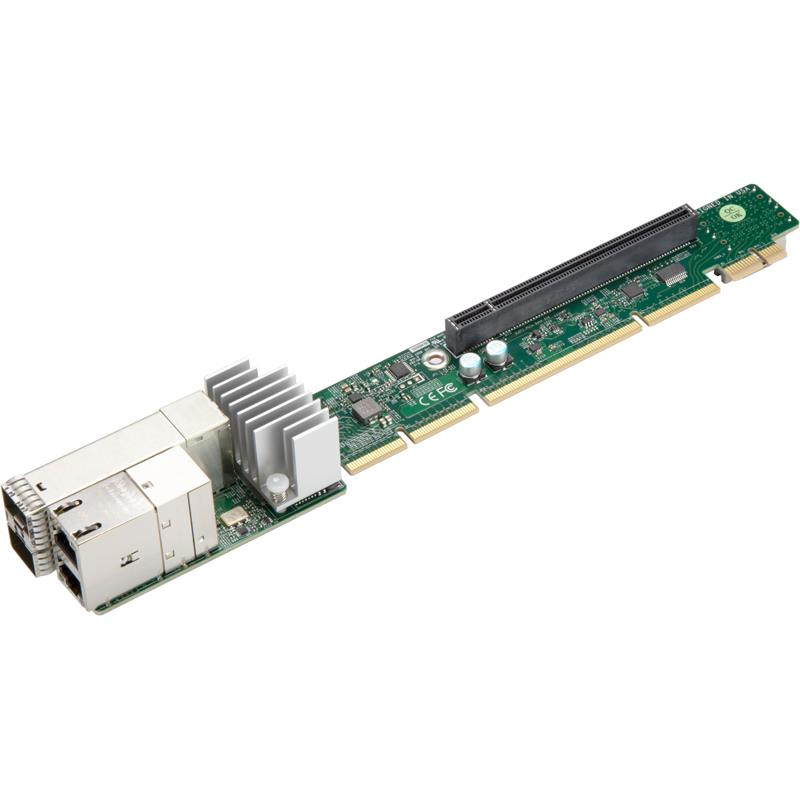

Supermicro AOC-URG4N4-I4XTS Ultra Riser Card 1U with 2-Port 10GBase-T RJ45 & 2-Port 10G SFP+

  • Intel X710-TM4 Ethernet Controller

  • 1U Networking Ultra Riser cards for 1U Ultra systems

  • Supports RJ-45 Category 6 and 6A cables (RJ45 ports)

  • Up to 4x 10Gbps ports: 2x RJ45 and 2x SFP+ connectors

Ultra Riser Card 1U with 2-Port 10GBase-T RJ45 & 2-Port 10G SFP+


    289.00289.00289.0USD

    289.00

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    Supermicro Networking Ultra Riser Cards for Supermicro Ultra systems

    Ultra Riser Cards are the most advanced Riser Cards in the market. They provide PCI-E 4.0 expansion slots for the latest Gen. The AOC-URG4N4-I4XTS have up to 4 ports 10GbE networking solution based on Intel Intel X710-TM4, an internal PCI-E 4.0 x16 slot, and 4 NVMe ports to provide the flexibility of configuring Supermicro Ultra systems.


    Key Features

    • 1U Networking Ultra Riser cards for 1U Ultra systems

    • Up to 4x 10Gbps ports: 2x RJ45 and 2x SFP+ connectors

    • Intel X710-TM4 Ethernet Controller

    • One internal PCI-E 4.0 x16 slot

    • Network Virtualization: VXLAN and NVGRE

    • Thermal sensor support

    • NC-SI for Remote Management

    • Supports RJ-45 Category 6 and 6A cables (RJ45 ports)

    • Supports both Direct Attach Copper and Fiber Cables with optional transceivers (SFP+ ports)

    • RoHS compliant 6/6

    Extra Specifications for Supermicro AOC-URG4N4-I4XTS Ultra Riser Card 1U with 2-Port 10GBase-T RJ45 & 2-Port 10G SFP+

    Main Specifications
    Device TypeUltra Riser
    Form Factor1U Ultra Riser
    Interface (Bus) Type1x PCI-E 4.0 x16
    SupportsSupermicro Ultra systems
    Power
    Power Consumption14W (+75W for PCI-E if used)
    Networking
    NetworkingIEEE 802.3ad, 802.1AX Link Aggregation, IEEE 802.1Q VLAN, MSI and MSI-X support, Intel Flow Director, Jumbo Frames (up to 9.5KB), IEEE 802.3x Flow Control, Teaming support, Checksum Offload (IPv4/IPv6, SCTP, TCP, UDP, Tx/Rx)
    Virtualization FeaturesVirtual Machine Devices queues (VMDq), Single-Root I/O Virtualization (SR-IOV), VLAN, VXLAN and NVGRE, GENEVE
    Management FeaturesThermal sensor support, NC-SI for remote management, Preboot eXecution Environment (PXE)
    Miscellaneous
    Cables RequiredSFP+ direct attach twin-axial copper cables up to 5m, Fiber-optic cables (with required optional SFP+ transceivers), RJ-45 Category-6 up to 55m; Category-6A up to 100m
    Expansion / Connectivity
    Expansion Slots Total (Free)1x PCI-E 4.0 x16 (internal)
    Expansion / Connectivity2x RJ45, 2x SFP+, 4 (2x Slim SAS x8)
