| Main Specifications |

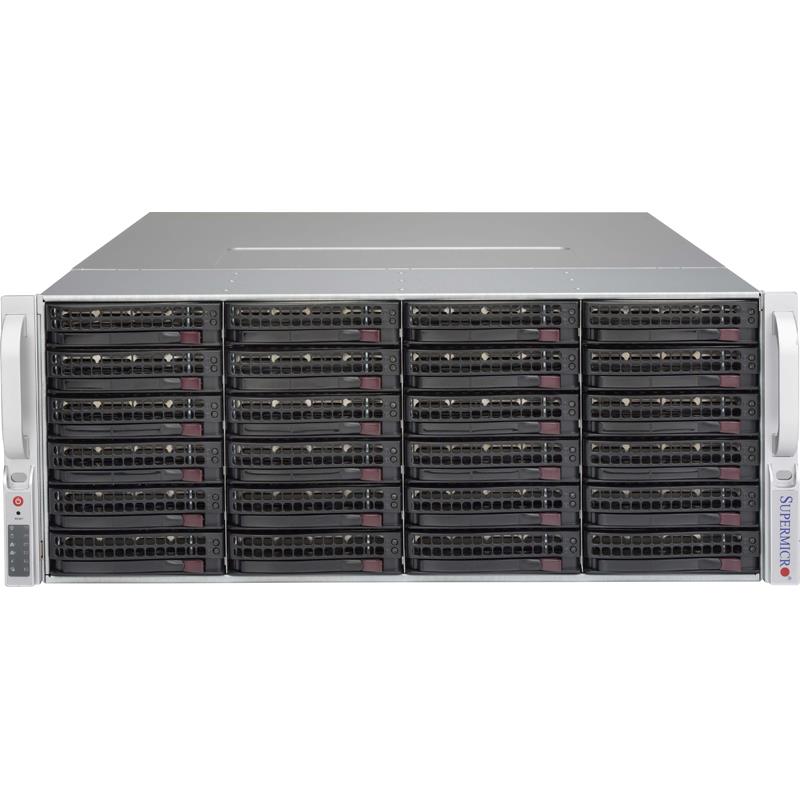

| Device Type | SuperChassis 847BA-R1K23LPB |
| Form Factor | 4U chassis |
| Supported Motherboards | Supports for maximum motherboard sizes: 13.68" x 13", E-ATX, ATX |
| Dimensions (WxDxH) | Height 7" (178 mm) x Width 17.2" (437 mm) x Depth 27.5" (699 mm) |
| Weight | 91 lbs (41.28 kg) |
| Enclosure Color | Black |
| Processor |
| Compatible Processors | Dual, single Intel / AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 7 low-profile expansion slot(s) |
| Expansion Bays Total (Free) | 36 x 3.5" hot-swap HDD bays for server chassis |
| Peripheral Bay (Free) | Optional 2 x 2.5" hot-swap drive bay |
| SAS/SATA Backplane |
| SAS/SATA Backplane | 12-port 2U SAS 6Gbps direct-attached backplane, support up to 12x 3.5-inch SAS2/SATA3 HDD/SSD |
| 24-port 4U SAS 6Gbps direct-attached backplane, support up to 24x 3.5-inch SAS2/SATA3 HDD/SSD |
| Front Panel |
| Buttons | Power On/Off button, System Reset Button, Unit Identification (UID) button |
| LEDs | 2 Network Activity LEDs, Fan Fail/System Over Heat LED, HDD activity LED, Power Status LED |
| System Cooling |
| Fans | 7 x 8cm hot-swap redundant PWM cooling fan(s) |
| System Monitoring |
| System Monitoring | Chassis intrusion switch |
| Environmental |
| Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Power Supply |
| Power Supply | 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm |
| Certification | 80PLUS Titanium Certified |
| Regulatory Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, UL/CB, UL/CUL |
| Parts List - (Items Included) |
| Backplane | 1x BPN-SAS-826A, 1x BPN-SAS-846A |
| Power Distributor(s) | 1x PDB-PT847-8824 |
| Power Supply Number | 2x PWS-1K23A-1R |
