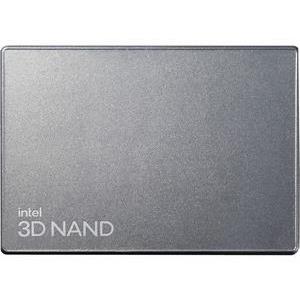

Intel SSDPF2KX076TZ 7.68TB NVMe Solid-State Drive U.2 15mm TLC 1DWPD - D7-P5510 Series

Meeting today’s data center performance, manageability, and I/O requirements across a wide range of workloads.

Architected with 144-layer, TLC, Intel 3D NAND technology, the Intel SSD D7-P5510 offers optimized performance and capacity for all-flash arrays and is designed to advance IT efficiency and data security. The Intel SSD D7-P5510 includes an Intel PCIe 4.0 controller and firmware that brings low latency, enhanced management capabilities, scalability, and critical new NVMe features for Enterprise and Cloud environments.

Improve Performance with Lower Latency

The Intel SSD D7-P5510 delivers predictably fast high performance and can greatly accelerate all-flash arrays. The performance-optimized D7-P5510 brings up to 2X higher sequential read performance,1 50% lower latencies2, and a 50% increase in mixed workload IOPs (70% read, 30% write)3 compared to the previous-generation Intel SSD.

A new TRIM architecture further improves the performance on real-life workload where dataset management commands are used. Optimized TRIM architecture now runs as a background process without interference to workloads, improving performance and QoS during concurrent TRIMs. The TRIM process is improved with reduced write amplification that helps drives meet their endurance goal.

Firmware Enhancements for Drive Performance, IT Efficiency, Data Security, and Manageability

The Intel SSD D7-P5510 includes numerous firmware enhancements specifically designed to improve IT efficiency and data security in an increasingly data-centric world.

• Scatter Gather List (SGL) improves performance by removing the need for data alignment at the host.

• Enhanced SMART monitoring, which reports drive health status without disrupting I/O data flow using an in-band mechanism and out-of-band access.

• Device Self-Test improves customer experience by ensuring devices are operating as expected. Host system can request the storage device (SSD) to perform tests to ensure it is functioning properly including SMART check, Volatile Memory Backup, NVM integrity, Drive life.

• Telemetry makes a wide range of stored data accessible and includes intelligent error tracking and logging. This increases the reliability of finding and mitigating issues and supports accelerated qualification cycles—all of which result in increased IT efficiency.

• Additional security features like TCG Opal 2.0, Configurable Namespace Locking, Sanitize, and Format NVM are supported.

• A Power-Loss imminent (PLI) protection scheme with built-in self-testing guards against data loss if system power is suddenly lost. Coupled with an industry-leading end-to-end data path protection scheme,5 PLI features also enable ease of deployment into resilient data centers where data corruption from system-level glitches is not tolerated.
