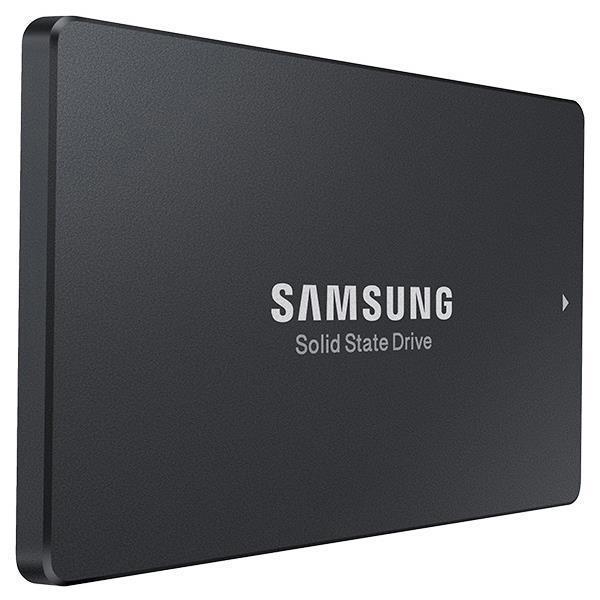

- Samsung MZQL23T8HCLS-00A07 Hard Drive 3.8TB NVMe PCIe 4.0 x4, U.2 2.5in, 7mm, 1DWPD - PM9A3 Series
Samsung MZQL23T8HCLS-00A07 Hard Drive 3.8TB NVMe PCIe 4.0 x4, U.2 2.5in, 7mm, 1DWPD - PM9A3 Series
Offers up to 10 percent lower latency
Samsung V6 (128 Layer) speed is 33% faster
Tremendous performance for Read-Intensive data
Hard Drive 3.8TB NVMe PCIe 4.0 x4, U.2, 7mm, 1DWPD, 2.5in, SED Opal - PM9A3 - OEM
PM9A3: Gen.4 Drives Dynamic Data Traffic
Traditionally, data centers and enterprise storage have represented two separate markets for SSDs. While the former requires storage solutions that are optimized for data center architectures and offer greater efficiency, SSDs for enterprises tend to emphasize special features and robust reliability.
Samsung’s PM9A3 NVMe SSD offers best-in-class PCIe Gen.4 performance, multiple platform efficiencies, a highly scalable design encompassing several form factors, and greater reliability with advanced V-NAND technology. The SSD is specifically designed for the next era of servers, both in data centers and for enterprises in general, meets the needs of servers for mainstream use, and is suitable for the web, applications, and file servers.
Extra Specifications for Samsung MZQL23T8HCLS-00A07 Hard Drive 3.8TB NVMe PCIe 4.0 x4, U.2 2.5in, 7mm, 1DWPD - PM9A3 Series
| Main Specifications | ||
| Device Type | Intel NVMe Hard Drive | |
| Capacity | 3.84TB | |
| Form Factor | U.2 2.5in x 7mm | |
| Interface | PCI Express 4.0 x4 (NVMe) | |
| NAND Flash Memory Type | TLC | |
| Dimensions | 69.85 x 100.2 (WxL, mm) | |
| Performance | ||
| Internal Data Rate | 6900 MBps (read) / 4100 MBps (write) | |
| 4KB Random Read | 1000K IOPS | |
| 4KB Random Write | 180K IOPS | |
| Power | ||
| Power Consumption Operational | Read: 11 W, Write: 13.5 W | |
| Reliability | ||
| Non-Recoverable Errors | 1 in 1017 | |
| Miscellaneous | ||
| MTBF | 2 million hours | |
| Features | TCG Enterprise , NVMe Basic Management Command over SMBus | |
| Warranty: | 5 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | 120 days of overnight replacement |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Samsung |
| Type of Support: | FULL |
| Phone No.: | 800-SAMSUNG |
| URL: | Click here for Manufacturer Website |
