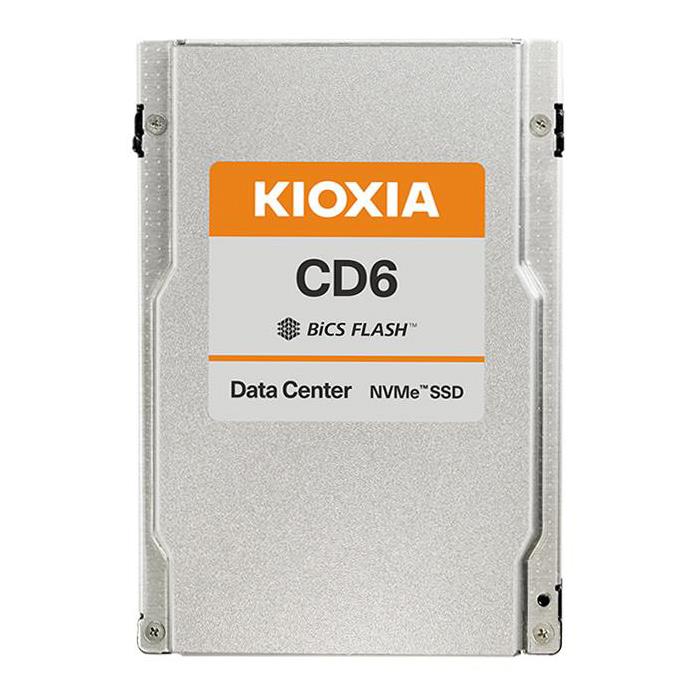

  2. Kioxia KCD6XVUL6T40 Hard Drive 6.4TB NVMe SSD PCIe Generation 4.0 2.5in x 15mm SIE - CD6-V Series
Kioxia KCD6XVUL6T40 Hard Drive 6.4TB NVMe SSD PCIe Generation 4.0 2.5in x 15mm SIE - CD6-V Series

Kioxia KCD6XVUL6T40 Hard Drive 6.4TB NVMe SSD PCIe Generation 4.0 2.5in x 15mm SIE - CD6-V Series

  • Deliver 3DWPD (Drive Writes Per Day) of endurance

  • Featuring 96-layer BiCS FLASHTM 3D TLC memory

  • Well-suited for hyper-scale data center applications

  • Optimized to support a broad range of scale-out applications

Hard Drive 6.4TB SSD NVMe 1.4 PCIe 4.0 2.5-inch 15mm Z-height, Optimized For Scale-out And Cloud Applications, Including Big Data/IoT, Online Transaction Processing, And Virtualization, BiCS FLASH 96-layer 3D TLC 3.0DWPD Sanitize Instant Erase (SIE) CD6-V Series - OEM

This product is no longer available.

Data Center NVMe Mixed-use SSD

  • The CD6-V Series is a mixed-use datacenter NVMe SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization.

  • Built with a PCIe Gen4 x4 interface, the CD6-V Series SSDs deliver consistent performance up to 1M IOPS (random read) and 250 KIOPS (random write), with active power consumption of 13-19 W.

  • Featuring KIOXIA Corporation's 96-layer BiCS FLASHTM 3D TLC memory, CD6-V SSDs deliver 3DWPD (Drive Writes Per Day) of endurance and storage capacities in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.

Extra Specifications for Kioxia KCD6XVUL6T40 Hard Drive 6.4TB NVMe SSD PCIe Generation 4.0 2.5in x 15mm SIE - CD6-V Series

Main Specifications
Device TypeSolid State Drive - Internal - SIE Model
Capacity6.4TB
Form Factor2.5-inch, 15mm Z-height
InterfacePCIe 4.0, NVMe 1.4
Interface Speed64 GT/s (Gen4 x4)
NAND Flash Memory TypeBiCS FLASH TLC
Dimensions (WxDxH)Height 15.0 mm + 0, - 0.5 mm x Width 69.85 ± 0.25 mm x Length 100.45 mm Max
Weight130 g Max.
Performance
Internal Data Rate6200 MBps (read) / 4000 MBps (write)
4KB Random Read1,000,000 IOPS
4KB Random Write250,000 IOPS
Endurance DWPD3
Power
Supply Voltage12 V ± 10%, 3.3 Vaux ± 15%
Power Consumption19 W (Active), 5.0 W (Ready)
Miscellaneous
MTBF2.5 (M hours)
FeaturesPCIe 4.0, NVMe 1.4 specification compliant, Form factor: 2.5-inch, 15mm Z-height, Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH 96-layer 3D TLC, SFF-TA-1001 conformant (U.3), works with Tri-mode controllers and backplanes, Single-port design, optimized for data center class workloads, 6th generation, two-die failure recovery and double parity protection, Consistent performance and reliability for demanding 24x7 environments, Designed for high-density storage deployments, Power loss protection (PLP) and end-to-end data correction
ApplicationsHyperscale, IoT and big data analytics, Online transaction processing (OLTP), (transactional and relational databases), Virtualized environments, Streaming media and content delivery networks
Environmental
Operating EnvironmentTemperature (Operating): 0 °C to 70 °C
Humidity (Operating): 5 % to 95 % R.H.
Vibration (Operating): 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz )
Shock (Operating): 9,800 m/s2 { 1,000 G } ( 0.5 ms duration )

Warranty:5 years
Coverage:Replacement or repair
Average Service Time:1-2 weeks
