• Designed for Supermicro 1U Server
• Supermicro Certified; 80 Plus Platinum
• PMBus 1.2 Support for Remote Management
• Power supply capable of supplying 920W output
920W 1U Redundant High-efficiency Power Supply With PFC and PMBus, 80 Plus Platinum Level Certified - 100-240V AC, 50-60Hz

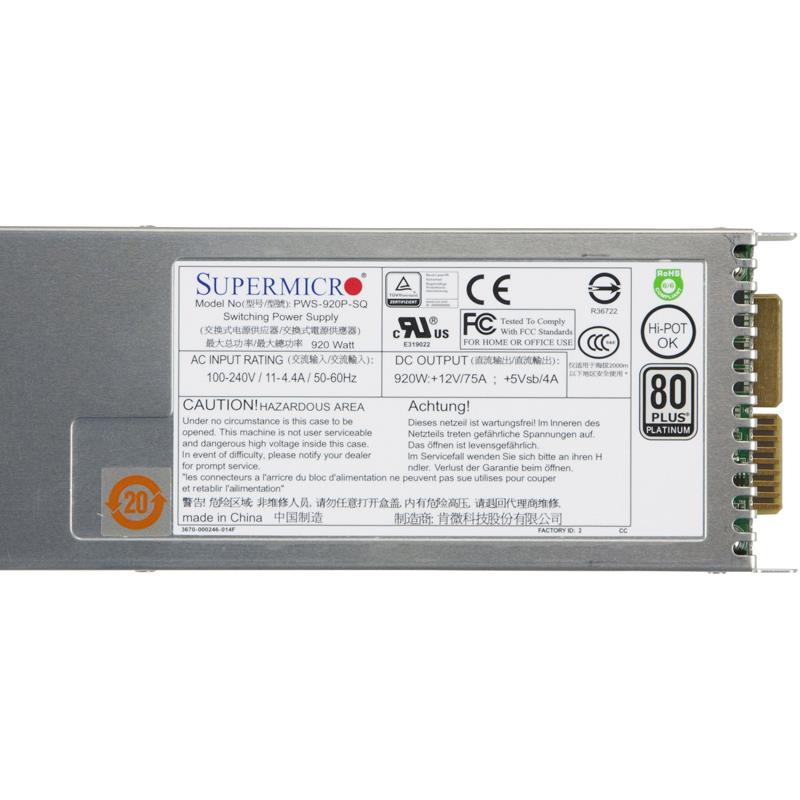

The Supermicro PWS-920P-SQ is an 80 Plus Platinum level redundant power supply capable of supplying 920W output power at 91% efficiency.
Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages and super quiet fans for a more peaceful environment under normal operation.
Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems.
This power supply is designed to not only provide you reliable power to your Supermicro server but also protect it from over-voltage, over-current and short-circuiting via protective circuitry embedded into the unit.
Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 150,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU.
This power supply is redundant to safeguard your system from power failure and allows for hot-swap replacement to eliminate system downtime.
All materials contained comply with RoHS requirements and is certified by Supermicro.
| Main Specifications | ||
| Dimension(s) (WxDxH) | 360 x 76 x 40 mm | |
| Type | Module | |
| Power Device | ||
| Power Provided | 920W | |
| PCF | PFC | |
| Frequency Required | 50/60 Hz | |
| Input Voltage | AC 100-240 V | |
| Power Supply | ||
| Certification | 80PLUS Platinum Certified | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
