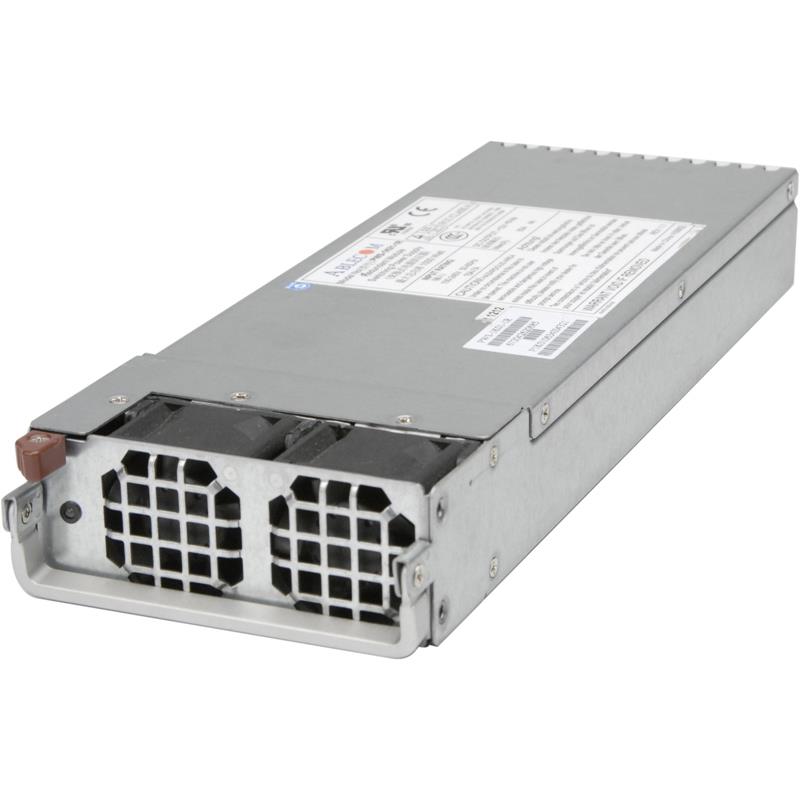

Supermicro PWS-1K43F-1R 1400W High-Efficiency Digital P. Supply
• 80 PLUS Platinum Certified
• Digital Switching Control & PMBu
• Redundant 1400W High-efficiency
1400W High-Efficiency Digital Power Supply with Digital Switching Control and PMBus 1.2 - 100-240 V, 50-60 Hz, 15 Amp max
The Supermicro PWS-1K43F-1R is an 80 Plus Platinum power supply capable of supplying 1400W output power at 94% efficiency.
Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages.
Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems.
This power supply is designed to not only provide you reliable power to your Supermicro server but also protect it from over-voltage, over-current, and short-circuiting via protective circuitry embedded into the unit.
Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU.
This power supply is redundant to safeguard your system from power failure and allows for hot-swap replacement to eliminate system downtime.
All materials contained comply with RoHS requirements and are certified by Supermicro.
Extra Specifications for Supermicro PWS-1K43F-1R 1400W High-Efficiency Digital P. Supply
| Main Specifications | ||
| Device Type | Power supply | |
| Type | Single | |
| Form Factor | 1U - Internal | |
| Dimensions (WxDxH) | 298 x 40.4 x 104.5 mm | |
| Output Type | Gold Finger | |
| Power Device | ||
| Power Provided | 1200W / 1400W | |
| Input Voltage Range | 1200W: 100-140Vac, 1400W: 180-240Vac | |
| 80 PLUS Certification | 80 Plus Platinum | |
| 5V standby | 6.0A | |
| Power Supply | ||
| PFC | Yes | |
| +5V | N/A | |
| +12V | 1200W: 100A, 1400W: 117A | |
| +3.3V | N/A | |
| Power Efficiency | ||
| Energy Efficient | Typical 94%+ @ 230Vac | |
| Miscellaneous | ||
| Compatible Servers | SYS-1017GR-TF, SYS-1018GR-T, SYS-1019GP-TT, SYS-5017GR-TF, SYS-5018GR-T, SYS-5019GP-TT, SYS-8027R-7RFT+, SYS-8027R-TRF+, SYS-8028B-C0R3FT, SYS-8028B-C0R4FT, SYS-8028B-TR3F, SYS-8028B-TR4F, SYS-8048B-C0R3FT, SYS-8048B-C0R4FT, SYS-8048B-TR3F, SYS-8048B-TR4F | |
| Compatible Chassis | CSE-748TQ-R1K43B, CSE-828TQ-R1K43LPB | |
| Compliant Standards | RoHS / REACH | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
