Motherboard |
Motherboard | Super X12DGQ-R |
Processor |
CPU | 3rd Gen Intel® Xeon® Scalable processors |
| Dual Socket P+ (LGA-4189) |
| Support CPU TDP 235W |
Cores | Up to 40C/80T; Up to 60MB Cache |
GPU |
Supported GPU | NVIDIA A100,A40,A30,A16,RTX-A6000,RTX-A5000 |
CPU-GPU Interconnect | PCIe 4.0 x16 CPU-to-GPU Interconnect |
GPU-GPU Interconnect | PCIe |
Certification |
System Memory |
Memory | Memory Capacity: 16 DIMM slots |
| Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM |
| Intel® Optane™ persistent memory 200 series |
| Up to 4TB: 16x 256 GB DRAM and 8x 512 GB PMem |
Memory Voltage | 1.2 V |
Error Detection | ECC |
On-Board Devices |
SATA | SATA3 (6Gbps); RAID 0/1/5/10 support |
Chipset | Intel® C621A |
Network Connectivity | 2x 10GbE BaseT port(s) |
IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
Input / Output |
Video | 1 VGA port(s) |
System BIOS |
BIOS Type | AMI 32MB SPI Flash EEPROM |
Management |
Software | Watch Dog |
| NMI |
| KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SUM |
| SSM |
| SPM |
| OOB Management Package (SFT-OOB-LIC ) |
Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
PC Health Monitoring |
CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 7 +1 Phase-switching voltage regulator |
FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
Chassis |
Form Factor | 1U Rackmount |
Model | CSE-118GQE2TS-R2K05P |
Dimensions and Weight |
Height | 1.7" (43mm) |
Width | 17.2" (437mm) |
Depth | 35.2" (894mm) |
Package | 8" (H) x 24" (W) x 46" (D) |
Weight | Net Weight: 45 lbs (20.4 kg) |
| Gross Weight: 58 lbs (26.31 kg) |
Available Color | Black Front & Silver Body |
Front Panel |
Buttons | Power On/Off button |
| System Reset button |
| 2 USB 3.0 |
LEDs | Network activity LEDs |
| Hard drive activity LED |
| UID LED |
| Power status LED |
| Fan fail LED |
Drive Bays / Storage |
Hot-swap | 4x 2.5" hot-swap NVMe/SATA/SAS drive bays (2x 2.5" NVMe dedicated) |
M.2 | 1 M.2 NVMe OR 1 M.2 SATA3 |
System Cooling |
Fans | 9 heavy duty fans with optimal fan speed control |
Power Supply |
Dimension (W x H x L) | 73.5 x 40 x 265 mm |
AC Input | 100-127Vac / 50-60Hz |
| 200-240Vac / 50-60Hz |
+12V | Max: 83.3A / Min: 0A (100Vac-127Vac) |
| Max: 166.7A / Min: 0A (200Vac-240Vac) |
12V SB | Max: 2.1A / Min: 0A |
Output Type | 25 Pairs Gold Finger Connector |
Certification | Titanium Level |
DC Input | 2000W: 230-240Vdc |
Operating Environment |
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
Product SKUs |

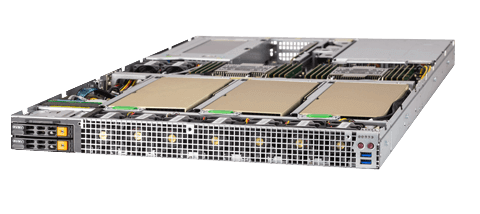

Product SKUs | SYS-120GQ-TNRT |
Expansion Slots |
PCI-Express (PCIe) | 4 PCIe 4.0 x16 FHFL slot(s) |
| 2 PCIe 4.0 x16 LP slot(s) |
