- Supermicro SYS-120GQ-TNRT 1U Barebone Dual Intel Xeon Scalable Processor for 4 PCIe GPUs

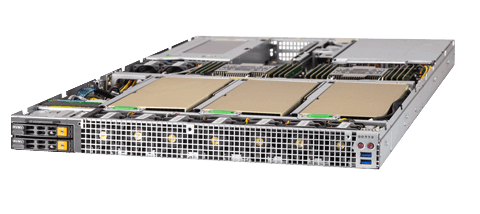

Supermicro SYS-120GQ-TNRT 1U Barebone Dual Intel Xeon Scalable Processor for 4 PCIe GPUs
• Scientific Virtualization
• High Performance Computing
• Rendering
• AI/Deep Learning Training
Barebone 1U Rackmount SuperServer Dual Intel Xeon Scalable Processor, Intel C621A chipset, Up to 4TB in 16 DIMM Slots, SATA3 (RAID 0,1,5,10), 1x NVMe M.2, 2x NVMe Hot-Swap drive bays, 2x 2.5in Internal Fixed drive bays, 2x 10GbE BaseT, 4 PCIe for GPUs, 2000W Redundant Power Supply (CSE-118GQE + MBD-X12DGQ-R-P)
To maintain quality and integrity, this system is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs, 2 GPUs, and 1 Storage device )
1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
2. Intel® C621A Chipset
3. 16 DIMM Slots; Up to 4TB DRAM; Up to 4TB Intel® Optane™ Persistent Memory (up to 6TB with DRAM) ; 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
4. 6 PCIe Gen 4.0 x16 (4 FHFL & 2 LP)
5. 1 M.2 NVMe for boot drive only 2x 2.5" NVMe Hot-swap drive bays 2x 2.5" SATA Internal Fixed drive bays
6. 9 counter rotating fans w/ Optimal Fan Speed Control
7. 2x 2000W redundant Titanium level power supplies
Extra Specifications for Supermicro SYS-120GQ-TNRT 1U Barebone Dual Intel Xeon Scalable Processor for 4 PCIe GPUs
| Motherboard | ||
| Motherboard | Super X12DGQ-R | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Dual Socket P+ (LGA-4189) | ||
| Support CPU TDP 235W | ||
| Cores | Up to 40C/80T; Up to 60MB Cache | |
| GPU | ||
| Supported GPU | NVIDIA A100,A40,A30,A16,RTX-A6000,RTX-A5000 | |
| CPU-GPU Interconnect | PCIe 4.0 x16 CPU-to-GPU Interconnect | |
| GPU-GPU Interconnect | PCIe | |
| Certification | ||
| System Memory | ||
| Memory | Memory Capacity: 16 DIMM slots | |
| Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM | ||
| Intel® Optane™ persistent memory 200 series | ||
| Up to 4TB: 16x 256 GB DRAM and 8x 512 GB PMem | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 10GbE BaseT port(s) | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| OOB Management Package (SFT-OOB-LIC ) | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 7 +1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-118GQE2TS-R2K05P | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 35.2" (894mm) | |
| Package | 8" (H) x 24" (W) x 46" (D) | |
| Weight | Net Weight: 45 lbs (20.4 kg) | |
| Gross Weight: 58 lbs (26.31 kg) | ||
| Available Color | Black Front & Silver Body | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| 2 USB 3.0 | ||
| LEDs | Network activity LEDs | |
| Hard drive activity LED | ||
| UID LED | ||
| Power status LED | ||
| Fan fail LED | ||
| Drive Bays / Storage | ||
| Hot-swap | 4x 2.5" hot-swap NVMe/SATA/SAS drive bays (2x 2.5" NVMe dedicated) | |
| M.2 | 1 M.2 NVMe OR 1 M.2 SATA3 | |
| System Cooling | ||
| Fans | 9 heavy duty fans with optimal fan speed control | |
| Power Supply | ||
| Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
| AC Input | 100-127Vac / 50-60Hz | |
| 200-240Vac / 50-60Hz | ||
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) | |
| Max: 166.7A / Min: 0A (200Vac-240Vac) | ||
| 12V SB | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| DC Input | 2000W: 230-240Vdc | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SYS-120GQ-TNRT | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 4 PCIe 4.0 x16 FHFL slot(s) | |
| 2 PCIe 4.0 x16 LP slot(s) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12DGQ-R | 1 | Super X12DGQ-R Motherboard | |
| Motherboard / Chassis | CSE-118GQE2TS-R2K05P | 1 | 1U Chassis | |
| Backplane | BPN-NVMe4-118GQE | 1 | 1U 2-Port PCIe Gen 4 U.2 NVMe Backplane for 1U GPU System | |
| Cable | CBL-0484L | 2 | 55CM 30AWG SATA S-S CBL | |
| Cable | CBL-PWCD-0900 | 2 | PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17 | |
| Cable | CBL-PWEX-1026 | 3 | GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 35CM, 17AWG, 8A/pin,RoHS | |
| Cable | CBL-PWEX-1027 | 1 | GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 14CM, 17AWG, 8A/pin,RoHS | |
| Cable | CBL-SAST-1245LP-85 | 1 | SlimSASLP (x8 STR to x8 STR),43CM,85 OHM,RoHS | |
| Cable | CBL-PWEX-1093-55 | 1 | [NR] MicroFit,(2x2 to 2x2),PH3.0,55CM,10A/pin,16AWG,RoHS | |
| Cable | CBL-PWEX-1275 | 1 | [NR] 2X2,PH3.0 TO BIG 4PIN,1X4,PH5.08,18AWG,35CMN | |
| Riser Card | RSC-G-66G4+ | 1 | 1U LHS GPU Riser card with two PCIe 4.0 x16slots,HFRoHS | |
| Riser Card | RSC-G-6G4 | 1 | 1U LHS GPU Riser card with one PCIe 4.0 x16slot,HF,RoHS | |
| Riser Card | RSC-GR-6G4 | 3 | 1U RHS GPU Riser card with one PCIe 4.0 x16slot,HF,RoHS | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0077V | 2 | X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin | |
| Add-on Card / Module | AOM-PIO-I2XT-P OR | 1 | (EOL)AOM-PIO-I2XT-O-P | |
| Add-on Card / Module | AOM-PTG-I2T-P | 0 | Riser card using Intel X710 for GPU AMD/Intel systems | |
| Add-on Card / Module | AOM-118GQE-FAN-P | 1 | Fan adaptor board for SC118GQE,RoHS | |
| *Power Supply | PWS-2K05A-1R | 2 | 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH | |
| *Fan | FAN-0210L4 | 9 | 40x40x56 mm, 29.5K-25.5K RPM, Counter-rotating Fan, RoHS | |
| *Front Panel | FPB-FP118GQE-T | 1 | Front control board with temperature sensor for SC118GQE | |
| *Drive Tray(s) | MCP-220-00121-0B | 2 | Black gen-3 2.5 NVMe drive tray, Orange tab with lock (improved EMI for hotswap NVMe drive) | |
| *Rear Window | MCP-240-11807-0N | 1 | SC118GQE Rear Window for 2x PCI-FL or 4th GPU | |
| *Rail Set | MCP-290-11809-0N | 1 | Rail set, Quick/Quick, Auto Latch, travel 609.1mm Short Version, RACK POST=26.5, 1U 17.2 SC118GQE 1U 4xGPU | |
| *Air Shroud | MCP-310-11811-0B | 1 | SC118GQE2 Air Shroud / Blocker Set for X12DGQ (4 Parts) |
