| System Memory |
| Memory Type | 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS) |
| DIMM Sizes | RDIMM: 64GB, 128GB |
| LRDIMM: 128GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| Memory Capacity | 24 DIMM slots |
| Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz |
| Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only). |
| On-Board Devices |
| Chipset | Intel® C621 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2500 |
| Network Controllers | Networking options provided via Ultra Riser |
| Graphics | 1 ASPEED AST2500 BMC port(s) |
| SATA | Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| System BIOS |
| BIOS Type | 32MB AMI SPI Flash ROM |
| Management |
| Software | SuperDoctor® 5, NMI, SUM , KVM with dedicated LAN, SPM , Intel® Node Manager, SSM , IPMI2.0 |
| Power Configurations | ACPI Power Management |
| System Management Software | SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, SSM, SUM, SPM |
| PC Health Monitoring |
| Voltage | VBAT, Supports system management utility, HT, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V, 8 -fan status, 5+1 Phase-switching voltage regulator |
| Temperature | Thermal Control for 8 Fan Connectors |
| Other Features | RoHS, Node Manager Support, CPU thermal trip support for processor protection, Chassis intrusion detection, SDDC, 4x 8-pin GPU power connectors |
| FAN | Pulse Width Modulated (PWM) fan connectors |
| 8x fans with tachometer monitoring |
| 8x 4-pin fan headers (up to 8 fans) |
| Status monitoring for speed control |
| Product SKUs |

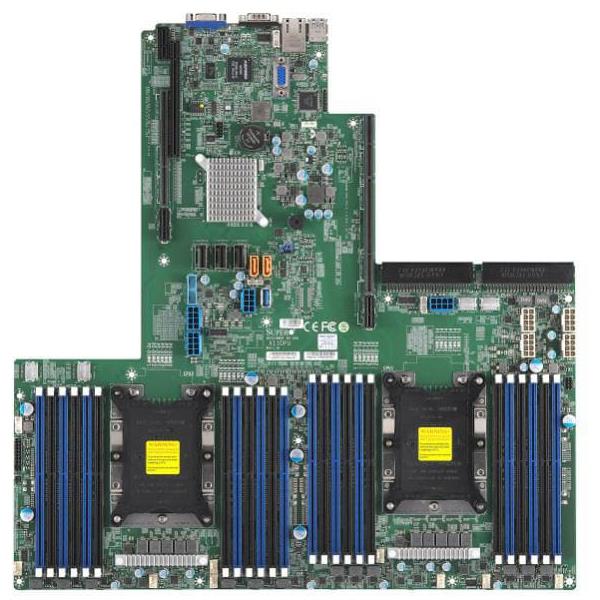

| Product SKUs | MBD-X11DPU |
| Physical Stats |
| Form Factor | Proprietary Ultra |
| Dimension | 17" x 16.8" (43.18cm x 42.67cm) |
| Processor |
| CPU | 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors |
| Dual Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s |
| Core | Up to 28 cores / 38.5MB Cache |
| Input / Output |
| SATA | 14 SATA3 (6Gbps) port(s) |
| USB | 2 USB 3.0 port(s) (2 rear) |
| 3 USB 3.2 Gen1 port(s) (2 via header; 1 type A) |
| Video Output | 2 VGA D-Sub Connector port(s) |
| Serial Port | 1 COM Port(s) (1 rear) |
| DOM | 2 Super DOM (Disk on Module) port with build power |
| TPM | 1 TPM Header |
| Expansion Slots |
| PCIe | 1 PCIe 3.0 x8 Right Riser Slot, |
| 1 PCIe 3.0 x32 Right Riser Slot, |
| 1 PCIe 3.0 x40 Ultra Riser Slot |
| Operating Environment |
| Operating Temperature Range | 10°C - 35°C (50°F - 95°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
