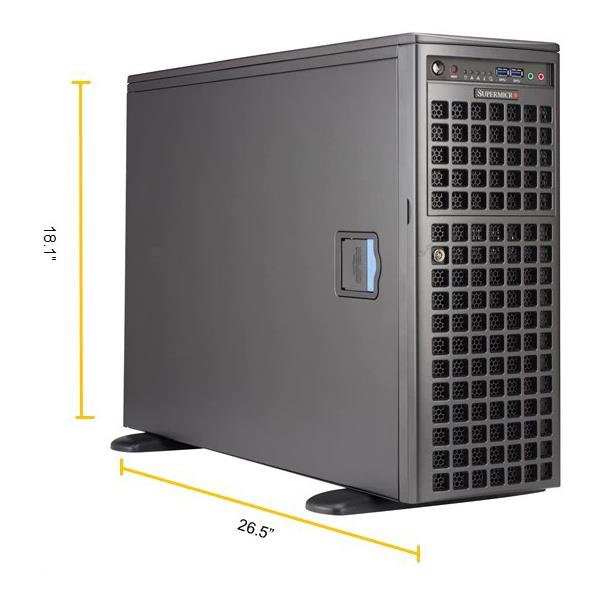

Supermicro SYS-540A-TR Tower Barebone Single Intel Processor SuperWorkstation
• Deep Learning/AI/Machine Learning Development
Barebone UP Full-tower Workstation For AI/DL/ML Development. Supports Single Socket P+ (LGA-4189) For Intel Xeon Scalable 3rd Generation or Xeon W-3300 Processors With TDP up to 270W, Up to 40C/80T, Up to 60MB Cache, Supports up to 270W TDP CPUs (Air Cooled). Max GPU Count: Up to 4 double-width or 4 single-width GPUs, Supported GPU: NVIDIA PCIe: RTX A6000, RTX A5000, RTX A4000. Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM In 16 DIMM slots. Chipset: Intel C621A. On-Board: SATA. Drive Bays / Storage: 8 Front hot-swap 3.5in SATA Drive Bays, 4 M.2 PCIe 4.0 x4 NVMe Slots (M-key 2280/22110) Peripheral Bays:3x 5.25in Bays. Network Connectivity: 1x 10GBase-T, 1x 1GbE, And 1x dedicated IPMI LAN Ports. 2200W Power Supply - (CSE-747BTS-R2K20BP + Super X12SPA-TF) - SYS-540A-TR
This product is no longer available.
1. Supports 3rd Gen Intel® Xeon® Scalable or Xeon® W-3300 Processors with TDP up to 270W
2. 7 PCIe 4.0 Slots
3. 1x 10GBase-T, 1x 1GbE, and 1x dedicated IPMI LAN ports
Extra Specifications for Supermicro SYS-540A-TR Tower Barebone Single Intel Processor SuperWorkstation
| Motherboard | ||
| Motherboard | Super X12SPA-TF | |
| Processor | ||
| CPU | Support CPU TDP 270W | |
| Single Socket P+ (LGA-4189) | ||
| 3rd Gen Intel® Xeon® Scalable processors,Intel® Xeon® W-3300 processors | ||
| Cores | Up to 38C/76T,40C/80T; Up to 57,60MB Cache | |
| System Memory | ||
| Memory | Memory Capacity: 16 DIMM slots | |
| Memory Type: 3200MHz ECC DDR4 RDIMM / LRDIMM | ||
| Up to 4TB: 16x 256 GB DRAM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| Chipset | Intel® C621A | |
| Network Connectivity | 1x 1GbE BaseT with Intel® I210-AT | |
| 1x 1GbE BaseT with Realtek RTL8211F PHY (dedicated IPMI) | ||
| 1x 10GbE BaseT with Marvell AQC113 | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| SATA | 8 SATA (6Gbps) port(s) | |
| USB | 4 USB 2.0 port(s) (2 header; 2 rear) | |
| 1 USB 3.2 Gen 2x2 port(s) (1 rear) | ||
| 6 USB 3.2 Gen 1 port(s) (2 header; 4 rear) | ||
| 2 USB 3.2 Gen 2 port(s) (1 rear Type A; 1 rear Type C) | ||
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 256MB SPI Flash | |
| Management | ||
| Software | Watch Dog | |
| SuperDoctor 5 | ||
| KVM with dedicated LAN | ||
| IPMI 2.0 | ||
| SUM | ||
| SPM | ||
| Power Configurations | ACPI 6.0 | |
| PC Health Monitoring | ||
| Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT | |
| Chassis | ||
| Form Factor | Full-Tower | |
| Model | CSE-747BTS-R2K20BP | |
| Dimensions and Weight | ||
| Height | 18.1" (460mm) | |
| Width | 7" (178mm) | |
| Depth | 26.5" (673mm) | |
| Package | 12.7" (H) x 27" (W) x 37.5" (D) | |
| Weight | Gross Weight: 57 lbs (25.85 kg) | |
| Net Weight: 52.9 lbs (24 kg) | ||
| Available Color | black | |
| Front Panel | ||
| Buttons | System Reset | |
| Power On/Off | ||
| LEDs | System Overheat / Fan Fail LED | |
| HDD activity | ||
| Power On | ||
| Network activity | ||
| Drive Bays / Storage | ||
| Hot-swap | 8x 3.5" hot-swap SATA drive bays | |
| M.2 | 4x PCIe 4.0 x4 | |
| Peripheral Bays | 3x 5.25" drive bays | |
| System Cooling | ||
| Fans | 2x 80mm Fan(s) | |
| 4x 92mm Fan(s) | ||
| Power Supply | ||
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| AC Input | 1200W: 100-127Vac / 11A-14A / 50-60Hz | |
| 2200W: 230-240Vac / 11A-12A / 50-60Hz | ||
| +12V | Max: 100A / Min: 0A (100Vdc-127Vdc) | |
| Max: 183.33A / Min: 0A (230Vdc-240Vdc) | ||
| Output Type | 27 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| 5V SB | Max: 1A / Min: 0A | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SYS-540A-TR | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 7 PCIe 4.0 x16 FHFL slot(s) | |
| Note | PCIex16 Slot#1 shares with M.2, Slot#2 shares with Slot#3(NA/16,8/8), Slot#4 shares with Slot#5(NA/16,8/8), Slot#6 shares with Slot#7(NA/16,8/8) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12SPA-TF | 1 | Super X12SPA-TF Motherboard | |
| Motherboard / Chassis | CSE-747BTS-R2K20BP | 1 | Full-Tower Chassis | |
| Backplane | BPN-SAS3-747TQ-N4 | 1 | 8port 4U 3.5" SAS3/2/SATA3 12Gbps BPN 4ports NVMe RoHS | |
| Cable | CBL-0484L | 8 | 7pin SATA (STR to STR), 55cm, PBF | |
| Cable | CBL-CDAT-0661 | 2 | 8 Pin to 8 Pin Round SGPIO Cable, 40cm, 28AWG, Pinout 1-1 | |
| Cable | CBL-PWEX-1040 | 4 | PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW | |
| Cable | CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF | |
| Cable | CBL-0160L | 2 | US POWER CORD 16AWG, PB FREE | |
| Cable | CBL-0216L | 4 | 4 TO 4 PIN FAN POWER CABLE, 210MM | |
| Cable | CBL-0286L | 2 | 4 TO 4 PIN REAR FAN PWR EXT W/ SQUARE HEADER, 30CM (PWM) | |
| Parts | MCP-260-00148-0N | 1 | STD I/O Shield for X12SPA-TF with EMI Gasket | |
| Parts | MCP-290-74701-0B | 1 | Black plastic top cover for SC747 | |
| Parts | MCP-290-74702-0N | 1 | GPU Card Holder (11 slots) for SC747TQ, SC842 | |
| Parts | MCP-290-74703-0B | 1 | fixed 3.5" dummy cover for SC747 | |
| Parts | MCP-290-74709-0B | 1 | Plastic feet (2 pcs/set) for 4U tower chassis, black color | |
| Manual | MNL-2328-QRG | 1 | 540A-TR Quick Reference Guide | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-C0121L-1 | 4 | 22W x 129.65L x 4.35H mm, Al., Screws, Pad, Anodized, X11SPA 2280 M.2 HS with single package | |
| Heatsink / Retention | SNK-P0081AP4 | 1 | 4U Active CPU Heat Sink for X12 Generation UP Gaming and Workstations | |
| *Power Supply | PWS-2K20A-1R | 2 | 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm | |
| *Power Distributor | PDB-PT747-6824 | 1 | Power Distributor Board is for 4U GPU solution using regular | |
| *Fan | FAN-0082L4-1 | 2 | 80x80x38 mm, 6.1K RPM, Rear Exhaust Fan for SC743, SC745, Ro | |
| *Fan | FAN-0114L4-1 | 2 | 92x92x38 mm, 5K RPM, Middle Cooling Fan for SC747, RoHS | |
| *Fan | FAN-0138L4 | 2 | 92x92x38 mm, 7.5K RPM, SC747 Middle Fan for Passive Cooling GPU | |
| *Front Bezel | MCP-210-74701-0B | 1 | SC747 plastic front bezel | |
| *Drive Tray(s) | MCP-220-00073-0B | 3 | Black 5.25 drive tray w/o rail (SC747) | |
| *Front Panel | MCP-280-74702-0N | 1 | SC747BTQ-R2K04B Front Control Panel PCB (2x USB3.0, Audio) |
