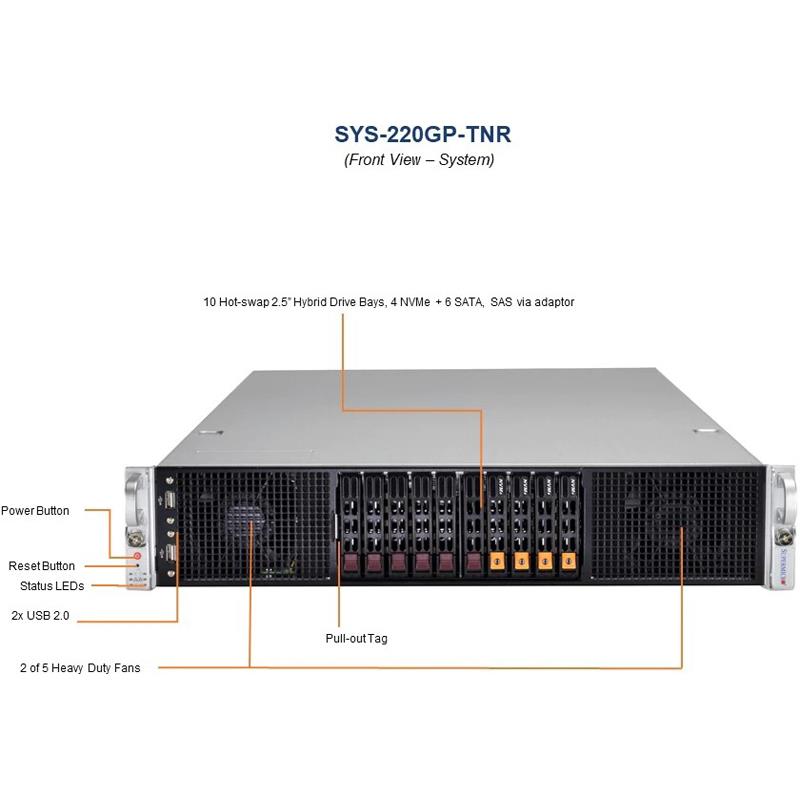

- Supermicro SYS-220GP-TNR GPU 2U Barebone Dual Intel Xeon Scalable 3rd Generation Processors Up to 4TB DRAM SATA3, NVMe Via AIOM
Supermicro SYS-220GP-TNR GPU 2U Barebone Dual Intel Xeon Scalable 3rd Generation Processors Up to 4TB DRAM SATA3, NVMe Via AIOM
• Scientific Virtualization
• High Performance Computing
• VDI
• AI/Deep Learning Training
Barebone 2U Rackmount SuperServer Dual 3rd Gen Intel Xeon Scalable processors, Intel C621A chipset, Up to 4TB in 16 DIMM Slots, SATA3 and NVMe, 10x 2.5in SATA/NVMe drive bays, 2x M.2 NVMe for boot drive only, Optional Networking 2600W Redundant Power Supply (CSE-218GH2TS-R2K63BP + X12DPG-AR)
1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
2. Intel® C621A Chipset
3. 16 DIMM Slots; Up to 4TB DRAM; Up to 4TB Intel® Optane™ Persistent Memory (up to 6TB with DRAM) ; 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
4. 6 PCIe Gen 4.0 x16 FH, 10.5" L Up to 2 PCIe Gen 4.0 x8 FH
5. Flexible networking options
6. Total 10x 2.5" Hot-swap drive bays, configurable combination of SATA + NVMe with optional cable, up to 6x NVMe Configuration 3: 4x SATA + 6x NVMe 2x M.2 NVMe for boot drive only (with optional expansion card AOC-SLG3-2M2) Configuration 1: 8x SATA + 2x NVMe (PCIe slot 7 + slot 8 enabled) Configuration 2: 6x SATA + 4x NVMe (PCIe slot 7 enabled)
7. 5 counter rotating fans w/ Optimal Fan Speed Control
8. 2x 2600W redundant Titanium level power supplies
Extra Specifications for Supermicro SYS-220GP-TNR GPU 2U Barebone Dual Intel Xeon Scalable 3rd Generation Processors Up to 4TB DRAM SATA3, NVMe Via AIOM
Motherboard | ||
Motherboard | Super X12DPG-AR | |
Processor | ||
CPU | 3rd Gen Intel® Xeon® Scalable processors | |
Support CPU TDP 270W | ||
Dual Socket P+ (LGA-4189) | ||
Cores | Up to 40C/80T; Up to 60MB Cache | |
GPU | ||
Supported GPU | NVIDIA A16, A30, A40, A100, Quadro RTX. Please refer to Compatible GPU List for details. | |
Offboard VGA supported with A40, A4000, A4500, A5000, and A6000 | ||
CPU-GPU Interconnect | PCIe 4.0 x16 CPU-to-GPU Interconnect | |
GPU-GPU Interconnect | PCIe | |
Certification | ||
System Memory | ||
Memory | Memory Capacity: 16 DIMM slots | |
Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM | ||
Intel® Optane™ persistent memory 200 series | ||
Up to 4TB: 16x 256 GB DRAM | ||
Up to 6TB: 8x 512 GB PMem | ||
Memory Voltage | 1.2 V | |
Error Detection | ECC | |
On-Board Devices | ||
SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
Chipset | Intel® C621A | |
Network Connectivity | Via AIOM | |
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Input / Output | ||
Video | 1 VGA port(s) | |
System BIOS | ||
BIOS Type | AMI 32MB SPI Flash EEPROM | |
Management | ||
Software | Watch Dog | |
NMI | ||
KVM with dedicated LAN | ||
Redfish API | ||
SuperDoctor® 5 | ||
Intel® Node Manager | ||
IPMI 2.0 | ||
SUM | ||
SSM | ||
SPM | ||
OOB Management Package (SFT-OOB-LIC ) | ||
Power Configurations | Power-on mode for AC power recovery | |
ACPI Power Management | ||
PC Health Monitoring | ||
CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
7 +1 Phase-switching voltage regulator | ||
FAN | Status monitor for speed control | |
Pulse Width Modulated (PWM) fan connectors | ||
Fans with tachometer monitoring | ||
Temperature | Monitoring for CPU and chassis environment | |
Thermal Control for fan connectors | ||
Chassis | ||
Form Factor | 2U Rackmount | |
Model | CSE-218GH2TS-R2K63BP | |
Dimensions and Weight | ||
Height | 3.46" (88mm) | |
Width | 17.35" (440.7mm) | |
Depth | 30.18" (766.8mm) | |
Package | 11" (H) x 26.5" (W) x 44.5" (D) | |
Weight | Net Weight: 39.5 lbs (17.9 kg) | |
Gross Weight: 54 lbs (24.5 kg) | ||
Available Color | Black Front & Silver Body | |
Drive Bays / Storage | ||
Hot-swap | 10x 2.5" hot-swap NVMe/SATA/SAS drive bays (2x 2.5" NVMe dedicated) | |
System Cooling | ||
Fans | 5 heavy duty fans with optimal fan speed control | |
Power Supply | ||
Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
Output Type | 25 Pairs Gold Finger Connector | |
Certification | Titanium Level | |
AC Input | 2600W: 200-240Vac / 15A Max | |
DC Input | 2600W: 200-240Vdc For CQC Only/ 15A Max / 50-60Hz | |
+12V | Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output) | |
Operating Environment | ||
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
Front Panel | ||
Buttons | Power On/Off button | |
LEDs | Network activity LEDs | |
Hard drive activity LED | ||
UID LED | ||
Power status LED | ||
Information LED | ||
Product SKUs | ||
Product SKUs | SYS-220GP-TNR | |
Expansion Slots | ||
PCI-Express (PCIe) | 6 PCIe 4.0 x16 FH 10.5" L slot(s) | |
2 PCIe 4.0 x8 FHFL slot(s) |
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
2.5" NVMe Drive Trays | MCP-220-00121-0B • | 2 | Black Gen-3 2.5" NVMe drive tray. Orange tab with lock. | |||
2.5" SATA Drive Trays | MCP-220-00047-0B • | 2 | Black gen 3rd hot-swap 2.5inch HDD tray | |||
GPU Brackets | MCP-240-21829-0N | $ 164.00 | 1 | NVidia A10 GPU Bracket Set | ||
GPU Brackets | MCP-120-21807-0N | $ 31.00 | 1 | NVidia Tesla T4 GPU Bracket Set | ||
GPU Brackets | MCP-240-21832-0N | 1 | NVidia A2 Bracket Set | |||
GPU Cables | CBL-PWEX-1040 • | 1 | PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW | |||
GPU Cables | CBL-PWEX-1017 • | 1 | PWYCB,GPU,2x4F/CPU to two (2x3F+2x1F)/PCIe,P4.2, 20CM,16/20A | |||
GPU Cables | CBL-PWEX-0665 • | 1 | PCIe 8 Pin Female(Black) to CPU 8 Pin Female(White) | |||
Intel VROC RAID Key | AOC-VROCPREMOD •AOC-VROCPREMOD on eStore',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);" target="_blank"> | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 | |||
Network Cards | AOC-STG-i4T | 1 | Std LP 4-port 10G RJ45, Intel XL710+ X557 | |||
Network Cards | AOC-MCX556A-ECAT | $ 1,048.00 | 1 | MCX556A-ECAT, CX-5 VPI,EDR IB,100GbE,2p,QSFP28,PCIe3x16 | ||
Network Cards | AOC-MCX516A-CCAT | 1 | Mellanox MCX516A-CCAT PCIe 2-port 100GbE QSFP28 Gen3.0 x16 CX-5. HF, RoHS | |||
Network Cards | AOC-S25G-i2S | 1 | Standard Low Profile 25G dual port SFP28, based on Intel XXV710+ Marvell Unionville,RoHS | |||
Network Cards | AOC-653105A-HDAT | $ 1,174.00 | 1 | Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card single port, QSFP56, PCIe 3.0/4.0 x16, RoHS. | ||
Network Cards | AOC-653106A-ECAT | $ 1,199.00 | 1 | ConnectX-6 VPI Card. 100Gb/s InfiniBand & Ethernet Adapter Card, dual ports, QSFP56, PCIe 3.0/4.0 x16. HF, RoHS. | ||
Network Cards | AOC-STGS-I2T | $ 337.50 | 1 | Intel X550-AT2 2 RJ45 (10Gb/port) Gen3 x4 Standard Low Profile | ||
Network Cards | AOC-STG-b2T | 1 | Standard LP 2-port 10Gbase-T, Broadcom 57416,HF,RoHS | |||
Network Cards (AIOM) | AOC-ATG-i2T2SM | 1 | AIOM Quad-Port 10GbE (2x RJ45 & 2x SFP+) based on Intel X710-TM4,RoHS | |||
Network Cards (AIOM) | AOC-A25G-m2SM | 1 | AIOM 2-port 25GbE SFP28, Mellanox CX-6 LX w/ 0.5U height bracket,RoHS | |||
Network Cards (AIOM) | AOC-A25G-b2SM | 1 | AIOM 2-port 25GbE SFP28, Broadcom BCM57414 with 0.5U bracket,RoHS | |||
Network Cards (AIOM) | AOC-ATG-i2SM | 1 | AIOM Dual-Port 10GbE SFP+, based on X710-BM2,RoHS | |||
Network Cards (AIOM) | AOC-ATGC-i2TM | 1 | AIOM 2-port 10GBase-T RJ45, based on Intel Carlsville X710-AT2, w/ 1U BKT,RoHS | |||
Network Cards (AIOM) | AOC-ATG-i2TM | 1 | AIOM 2-port 10GBase-T, Intel X550,RoHS | |||
Network Cards (AIOM) | AOC-ATG-I4SM | $ 332.50 | 1 | AIOM Quad-Port 10GbE SFP+, based on Intel XL710-BM1,RoHS | ||
NVMe/AOC Cables | CBL-SAST-1262LP-85 | $ 45.00 | 1 | SlimlineLP x8 (STR) to SlimlineLP x8 (STR),60CM,85 OHM. For 2x NVMe and 6x NVMe configurations. | ||
Rear Fan Kit | MCP-320-21809-0N | $ 174.50 | 1 | External rear fan mounted over slots 5 and 6 to increase operating ambient temperature with 6x A100, A40, A6000, etc. | ||
Storage Controller Cards and Cables | AOC-SLG3-2M2 | $ 54.00 | 1 | LP, PCIe3 x8, Dual port NVMe M.2 carrier | ||
Storage Controller Cards and Cables | CBL-SAST-1264F-100 • (for S3808L and S3908L) | 1 | Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM,10 | |||
Storage Controller Cards and Cables | AOC-S3808L-L8IT | $ 397.50 | 1 | 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS | ||
Storage Controller Cards and Cables | AOC-S3908L-H8IR-16DD | $ 695.50 | 1 | 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS | ||
Storage Controller Cards and Cables | CBL-SAST-1285-100 (for S3108L) | 2 | Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM,R | |||
Storage Controller Cards and Cables | AOC-S3108L-H8iR-16DD | 1 | 8 int 12Gb/s ports, 8xGen3, ROC - LP,16 HDD w/ exp | |||
TPM Security Module | AOM-TPM-9670V | $ 56.50 | 1 | SPI capable vertical TPM 2.0 provisioned for client,RoHS |
Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
