Supermicro SYS-220GQ-TNAR+ GPU 2U Barebone Dual Intel Xeon Scalable Processors 3rd Generation Up to 12TB DRAM SATA3, NVMe, M.2 Dual 10GbE
• High Performance Computing
• AI/Deep Learning Training
Barebone 2U Rackmount SuperServer Dual 3rd Gen Intel Xeon Scalable processors, Intel C621A chipset, Up to 12TB in 32 DIMM Slots, SATA3, NVMe and M.2, 4x 2.5in SATA/SAS drive bays, 2x M.2 NVMe or 2x M.2 SATA3, 2x 10GbE BaseT LAN Ports, 3000W Redundant Power Supply (CSE-228GTS-R3K02P + X12DPG-QR-P)
1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
2. Intel® C621A Chipset
3. Up to 4x PCIe Gen 4.0 X16 LP Slots
4. High density 2U system with NVIDIA® HGX™ A100 4-GPU Highest GPU communication using NVIDIA® NVLINK™ Supports HGX A100 4-GPU 40GB (HBM2) or 80GB (HBM2e) Direct connect PCIe Gen4 Platform with NVIDIA® NVLink™ v3.0 up to 600GB/s interconnect
5. Flexible networking options
6. 4x 2.5" Hot-swap (SATA/SAS/NVMe) drive bays 2 M.2 NVMe/SATA via Intel® C621A PCH chipset (for boot drive only)
7. 4 heavy duty fans with optimal fan speed control
8. 2x 3000W redundant Titanium level power supplies
Extra Specifications for Supermicro SYS-220GQ-TNAR+ GPU 2U Barebone Dual Intel Xeon Scalable Processors 3rd Generation Up to 12TB DRAM SATA3, NVMe, M.2 Dual 10GbE
Motherboard | ||
Motherboard | Super X12DPG-QR | |
Processor | ||
CPU | 3rd Gen Intel® Xeon® Scalable processors | |
Support CPU TDP 270W | ||
Dual Socket P+ (LGA-4189) | ||
Cores | Up to 40C/80T; Up to 60MB Cache | |
GPU | ||
Supported GPU | HGX A100 4-GPU SXM4 Multi-GPU Board | |
CPU-GPU Interconnect | PCIe 4.0 x16 CPU-to-GPU Interconnect | |
GPU-GPU Interconnect | NVIDIA® NVLink™ | |
Certification | ||
System Memory | ||
Memory | Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM | |
Intel® Optane™ persistent memory 200 series | ||
Memory Capacity: 32 DIMM slots | ||
Up to 8TB: 32x 256 GB DRAM and 16x 512 GB PMem | ||
Memory Voltage | 1.2 V | |
Error Detection | ECC | |
On-Board Devices | ||
SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
Chipset | Intel® C621A | |
Network Connectivity | 2x 10GbE BaseT with Intel® X540-AT2 | |
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Input / Output | ||
Video | 1 VGA port(s) | |
System BIOS | ||
BIOS Type | AMI 32MB SPI Flash EEPROM | |
Management | ||
Software | Watch Dog | |
NMI | ||
KVM with dedicated LAN | ||
Redfish API | ||
SuperDoctor® 5 | ||
Intel® Node Manager | ||
IPMI 2.0 | ||
SUM | ||
SSM | ||
SPM | ||
OOB Management Package (SFT-OOB-LIC ) | ||
Power Configurations | Power-on mode for AC power recovery | |
ACPI Power Management | ||
PC Health Monitoring | ||
CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
7 +1 Phase-switching voltage regulator | ||
FAN | Status monitor for speed control | |
Pulse Width Modulated (PWM) fan connectors | ||
Fans with tachometer monitoring | ||
Temperature | Monitoring for CPU and chassis environment | |
Thermal Control for fan connectors | ||
Chassis | ||
Form Factor | 2U Rackmount | |
Model | CSE-228GTS-R3K02P | |
Dimensions and Weight | ||
Height | 3.5" (89mm) | |
Width | 17.2" (437mm) | |
Depth | 32.7" (830.3mm) | |
Package | 11" (H) x 22.5" (W) x 45.5" (D) | |
Weight | Net Weight: 67.5 lbs (30.6 kg) | |
Gross Weight: 86.5 lbs (39.2 kg) | ||
Available Color | Silver Body | |

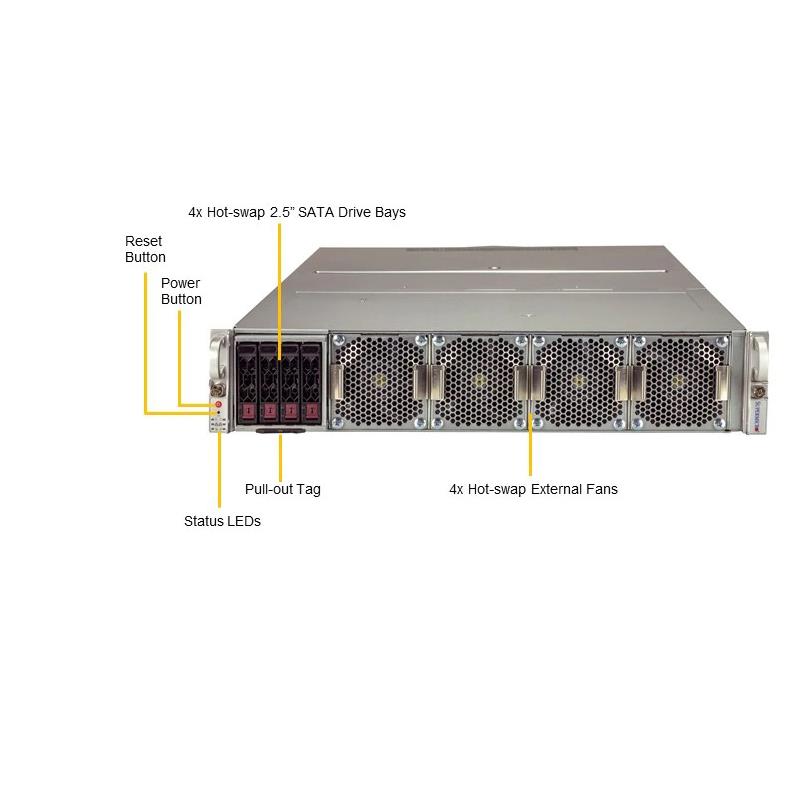

Front Panel | ||
Buttons | Power On/Off button | |
System Reset button | ||
LEDs | Network activity LEDs | |
Hard drive activity LED | ||
Power status LED | ||
System Overheat & Power Fail LED | ||
Drive Bays / Storage | ||
Hot-swap | 4x 2.5" hot-swap NVMe/SATA/SAS drive bays | |
M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 | |
System Cooling | ||
Fans | 4 heavy duty fans with optimal fan speed control | |
Power Supply | ||
Dimension (W x H x L) | 106.5 x 82.4 x 203.5 mm | |
AC Input | 2880W: 200-207Vac / 15.7A-16A / 50-60Hz | |
3000W: 207.1-240Vac / 14.5A-16A / 50-60Hz | ||
Output Type | Backplanes (gold finger) | |
Certification | Titanium Level | |
Total Output Power | 3000W | |
DC Input | 3000W: 240Vdc / 15A Max | |
Operating Environment | ||
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
Product SKUs | ||
Product SKUs | SYS-220GQ-TNAR+ | |
Expansion Slots | ||
PCI-Express (PCIe) | 3 PCIe 4.0 x16 LP slot(s) | |
1 PCIe 4.0 x16 LP (enabled upon request during order) ** slot(s) |
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
2.5" SATA/SAS Drive Tray | MCP-220-00187-0B | $ 23.50 | 1 per drive | 2.5 thin profile drive tray, standard color tab, for SAS / SATA drives | ||
GPU Baseboard * | GPU-NVTHGX-A100-SXM4-48 | 1 | NVIDIA Redstone GPU Baseboard, 4 A100 80GB SXM4 | |||
GPU Baseboard * | GPU-NVTHGX-A100-SXM4-4 | 1 | NVIDIA Redstone GPU Baseboard, 4 A100 40GB SXM4 | |||
GPU Baseboard Note | * Required as part of Complete System | 0 | - | |||
Network Cards (Ethernet) | AOC-MCX512A-ACAT | $ 407.50 | 0 | 2-port SFP28 Mellanox ConnectX-5 EN 25GbE Ethernet Adapter Card, PCIe 3.0 x8 | ||
Network Cards (Ethernet) | AOC-100HFA0LSN-CA027 | 0 | Cornelis Omni-Path Adapter PCIe 1 Port 100G QSFP28 Gen3 x16 | |||
Network Cards (Ethernet) | AOC-623106AN-CDAT | $ 1,363.00 | 0 | 2-port QSFP56 Mellanox ConnectX-6 DX 100GbE Ethernet Adapter Card, PCIe 4.0 x16 | ||
Network Cards (Ethernet) | AOC-623102AN-ADAT | 0 | 2-port SFP28 Mellanox ConnectX-6 DX No Crypto 25GbE Ethernet Adapter Card, PCIe 3.0/4.0 x16 | |||
Network Cards (Ethernet) | AOC-MCX516A-CCAT | $ 931.00 | 0 | 2-port SFP28 Mellanox ConnectX-5 EN 100GbE Ethernet Adapter Card, PCIe 3.0 x16 | ||
Network Cards (Ethernet) | AOC-MCX512F-ACAT | 0 | 2-port SFP28 Mellanox ConnectX-5 EN 25GbE Ethernet Adapter Card, PCIe 3.0 x16 | |||
Network Cards (Ethernet) | AOC-S100GC-i2C | 0 | 2-port QSFP28 Intel Columbiaville 810-CAM2 100GbE Ethernet Adapter Card, PCIe 3.0/4.0 x16 | |||
Network Cards (Ethernet) | AOC-S25G-I2S | $ 360.50 | 0 | 2-port SFP28 Intel XXV710 25GbE Ethernet Adapter Card, PCIe 3.0 x8 | ||
Network Cards (Ethernet) | AOC-STG-I4T | $ 605.00 | 0 | 4-port RJ45 Intel XL720-BM1 & X557-AT4 10Gb Ethernet Adapter Card, PCIe 3.0 x8 | ||
Network Cards (Ethernet) | AOC-STG-I2T | $ 306.50 | 0 | 2-port RJ45 Intel X540 10GbE Ethernet Adapter Card, PCIe 2.1 x8 | ||
Network Cards (Ethernet) | AOC-STGN-I2S | $ 306.50 | 0 | 2-port SFP+ Intel 82599ES 10GbE Ethernet Adapter Card, PCIe 2.0 x8 | ||
Network Cards (Ethernet) | AOC-STGS-i2T | 0 | 2-port RJ45 Intel X550-AT2 10GbE Ethernet Adapter Card, PCIe 3.0 x8 | |||
Network Cards (Ethernet) | AOC-STG-B2T-O | 0 | 2-port RJ45 Broadcom 57416 10GbE Ethernet Adapter Card, PCIe 3.0 x8 | |||
Network Cards (Ethernet) | AOC-S25G-M2S-O • | 0 | 2-port SFP28 Mellanox ConnectX-4 LX EN 25GbE Ethernet Adapter Card, PCIe 3.0 x8 | |||
Network Cards (Ethernet) | AOC-STG-I4S | $ 370.50 | 0 | 4-port SFP+ Intel XL710-BM1 10GbE Ethernet Adapter Card, PCIe 3.0x8 | ||
Network Cards (Ethernet) | AOC-STGF-i2S-O | 0 | 2-port SFP+ Intel X710-BM2 10GbE Ethernet Adapter Card with NC-SI function support by connector, PCIe 3.0 x8 | |||
Network Cards (Ethernet/ InfiniBand) | AOC-653106A-ECAT | $ 1,100.00 | 0 | 2-port QSFPS6 Mellanox ConnectX-6 VPI 100Gb/s EDR InfiniBand & 100GbE Ethernet Adapter Card, PCIe 3.0/4.0 x16 | ||
Network Cards (Ethernet/ InfiniBand) | AOC-MCX556A-ECAT | $ 1,048.00 | 0 | 2-port QSFP28 Mellanox ConnectX-5 VPI 100Gb/s EDR InfiniBand & 100GbE Ethernet Adapter Card, PCIe 3.0 x16 | ||
Network Cards (Ethernet/ InfiniBand) | AOC-653106A-HDAT | $ 2,028.00 | 0 | 2-port QSFP56 Mellanox ConnectX-6 VPI 200Gb/s HDR InfiniBand & 200GbE Ethernet Adapter Card, PCIe 4.0 x16 | ||
Network Cards (Ethernet/ InfiniBand) | AOC-653105A-HDAT | $ 1,174.00 | 0 | 1-port QSFP56 Mellanox ConnectX-6 VPI 200Gb/s HDR InfiniBand & 200GbE Ethernet Adapter Card, PCIe 4.0 x16 | ||
Network Cards (Ethernet/ InfiniBand) | AOC-653105A-ECAT | $ 918.00 | 0 | 1-port QSFP56 Mellanox ConnectX-6 VPI 100Gb/s EDR InfiniBand & 100GbE Ethernet Adapter Card, PCIe 3.0/4.0 x16 | ||
Network Cards (InfiniBand) | AOC-683105AN-HDAT | $ 1,367.00 | 0 | 1-port QSFP56 Mellanox ConnectX-6 DE 200Gb/s HDR InfiniBand, PCIe 3.0/4.0 x16 | ||
Network Cards (InfiniBand) | AOC-CX7660030-ST0 | $ 7.50 | 0 | 1-port OSFP Nvidia 900-9X766-003N-ST0 200Gb/s NDR200 Infiniband, PCIe 4.0/5.0 x16,RoHS | ||
Storage Controller Cards | AOC-S3808L-L8iT | 0 | 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/exp | |||
Storage Controller Cards | AOC-S3108L-H8iR-16DD | 0 | 8 int 12Gb/s ports, 8xGen3, ROC - LP,16 HDD w/ exp | |||
Storage Controller Cards | AOC-S3908L-H8IR-32DD | $ 725.50 | 0 | 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 32 HDD w/ exp,RoHS | ||
Storage Controller Cards - Cables | CBL-SAST-1281-100 | $ 50.00 | 0 | Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM, (for AOC-S3908L-H8IR-32DD and AOC-S3808L-L8iT) | ||
Storage Controller Cards - Cables | CBL-SAST-1285-100 | $ 31.50 | 0 | Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM,R (for AOC-S3108L-H8iR-16DD) | ||
Storage Controller Cards - Cachevault | BTR-CVPM05 | $ 207.50 | 0 | Supercap/TFM Unit for cached data protection (optional for AOC-S3908L-H8IR-32DD) | ||
Storage Controller Cards - Cachevault | MCP-240-00203-0N | $ 26.50 | 0 | Remote Mounting Board for BTR-CVPM05, Occupies single PCIe Slot | ||
TPM Security Module | AOM-TPM-9670V-S-FIPS-P | 0 | AOM-TPM-9670V-S-FIPS TPM 2.0 support TAA and FIPS,RoHS |
Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
