| System Memory |
| Memory Capacity | 4 DIMM slots |
| Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz |
| Memory Type | 2933/2666/2400/2133 MT/s |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | 1.2V |
| On-Board Devices |
| Chipset | Intel® Q470E |
| Graphics | 1 Intel® HD Graphics port(s) |
| Network Controllers | Single LAN with Intel® Ethernet Controller I210-AT |
| Single LAN with Intel® PHY I219LM LAN controller |
| SATA | Intel® Q470 controller for 6 ports; RAID 0,1,5,10 |
| Audio | ALC 888S HD Audio |
| Input / Output |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| Video Output | 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s) |
| SATA | 6 SATA3 (6Gbps) port(s) |
| USB | 6 USB 2.0 port(s) (4 via header; 2 rear) |
| 6 USB 3.1 Gen2 port(s) (2 via header; 2 rear type A; 2 rear type C) |
| Serial Port | 4 COM Port(s) (4 header) |
| TPM | 1 TPM Header & Chip both |
| System BIOS |
| BIOS Type | AMI UEFI |
| BIOS Features | RTC (Real Time Clock) Wakeup |
| SMBIOS 3.0 or later |
| UEFI 2.7 |
| PCI FW 3.0 |
| ACPI 6.1 |
| Management |
| Software | SuperDoctor® 5, SUM , AMT, vPro, Watchdog |
| Power Configurations | ATX Power connector |
| PC Health Monitoring |
| Voltage | VBAT, 4 fans with tachometer monitoring, 4 -fan status, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V |
| LED | Power LED |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| Other Features | Chassis intrusion detection |
| RoHS |
| M.2 NGFF connector |
| ACPI power management |
| ATX Power connector |
| FAN | 4x 4-pin fan headers (up to 4 fans) |
| 4 fans with tachometer monitoring |
| Product SKUs |

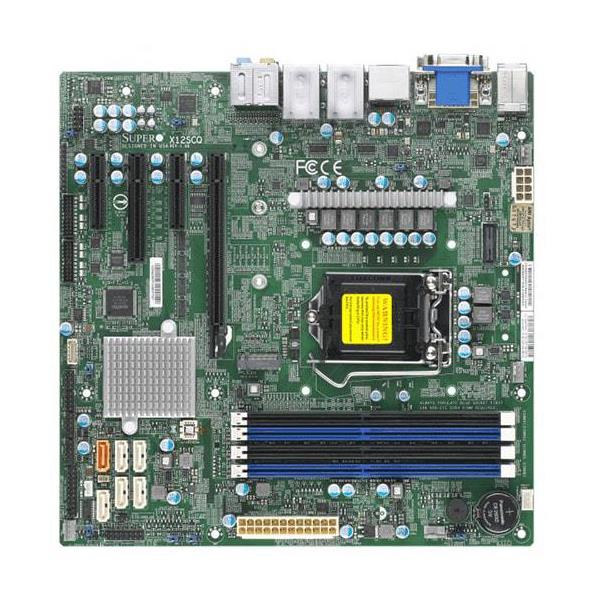

| Product SKUs | MBD-X12SCQ |
| Physical Stats |
| Form Factor | Micro-ATX |
| Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) |
| Processor |
| CPU | Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP |
| 11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor |
| Core | Up to 10 cores |
| Note | **The X12SCQ does not support the Intel 10th/11th generation processor 2M cache SKUs. These processors will not boot with the latest BIOS version. |
| Expansion Slots |
| PCIe | 1 PCIe 3.0 x8 |
| 2 PCIe 3.0 x4, |
| 1 PCIe 3.0 x16 (in x16 slot), |
| M.2 | Key: M-Key |
| Form Factor: 2242/2280 |
| M.2 Interface: 1 PCIe 3.0 x4, RAID 0 & 1 |
| Operating Environment |
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
