| System Memory |
| Memory Capacity | 16 DIMM slots |
| Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz |
| Up to 4TB ECC LRDIMM, DDR4-3200MHz; Up to 4TB ECC RDIMM, DDR4-3200MHz |
| Memory Type | 3200/2933/2666 MT/s ECC DDR4 LRDIMM, RDIMM |
| DIMM Sizes | RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB |
| 16GB, 32GB, 64GB, 128GB, 256GB |
| LRDIMM: 16GB, 32GB, 64GB, 128GB, 256GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel® C621A |
| IPMI | ASPEED AST2600 BMC |
| Graphics | 1 ASPEED AST2600 BMC port(s) |
| Network Controllers | AIOM for LAN |
| SATA | Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Input / Output |
| Video Output | 1 VGA D-Sub Connector port(s) |
| USB | 4 USB 3.1 Gen1 port(s) (2 via header; 2 rear) |
| Serial Port | 1 COM Port(s) (1 header) |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Type | AMI UEFI |
| Management |
| Software | SuperDoctor® 5, NMI, SUM , KVM with dedicated LAN, SPM , Intel® Node Manager, SSM , IPMI2.0 , vPro, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SuperDoctor® III |
| System Management Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support |
| Power Configurations | ATX Power connector |
| PC Health Monitoring |
| Voltage | PCH temperature, Monitors CPU voltages, CPU temperature, Chassis intrusion header, 6 -fan status, +5V standby, +12V, Memory Voltages, CPU thermal trip support, +1.8V PCH |
| LED | UID/Remote UID |
| Power LED |
| BMC/IPMI Heartbeat LED |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| Other Features | WOL, UID, RoHS, Node Manager Support, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT, NCSI header |
| FAN | 6 fans with tachometer status monitoring |
| Product SKUs |

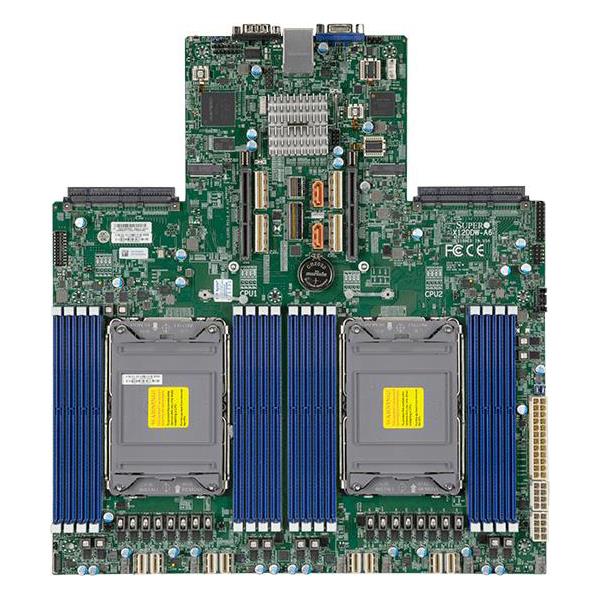

| Product SKUs | MBD-X12DDW-A6 |
| Physical Stats |
| Form Factor | Proprietary WIO |
| Dimension | 12.288" x 13.404" (31.21cm x 34.05cm) |
| Processor |
| CPU | 3rd Gen Intel® Xeon® Scalable processors |
| Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s |
| Core | Up to 40 cores |
| Expansion Slots |
| PCIe | 1 PCIe 4.0 x16 Right Riser Slot, |
| 1 PCIe 4.0 x16 Left Riser Slot, |
| 2 PCIe 4.0 x16 Center Right Hand Slot, |
| 2 PCIe 4.0 x16, AIOM slots Superset of OCP 3.0 Expansion |
| M.2 | Key: M-Key |
| M.2 Interface: 2 PCIe 3.0 x2 |
| Form Factor: 2260/2280 |
| Operating Environment |
| Operating Temperature Range | 10°C - 35°C (50°F - 95°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
