| System Memory |
| Memory Capacity | 2 DIMM slots |
| Up to 64GB ECC/non-ECC SODIMM, DDR4-2933MHz |
| Memory Type | 2933/2666/2400/2133 MT/s ECC/non-ECC DDR4 SODIMM |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel® W480E |
| Audio | ALC 888S HD Audio |
| Graphics | 1 Intel® HD Graphics port(s) |
| Network Controllers | Single LAN with Intel® Ethernet i225V |
| Single LAN with Intel® Ethernet i225LM |
| SATA | Intel® W480E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Input / Output |
| LAN | 2 RJ45 2.5 Gigabit Ethernet LAN port |
| Video Output | 1 DP (DisplayPort) port(s), 1 HDMI port(s) |
| DOM | 1 Super DOM (Disk on Module) ports |
| SATA | 4 SATA3 (6Gbps) port(s) |
| USB | 4 USB 2.0 port(s) (4 via header) |
| 4 USB 3.2 Gen2 port(s) (4 rear type A) |
| Serial Port | 1 COM Port(s) (1 header) |
| TPM | 1 TPM Header & Chip both |
| System BIOS |
| BIOS Type | AMI UEFI |
| BIOS Features | RTC (Real Time Clock) Wakeup |
| UEFI 2.7 |
| PCI FW 3.0 |
| ACPI 6.1 |
| SMBIOS 3.1 |
| Management |
| Software | SuperDoctor® 5, NMI, Watchdog |
| System Management Software | SuperDoctor 5 |
| Power Configurations | ATX Power connector, ACPI / ACPM Power Management, +12V DC Power Input |
| PC Health Monitoring |
| Voltage | VBAT, System temperature, System level control, PCH temperature, Monitors CPU voltages, HT, CPU temperature, Chipset Voltage, 3 -fan status, +3.3V, +1.8V |
| LED | Power LED |
| Temperature | Thermal Control for 3 Fan Connectors |
| Other Features | WOL, System level control, RoHS, M.2 NGFF connector, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source |
| FAN | Fan speed control |
| PWM fan speed control |
| System level control |
| 3x 4-pin fan headers (up to 3 fans) |
| 3 fans with tachometer monitoring |
| Product SKUs |

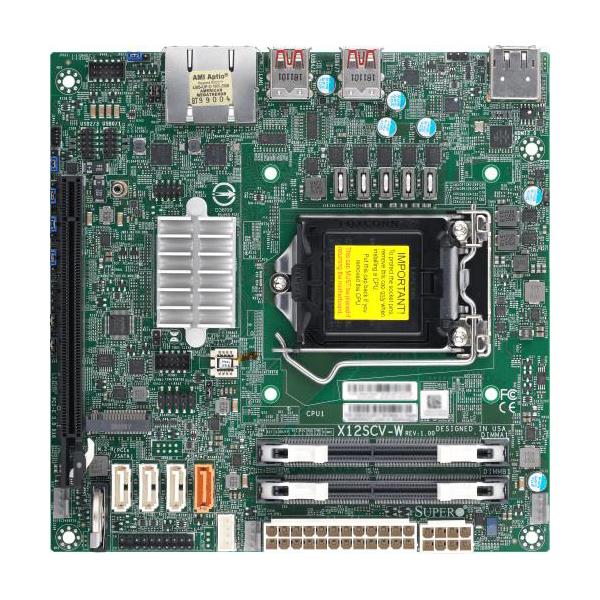

| Product SKUs | MBD-X12SCV-W |
| Physical Stats |
| Form Factor | Mini-ITX |
| Dimension | 6.7" x 6.7" (17.02cm x 17.02cm) |
| Processor |
| CPU | Intel® Xeon® W-1200 Processors , 11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 Processor |
| Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 65W TDP |
| Core | Up to 10 cores |
| Note | ** Motherboard supports this maximum TDP. Please verify your system can thermally support. **The X12SCV-W does not support the Intel 10th/11th generation processor 2M cache SKUs. These processors will not boot with the latest BIOS version. |
| Expansion Slots |
| PCIe | 1 PCIe 3.0 x16 slots (16/NA or 8/8) |
| M.2 | Form Factor: 2280 |
| Key: M-Key |
| M.2 Interface: 1 PCIe 3.0 x4 |
| Operating Environment |
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) |
