| System Memory |
| Memory Capacity | 4 DIMM slots |
| 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz |
| Memory Type | 128GB 3200MHz |
| DIMM Sizes | 2GB, 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | 1.2V |
| On-Board Devices |
| Chipset | Intel® W580 |
| Audio | ALC 888S HD Audio |
| Network Controllers | Single LAN with Intel® PHY I219LM LAN controller |
| Single LAN with Intel® Ethernet i225V |
| SATA | Intel® W580 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Input / Output |
| LAN | 1 RJ45 Gigabit Ethernet LAN ports |
| 1 RJ45 2.5 Gigabit Ethernet LAN port |
| Video Output | 1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.0b port(s) |
| USB | 2 USB 2.0 port(s) (2 via header) |
| 4 USB 3.2 Gen2 port(s) (4 rear type A) |
| 2 USB 3.2 Gen1 port(s) (2 via header) |
| 2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header) |
| Serial Port | 1 COM Port(s) (1 header) |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Type | 256MB SPI Flash with AMI BIOS |
| BIOS Features | ACPI 6.0 |
| Plug and Play (PnP) |
| SMBIOS 3.0 or later |
| BIOS rescue hot keys |
| Riser card auto-detection support |
| Management |
| Software | SuperDoctor® 5, AMT, vPro, Watchdog |
| System Management Software | SuperDoctor 5 |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN |
| PC Health Monitoring |
| Voltage | VBAT, System temperature, PCH temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +1.8V PCH |
| LED | Power LED |
| Catastrophic Error LED |
| Other Features | CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector |
| FAN | Fan speed control |
| Overheat LED indication |
| 5x 4-pin fan headers (up to 5 fans) |
| Product SKUs |

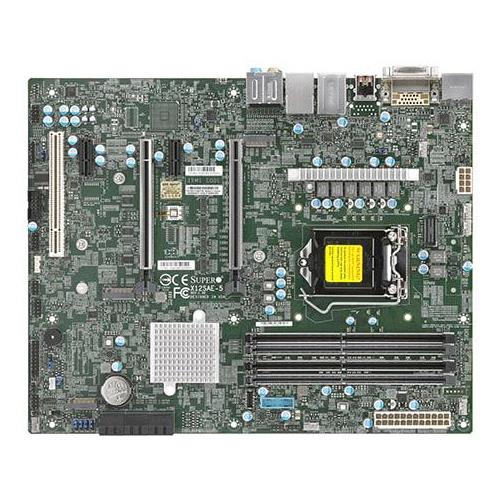

| Product SKUs | MBD-X12SAE-5 |
| Physical Stats |
| Form Factor | ATX |
| Dimension | 12" x 9.6" (30.48cm x 24.38cm) |
| Processor |
| CPU | 10th/11th Gen Intel® Core™ i9/i7/i5/i3 Processors, Intel® Xeon® W-1200/W-1300 Processors |
| Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP |
| Core | Up to 10 cores |
| Expansion Slots |
| PCIe | 2 PCIe 4.0 x16 slots (16/NA or 8/8), |
| 2 PCIe 3.0 x1, |
| 1 PCI PCI 5V 32bit |
| M.2 | Key: M-Key |
| Form Factor: 2280/22110 |
| M.2 Interface: 1 PCIe 4.0 x4, RAID 0 & 1; 2 PCIe 3.0 x4 |
| Operating Environment |
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) |
| Non-Operating Temperature Range | -20°C - 60°C (-4°F - 140°F) |
