| System Memory |
| Memory Capacity | 4 DIMM slots |
| Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MHz |
| Memory Type | 3200/2933/2666 MT/s SDRAM |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| On-Board Devices |
| Chipset | Intel® C256 |
| IPMI | ASPEED AST2600 BMC |
| Graphics | 1 ASPEED AST2600 BMC port(s) |
| Network Controllers | Dual LAN with Intel® X550 10GBase-T Ethernet Controller |
| SATA | Intel® C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Input / Output |
| LAN | 2 RJ45 10 Gigabit Ethernet LAN ports |
| Video Output | 1 VGA port(s) |
| DOM | 2 SATA DOM (Disk on Module) power connector support |
| SATA | 8 SATA3 (6Gbps) port(s) |
| USB | 6 USB 2.0 port(s) (4 via header; 2 rear) |
| 4 USB 3.2 Gen1 port(s) (2 via header; 2 rear) |
| 1 USB 3.2 Gen2 port(s) (1 type A) |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Type | 256MB UEFI |
| BIOS Features | USB Keyboard support |
| ACPI 6.0 |
| Plug and Play (PnP) |
| RTC (Real Time Clock) Wakeup |
| PCI 3.0 |
| UEFI 2.7 |
| SMBIOS 3.3 |
| Management |
| Software | SuperDoctor® 5, NMI, SUM , SPM , Intel® Node Manager, SSM , IPMI2.0 , Watchdog |
| System Management Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support |
| Power Configurations | ACPI Power Management |
| PC Health Monitoring |
| Voltage | VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages |
| LED | UID/Remote UID |
| CPU / System Overheat LED |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| Thermal Monitor 2 (TM2) support |
| PECI |
| Other Features | WOL, UID, Node Manager Support, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ACPI power management |
| FAN | 6 fans with tachometer status monitoring |
| Fan speed control |
| Thermal control tachometer fan connectors |
| 6x 4-pin fan headers (up to 6 fans) |
| Overheat LED indication |
| Product SKUs |

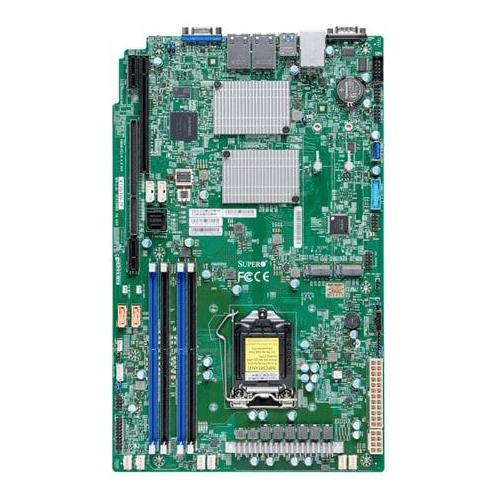

| Product SKUs | MBD-X12STW-TF |
| Physical Stats |
| Form Factor | Proprietary WIO |
| Dimension | 8" x 13" (20.32cm x 33.02cm) |
| Processor |
| CPU | 10th Generation Intel® Pentium® Processor, Intel® Xeon® E-2300 Processor |
| Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP |
| Core | Up to 8 cores, 16 threads |
| Expansion Slots |
| PCIe | 1 PCIe 3.0 x4 (in x8 slot) |
| 1 PCIe 4.0 x16 Left Riser Slot, |
| M.2 | Key: M-Key |
| Double Height Connector |
| Form Factor: 2280/22110 |
| M.2 Interface: 1 PCIe 4.0 x4; 1 PCIe 3.0 x4 |
| Operating Environment |
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
