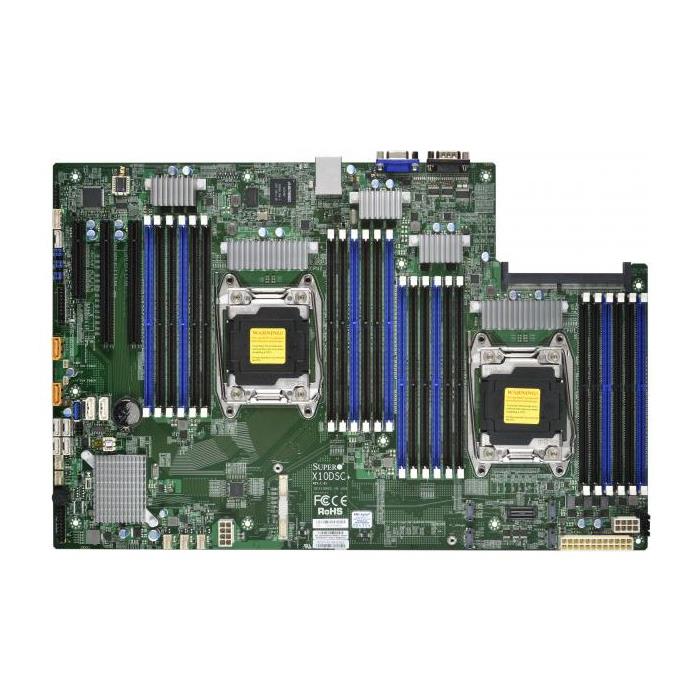

Supermicro X10DSC+-P Motherboard Proprietary Dual Socket R3 (LGA 2011) Intel Xeon E5-2600 v3/v4 Processors
4 Port NVMe PCI-E 3.0 x4 via OCuLink
Up to 3TB 3DS ECC LRDIMM, in 24 DIMM slots
Supports dual Intel E5-2600 v4 Series processors
Ideal for database storage and virtualization server platforms
Motherboard Proprietary, Supports Dual Socket R3 (LGA 2011), Supporting Intel Xeon E5-2600 v3/v4 Processors (Up to 22-Core/Up to 55MB Cache). With Intel C612 Chipset, up to 768GB Reg ECC RDIMM memory, 10x SATA3 RAID 0,1,5,10 - MBD-X10DSC+-P
The Super X10DSC+ motherboard supports dual Intel E5-2600v3/v4 Series processors (Socket R3) which offer the new Intel microarchitecture 22nm (E5-2600v3)/14nm (E5-2600v4) process technology with QuickPath Interconnect (QPI) speeds of up to 9.6 GT/s, delivering system performance, power efficiency, and feature sets that are required for next-generation server platforms. With the PCH C612 built-in, the X10DSC+ motherboard provides up to 3072 GB of 24 DDR4 2400 MHz DIMM modules, 60-bay 4U storage, 2U 48-NVMe storage, SAS hardware/software RAID configuration, and SIOM networking option support.
Key Features
Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/v3 family, UPI up to 9.6GT/s
Intel C612 chipset
Up to 3TB ECC 3DS LRDIMM, up to
DDR4- 2400MHz, 24x DIMM slots
2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x8 for SAS3 Add-on Module
SIOM for flexible networking options
4 SATA3 (6Gbps), RAID 0, 1, 5, 10
Integrated IPMI 2.0 and KVM with Dedicated LAN
3 USB 3.0 (2 rear, 1 Type A)
4 Port NVMe PCI-E 3.0 x4 via OCuLink
Extra Specifications for Supermicro X10DSC+-P Motherboard Proprietary Dual Socket R3 (LGA 2011) Intel Xeon E5-2600 v3/v4 Processors
| Main Specifications | ||
| Device Type | Motherboard | |
| Form Factor | Proprietary | |
| Dimensions (WxDxH) | 17.0" x 10.4" (43.18cm x 26.42cm) | |
| Processor | ||
| Compatible Processors | Intel Xeon processor E5-2600 v3, Intel Xeon processor E5-2600 v4 | |
| Compatible Socket | Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W, 1 QPI up to 9.6GT/s | |
| Cache/Core | Up to 22 Cores / Up to 55MB Cache | |
| System Memory | ||
| Memory Capacity | Up to 768GB Registered ECC RDIMM, DDR4-2400MHz, Up to 3TB 3DS ECC LRDIMM, in 24 DIMM slots | |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | RDIMM: 4GB, 8GB, 16GB, 32GB, LRDIMM: 32GB, 64GB, 3DS LRDIMM: 128GB | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel C612 | |
| SATA RAID | Intel C612 controller for 10 SATA3 (6 Gbps) ports, RAID 0,1,5,10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, ASPEED AST2400 BMC | |
| Network Controllers | Quad LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Via SIOM Module | |
| Graphics | Aspeed AST2400 BMC | |
| SATA | 4 SATA3 (6Gbps) port(s) | |
| VGA | 1 VGA port | |
| Input / Output | ||
| LAN | 1 Flexible LAN expansion via SIOM module, 1 RJ45 Dedicated IPMI LAN port | |
| USB(s) | 3 USB 3.0 ports (2 rear + 1 Type A) | |
| Serial Port / Headers | 2 COM Ports (1 rear, 1 header), 2 fast UART 16550 serial | |
| TPM | 1 TPM Header | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1 PCI-E 3.0 x8, 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 for Add-On-Module (AOM), 4 Port NVMe PCI-E 3.0 x4 via OCuLink | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | Plug and Play (PnP), PCI 2.3, ACPI 1.0 / 2.0 / 3.0 / 4.0, USB Keyboard support, SMBIOS 2.7.1, UEFI 2.3.1 | |
| Management | ||
| Software | Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor 5, Watchdog | |
| Power Configurations | ACPI Power Management, Power-on mode for AC power recovery | |
| FAN | 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control | |
| PC Health Monitoring | ||
| Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 Phase-switching voltage regulator, Memory Voltages, Monitors for CPU Cores, VBAT | |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI | |
| LED | CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID | |
| Other Features | Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC | |
| Environmental | ||
| Operating Environment | Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) | ||
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) | ||
| Operating Temperature Range: 10°C - 35°C (50°F - 95°F) | ||
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
