Intel Optane Memory Supported
Intel Software Guard Extensions (Intel SGX)
Max Turbo Frequency: 3.40 GHz with 24 Core
Intel Transactional Synchronization Extensions

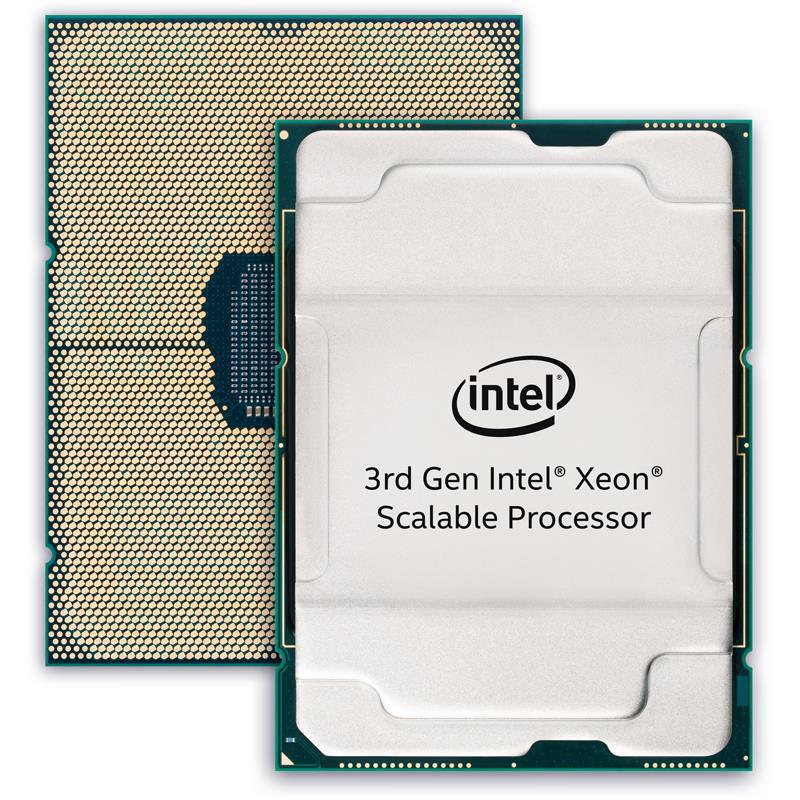

Processor 2.1GHz Xeon Gold 5318S 24-Core (48 Threads) FCLGA4189 11.2GT/s 36MB 10nm 165W 1P/2P OEM, Tray
Advanced Technologies
Intel Speed Select Technology – Core Power
Intel Speed Select Technology – Turbo Frequency
Intel Deep Learning Boost (Intel DL Boost)
Intel Speed Select Technology - Performance Profile
Intel Speed Select Technology - Base Frequency
Intel Resource Director Technology (Intel RDT)
Intel SpeedShift Technology
Intel Turbo Boost Technology 2.0
Intel Hyper-Threading Technology
Intel Virtualization Technology
Intel Virtualization Technology for Directed I/O
Intel VT-x with Extended Page Tables
Intel Transactional Synchronization Extensions
Intel 64
Instruction Set Extensions: Intel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512
# of AVX-512 FMA Units: 2
Intel® Volume Management Device (VMD)
| Main Specifications | ||
| Device Type | Processor | |
| Processor Number | 5318S | |
| Clock Speed | 2.10 GHz | |
| Max Turbo Speed | 3.40 GHz | |
| Multi-Core Technology | 24-core | |
| Number of Threads | 48 | |
| QPI/UPI | Number of UPI Links: 3 | |
| Manufacturing Process | 10 nm | |
| Product Collection | 3rd Generation Intel Xeon Scalable Processor | |
| Code Name | Products formerly Ice Lake | |
| Vertical Segment | Server | |
| Processor | ||
| Cache | 36 MB | |
| Thermal | ||
| Desigh Power | 165 W | |
| Memory Specifications | ||
| Max Memory Size (dependent on memory type) | 6 TB | |
| Memory Types | DDR4-2933 | |
| Maximum Memory Speed | 2933 MHz | |
| Max # of Memory Channels | 8 | |
| ECC Memory Supported | Yes | |
| Intel Optane Persistent Memory Supported | Yes | |
| Expansion Options | ||
| Scalability | 2S | |
| PCI Express Revision | 4.0 | |
| Max # of PCI Express Lanes | 64 | |
| Package Specifications | ||
| Sockets Supported | FCLGA4189 | |
| Case Temperature | 87°C | |
| Package Size | 77.5x56.5mm | |
| Security Features | ||
| Security Features | Intel AES New Instructions, Intel Software Guard Extensions (Intel SGX): Yes with Intel SPS, Intel Trusted Execution Technology, Execute Disable Bit, Intel Run Sure Technology, Mode-based Execute Control, Intel Total Memory Encryption, Intel Platform Firmware Resilience Support, Maximum Enclave Size Support for Intel SGX: 512 GB, Intel Crypto Acceleration | |
| Miscellaneous | ||
| Package Type | OEM, Tray | |
| Warranty: | 1 year |
| Provider: | Intel |
| Phone No.: | 305-640-0300 |
| E-mail: | returnservices@wiredzone.com |
| URL: | Click here for Manufacturer Website |
| Coverage: | Replacement or repair |
| Average Service Time: | 1 year of overnight replacement |
| If you need Technical Support for this item please contact: | |
| Provider: | Intel |
| Type of Support: | FULL |
| Phone No.: | 916-377-7000 |
| URL: | Click here for Manufacturer Website |
