- Supermicro CSE-833T-653B Server Chassis 3U Rackmount

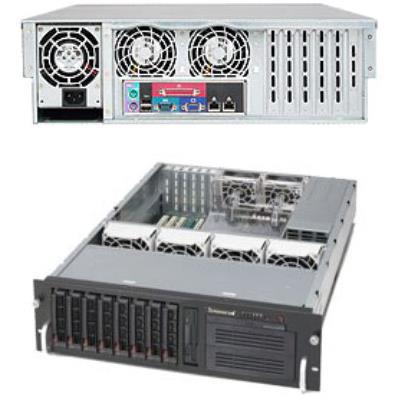

Supermicro CSE-833T-653B Server Chassis 3U Rackmount
Rackmount 3U w/ 650W 80 Plus Gold Certified Power Supply, for Up E-ATX Motherboard, for Dual Xeon / AMD processors - Includes 8x 3.5in SATA Hot-Swap Drive Bays, 2x 5.25in Peripheral Drive Bay, 1x 3.5in Drive Bay, 1x Slim CDROM Drive Bay, 6x PCI Expansion slots, SIMLC Support Only, Mounting Rails Kit (CSE-PT50) - (Black)
1. 650W High-efficiency Gold Level Power Supply with Power Switch
2. 8x 3.5" Hot-swap SATA & 2x 5.25" Drive Bays
3. Support Optional Slim DVD-ROM/DVD-RW
4. Support Optional Hot-swap Slim HDD/SSD Drive Kits and Mobile Racks
5. 6x Full-height, Full-length Expansion Slots
6. Six Internal Fans (4 middle, 2 rear) for 100% Cooling Redundancy
7. Six LED Indicators
8. Adjustable Air Shroud Design
Extra Specifications for Supermicro CSE-833T-653B Server Chassis 3U Rackmount
Processor Support | ||
Processor Support | Dual and Single Intel® and AMD processors | |
Front Panel | ||
Buttons | Power On/Off button | |
System Reset Button | ||
LEDs | Power LED | |
2 Network Activity LEDs | ||
HDD activity LED | ||
System Overheat LED | ||
Operating Environment (System) | ||
Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
Power Supply | ||
Certification | Certified | |
Power Supply | PWS-652-2H | |
Dimensions (L x W x H) | 308 x 106 x 83.2 mm | |
Output Type | 20pin ATX | |
+12V | Max: 54A | |
+5V | Max: 30A | |
+3.3V | Max: 25A | |
+5Vsb | Max: 4A | |
Product SKUs | ||
Product SKUs | - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply | |
Form Factor | ||
Form Factor | 3U chassis - supports maximum motherboard sizes up to 12" x 13" E-ATX | |
Dimensions | ||
Height | 5.2" (132 mm) | |
Width | 17.7" (450 mm) | |
Depth | 25.5" (647 mm) | |
Gross Weight | 69 lbs (31.3 kg) | |
Packaging (W x H x L) | 26.6" (676 mm) x 13.6" (345 mm) x 34.6" (879 mm) | |
Available Color | Black | |
Expansion Slots | ||
Expansion Slots | 6 full-height & full-length expansion slot(s) | |
Drive Bays | ||
Drive Bays | 8 x 3.5" hot-swap drive bay | |
Backplane | ||
Backplane | SATA back panel for SC833 chassis | |
Peripheral Drives | ||
Peripheral Drives | 2 x standard 5.25" drive bay | |
Optional 1 x slim DVD-ROM drive bay | ||
Optional 1 x 3.5" internal fixed drive bay | ||
Systems Cooling | ||
Fans | 2 x 80mm rear hot-swap exhaust PWM fan(s) | |
4 x 9cm hot-swap cooling fan(s) | ||
System Monitoring | ||
System Monitoring | Chassis intrusion switch |
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
Front USB | SC-PT29(B) | 0 | 2-Ports Front USB Kit (B=Black) | |||
LCD Module | MCP-220-00095-0B | $ 90.00 | 0 | 5.25" USB LCD Kit | ||
HDD Tray | MCP-220-00118-0B | $ 31.50 | 0 | Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH | ||
HDD Kit | MCP-220-81506-0N | $ 81.50 | 0 | 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED | ||
DVD-ROM / DVD-RW | DVM-TEAC-DVDRW-SBT4 | 0 | BLACK TEAC SLIM DVD-RW SATA DRIVE,RoHS | |||
DVD-ROM / DVD-RW | DVM-TEAC-DVD-SBT4 | 0 | BLACK TEAC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH | |||
DVD-ROM / DVD-RW | DVM-PNSC-DVD-SBT3 | 0 | BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH | |||
SATA DVD Kit | MCP-220-81502-0N | $ 28.50 | 0 | Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842 | ||
Mobile Rack | CSE-M14TQC | $ 144.50 | 0 | Black SAS3/SATA3 Mobile Rack for 4x 2.5 | ||
Mobile Rack | CSE-M28SAB-OEM | $ 199.50 | 0 | Black SAS/SATA Mobile Rack for 8x 2.5" HDD w/o fan module | ||
Mobile Rack | CSE-M28SACB-OEM | $ 200.50 | 0 | Black SAS3/SATA3 Mobile Rack for 8x 2.5" HDD w/o fan module,HF,RoHS/REACH,PBF |
Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
