- Supermicro SYS-530MT-H12TRF Microcloud 3U Barebone Single Intel Xeon E-2300 series and Pentium processor UP to 512GB DRAM SATA3, NVMe, M.2 Dual 1GbE

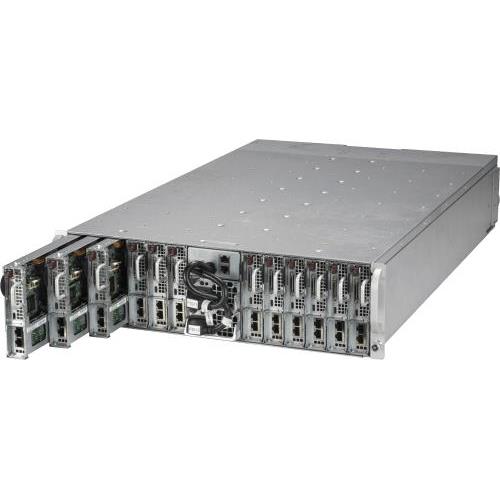

Supermicro SYS-530MT-H12TRF Microcloud 3U Barebone Single Intel Xeon E-2300 series and Pentium processor UP to 512GB DRAM SATA3, NVMe, M.2 Dual 1GbE
• Cloud Computing
• Web Hosting, VM
• Online Game Server Hosting
• IT Infrastructure
• Web Cache
• Social Networking
Barebone 3U Rackmount SuperServer Intel Xeon E-2300 series and Pentium processor, Intel C256 Chipset, Up to 512GB in 4 DIMM Slots, SATA3, NVMe and M.2, 2x 3.5in NVMe/SATA drive bays, (4x 2.5in NVMe hybrid, 2x 3.5in NVMe hybrid), 1 M.2 NVMe OR 1 M.2 SATA3, 2x 1GbE LAN Ports, 2200W Redundant Power Supply (CSE-939HN-R2K20BP + X12STE-F)
This product is no longer available.
1. 12 set of Intel® Xeon® E-2300 series and Pentium processor
2. Intel® C256
3. 12 set of Up to 128GB ECC/non ECC Very Low Profile UDIMM; DDR4 3200MHz, in 4 DIMM sockets
4. 12 set of PCIe 4.0 x8 Micro-LP slots (MicroLP upgradable)
5. 12 set of Dual 1GbE LAN Ports
6. 12 set of 2x internal 3.5" SATA3 (6Gbps) (or) 4x 2.5" SATA3 drives with 2x Hybrid NVMe U.2; Intel® RSTe RAID
7. 4x 8cm Heavy duty fans with optimal cooling zone
8. 2200W Redundant Titanium Level high-efficiency power supplies with PMBus
Extra Specifications for Supermicro SYS-530MT-H12TRF Microcloud 3U Barebone Single Intel Xeon E-2300 series and Pentium processor UP to 512GB DRAM SATA3, NVMe, M.2 Dual 1GbE
| Motherboard | ||
| Motherboard | Super X12STE-F | |
| Processor (per Node) | ||
| CPU | Single Socket H5 (LGA 1200,Socket H5 LGA 1200) | |
| Intel® Xeon® E-2300 series and Pentium processor,Support Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors | ||
| Support CPU TDP 80-95W | ||
| Cores | Up to 8C/16T; Up to 16MB Cache | |
| System Memory (per Node) | ||
| Memory | Memory Capacity: 4 DIMM slots | |
| Up to 128: 4x 32 GB DRAM | ||
| Memory Type: 3200MHz ECC DDR4 UDIMM | ||
| On-Board Devices (per Node) | ||
| SATA | SATA (6Gbps) via Intel® C256; RAID 0, 1, 5, 10 support | |
| Chipset | Intel® C256 | |
| Network Connectivity | No NIC option supported | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output (per Node) | ||
| SATA | 2 SATA3 port(s) | |
| LAN | 2 | |
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 KVM) | |
| DOM | 1 SATA DOM (Disk on Module) port | |
| System BIOS | ||
| BIOS Type | AMI 128MB SPI Flash EEPROM | |
| Management | ||
| Software | Watch Dog | |
| Intel Node Manager | ||
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI 6.0 Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. | |
| 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V | ||
| FAN | Cooling zone | |
| Temperature | Monitoring for CPU and chassis environment | |
| Chassis | ||
| Form Factor | 3U Rackmount | |
| Model | CSE-939HN-R2K20BP | |
| Dimensions and Weight | ||
| Height | 5.21" (132.5mm) | |
| Width | 17.5" (444.5mm) | |
| Depth | 29.5" (749.3mm) | |
| Package | 16.1" (H) x 28.35" (W) x 42.36" (D) | |
| Weight | Net Weight: 95 lbs (43.09 kg) | |
| Gross Weight: 125 lbs (56.7 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| Buttons | Power On/Off | |
| LEDs | UID LED | |
| Drive Bays / Storage (per Node) | ||
| Drive Bays | 2x 3.5" NVMe/SATA drive bays (or 4x 2.5" drives, with 2 NVMe/SATA3 hybrid connectors available) | |
| M.2 | 1 M.2 NVMe OR 1 M.2 SATA3 | |
| System Cooling | ||
| Fans | 4x 9cm heavy duty fans with optimal fan speed control | |
| Air Shroud | 12 Air Shroud(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| AC Input | 1200W: 100-127Vac / 11A-14A / 50-60Hz | |
| 2200W: 220-240Vac / 11A-12A / 50-60Hz | ||
| +12V | Max: 100A / Min: 0A (100Vdc-127Vdc) | |
| Max: 183.33A / Min: 0A (220Vdc-240Vdc) | ||
| 5V SB | Max: 1A / Min: 0A | |
| Output Type | 27 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SYS-530MT-H12TRF | |
| Expansion Slots (per Node) | ||
| PCI-Express (PCIe) | 1 PCIe 4.0 x8 MLP slot(s) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12STE-F | 12 | Super X12STE-F Motherboard | |
| Motherboard / Chassis | CSE-939HN-R2K20BP | 1 | 3U Chassis | |
| Add-on Card / Module | AOM-BPN-MC12SN-P | 12 | 2x NVMe U.2 + 2 NVMe SATA connectors BPNforMicroCloud12n | |
| Add-on Card / Module | AOM-CGP-I2M-P | 12 | MicroLP 2-port GbE RJ45, Intel i350 for 12 node MicroCloud | |
| Add-on Card / Module | AOM-LAN-MC12S-P | 1 | AOM-LAN-MC12S-P | |
| Add-on Card / Module | AOM-PDB-MC12S-P | 12 | AOM-PDB-MC12S-O-P | |
| Add-on Card / Module | AOM-GEM-001-P | 1 | AOM-GEM-001-O-P | |
| Backplane | BPN-SAS-939HS | 1 | (EOL)CSE939HS MicroCloud (12 nodes) Hot-Swap Backplane | |
| Cable | CBL-0218L | 1 | 11.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB | |
| Cable | CBL-PWCD-0578-1 OR | 2 | PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS | |
| Cable | CBL-PWCD-0578-IS | 0 | PWCD,US,IEC60320 C14 TO C13,910mm,14AWG,15A,250V,Black, RoHS | |
| Cable | CBL-0355L | 2 | RJ45 C5E 2ft Green With Cover | |
| Cable | CBL-CDAT-0662 | 1 | 8 Pin to 8 Pin Round SGPIO Cable, 61.5cm, 28AWG, Pinout 1-1 | |
| Cable | CBL-PWCD-0859 | 1 | PWCD,US,IEC60320 C14 TO RA C13 w/SR for 939HS PSU1,3FT,14AWG | |
| Cable | CBL-PWCD-0860 | 1 | PWCD,US,IEC60320 C14 TO RA C13 w/SR for 939HS PSU2,3FT,14AWG | |
| Air Shroud | MCP-310-93904-0N | 12 | Mylar air shroud for VLP 4 DIMM (short gap, quick install) | |
| Software | SFT-OOB-LIC | 12 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0047PSR OR | 12 | LP CPU Heat Sink for 12-node Micro Cloud Series Servers | |
| Heatsink / Retention | SNK-P0047PSRK | 0 | Low Profile CPU Heat Sink for MBI-6119G-C2 Micro Blade Server | |
| *Power Supply | PWS-2K20F-1R | 2 | 1U 2200W Redundant, Titanium,76(W) X 40(H) X 360(L) mm, flow in air | |
| *Power Distributor | PDB-PT939-DSG | 2 | Adapter Board for SC939 special gold finger directly plug to BP. | |
| *Fan | FAN-0195L4 | 4 | 92x92x76 mm Counter-rotating Cooling Fan for 3U12N Microclou | |
| *Rail Set | MCP-290-41803-0N | 1 | Fat twin F418 / F424 Static Rail set support 28.5-33.7 inch depth rail,RoHS/REACH,PBF |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Add-on Card / Module | AOM-BPN-MC12S4-P | $ 254.50 | 12 | 4x NVMe U.2 connectors BPN for MicroCloud 12 node system,HF,RoHS | ||
| Bracket | MCP-290-93903-0N-PACK | $ 343.50 | 1 | SC939HN bracket with FAN | ||
| Bracket | MCP-240-93912-0N | $ 23.50 | 12 | Bracket for 4NVMe MB tray with NVMe standoff | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Network Card(s) | AOM-C25G-m1SM | 0 | MicroLP, 1x 25GbE SFP28, PCIe 3.0 x8, Mellanox® | |||
| Network Card(s) | AOM-CTGS-i2TM | 0 | MicroLP, 2x 10GbE Base-T, PCIe 3.0 x4, Intel® X550 | |||
| Network Card(s) | AOM-CTG-i1SM | 0 | MicroLP, 1 x 10GbE SFP+, PCIe 2.0 x8, Intel® 82599EN, ver 1.21 only | |||
| Network Card(s) | AOM-CIBF-m1M | 0 | MicroLP, 1 x 40GbE QSFP, PCIe 3.0 x8, Mellanox® ConnectX-3 FDR controller | |||
| Network Card(s) | AOM-CTG-i2SM-12 | 0 | MicroLP 2x 10GbE SFP+, PCIe 3.0 x8, Intel 82599ES | |||
| Network Card(s) | AOM-C25G-i2SM-12 | 0 | MicroLP module 2-Port 25G SFP28, Intel E810-XXVAM2, for MicroCloud 12node | |||
| Network Card(s) | AOM-CTG-B2TM | $ 292.50 | 0 | MicroLP 2-port 10G RJ45, Broadcom BCM57416. RoHS | ||
| SATA DOM | MEM-IDSAHM3A-016G | 0 | SATA3 DOM SH 3ME 16GB MLC 1ch Horizontal | |||
| SATA DOM | MEM-IDSAHM3A-032G | 0 | SATA3 ServerDOM MH 3ME 32GB MLC w/ Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHM3A-064G | 0 | SATA3 ServerDOM MH 3ME 64GB MLC w/ Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHM3A-128G | 0 | SATA3 DOM SH 3ME3 V2 128GB MLC w/ Pin8 VCC Horizontal | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
