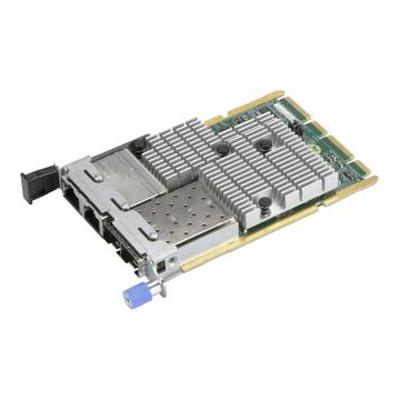

| Add-on Card | The Supermicro is one of the most feature rich 25GbE controllers in the market. Based on the Mellanox® with features such as VXLAN and NVGRE; it provides flexible connectivity for different networking requirements. It is compatible with 10GbE networks and offers the most cost effective upgrades from 10GbE to 25GbE in Data Center and Cloud deployments. The also supports an additional 2 ports of 10GbE RJ45 connectivity, based on the controller, providing NC-SI for Remote Management. This versatile 25GbE controller is an excellent choice to enhance data center network connectivity when high speed throughput is required. To order, contact your distributor. This product is only available through Supermicro. |
| Compliance |
| RoHS | RoHS Compliant 6/6 |
| Specifications |
| Cables Support | 25GbE SFP28: Direct attach copper cables and Fiber-optic cables (with required optional transceivers) |
| 10GbE RJ45: RJ-45 Category-6 up to 55m; Category-6A up to 100m |
| Power Consumption | Maximum: 25W |
| Operating Conditions | Storage humidity: 90% non-condensing relative humidity at 35°C |
| Storage condition: -40°C to 70°C (-40°F to 158°F) |
| Physical Dimensions | Card PCB dimensions: 115mm (4.528in) x 76mm (2.992in) (D x W) |
| Advanced I/O Module (AIOM) Form Factor |
| Downloads |
| User's Guide | [ https://www.supermicro.com/about/policies/disclaimer_manuals.cfm?url=/manuals/other/AOC-AH25G-m2S2TM.pdf ] |
| Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-AH25G-m2S2TM.pdf ] |
| Driver (25GbE) | Choose the latest CDR-NIC folder, and then click on Mellanox folder for driver [ https://www.supermicro.com/wdl/Networking_Drivers/ ] |
| Driver (10GbE) | Choose the latest CDR-NIC folder, and then click on Intel folder for driver [ https://www.supermicro.com/wdl/Networking_Drivers/ ] |
| Driver CD | Click on the latest CDR-NIC ISO file to download [ https://www.supermicro.com/wdl/Networking_Drivers/ ] |
| 25GbE SFP28 Specifications |
| Enhanced Features | Hardware-based reliable transport |
| Collective operations offloads |
| Vector collective operations offloads |
| 64/66 encoding |
| Dynamically Connected transport (DCT) |
| Enhanced Atomic operations |
| Support for MSI/MSI-X mechanisms |
| Storage Offloads | RAID offload - erasure coding (Reed-Solomon) offload |
| Overlay Networks | Stateless offloads for overlay networks and tunneling protocols |
| Hardware offload of encapsulation of NVGRE and VXLAN overlay networks |
| Hardware-based I/O Virtualization | Single Root IOV |
| Multi-function per port |
| Multiple queues per virtual machine |
| VMware NetQueue support |
| Virtualization | SR-IOV: Up to 256 Virtual Functions |
| SR-IOV: Up to 16 Physical Functions per port |
| CPU Offloads | RDMA over Converged Ethernet (RoCE) |
| TCP/UDP/IP stateless offload |
| LSO, LRO, checksum offload |
| RSS (can be done on encapsulated packet), TSS, HDS, VLAN insertion/stripping, Receive flow steering |
| Intelligent interrupt coalescence |
| Management Features | Remote boot over iSCSI |
| PXE and UEFI |
| OS Support | RHEL/CentOS |
| Windows |
| FreeBSD |
| VMware |
| 25GbE / 10GbE / 1GbE |
| 10GbE RJ45 Specifications |
| Network Features | Jumbo frames up to 15.5KB |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Virtualization Features | Virtualization Features: – Multi-mode I/O Virtualization Operations |
| VXLAN Stateless Offloads |
| NVGRE Stateless Offloads |
| Virtual Machine Device Queues (VMDq) |
| 64 Transmit (Tx) and Receive (Rx) Queue Pairs Per Port |
| FPP – 64 VFs Per Port |
| Support for PCI-SIG SR-IOV Specification |
| IEEE 802.1Q VLAN Support |
| Management Features | Preboot eXecution Environment (PXE) support |
| iSCSI Remote Boot Support and FCoE |
| NC-SI for remote management |
| OS Support | Linux RHEL, Linux SLES |
| Windows |
| FreeBSD |
| VMware |
| MXI-X Support |
