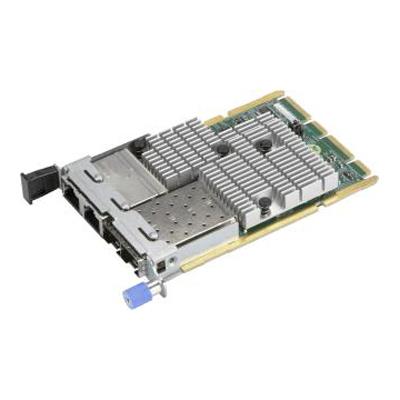

Supermicro AOC-AH25G-M2S2TM Network Adapter Advanced I/O Module (AIOM) Dual SFP28, Dual RJ45

  • Excellent choice for data center network connectivity

  • Jumbo Frames Support, BMC Thermal reading support

  • Dual RJ45 connectors with speed up to 10Gbps per port

  • Dual SFP28 connectors with speed up to 25Gbps per port

Advanced 25Gb Ethernet controller Dual SFP28, connectors, up to 25Gbps per port, Dual RJ45 connectors, up to 10Gbps per port Base on Intel X550-AT2, RoHS Compliant 6/6 (AOC-AH25G-m2S2TM)


    436.50436.50436.5USD

    436.50

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    Advanced 25Gb Ethernet controller in Supermicro Advanced I/O Module (AIOM)

    The Supermicro AOC-AH25G-m2S2TM is one of the most feature-rich 25GbE controllers in the market. Based on the Mellanox ConnectX-4 Lx EN with features such as VXLAN and NVGRE, it provides flexible connectivity for different networking requirements.

    It is compatible with 10GbE networks and offers the most cost-effective upgrades from 10GbE to 25GbE in Data Center and Cloud deployments. The AOC-AH25G-m2S2TM also supports an additional 2 ports of 10GbE RJ45 connectivity, based on the Intel X550 controller, providing NC-SI for Remote Management. This versatile 25GbE controller is an excellent choice to enhance data center network connectivity when high-speed throughput is required.


    Key Features


    • Advanced I/O Module (AIOM) Form Factor

    • Mellanox ConnectX-4 Lx EN 25GbE controller, dual SFP28 connectors

    • Intel X550-AT2 10GbE controller, Dual RJ45 Connectors

    • Hardware offloads for NVGRE, VXLAN, and GENEVE encapsulated traffic

    • SR-IOV for virtualization

    • Low latency RDMA over Converged Ethernet (RoCE) (25GbE Controller only)

    • Jumbo Frames Support

    • NC-SI for Remote Management (10GbE Controller only)

    • BMC Thermal reading support

    Extra Specifications for Supermicro AOC-AH25G-M2S2TM Network Adapter Advanced I/O Module (AIOM) Dual SFP28, Dual RJ45

    Main Specifications
    Device TypeEthernet Adapter Card
    Form FactorAdvanced I/O Module (AIOM)
    Dimensions (WxDxH)Card PCB dimensions: 115mm (4.528in) x 76mm (2.992in) (D x W)
    Connectivity
    ConnectorsDual SFP28, Dual RJ45 connectors
    Software / System Requirements
    OS SupportRHEL/CentOS, Windows, FreeBSD, VMware
    Miscellaneous
    Cables Required25GbE SFP28: Direct attach copper cables and Fiber-optic cables (with required optional transceivers)
    10GbE RJ45: RJ-45 Category-6 up to 55m; Category-6A up to 100m
    Bracket Included1x BKT-0176L
    Power
    Power Consumption25 Watt
    Environmental
    Operating EnvironmentStorage humidity: 90% non-condensing relative humidity at 35°C
    Storage condition: -40°C to 70°C (-40°F to 158°F)
    NamePart NumberQuantityDescription

    Warranty:3 years labor, 1 year parts, 120 days advanced replacement (doa)
    Provider:Supermicro
    Phone No.:305-640-0300
    E-mail:returnservices@wiredzone.com
    URL:Click here for Manufacturer Website
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
