- Supermicro SSG-2027R-AR24 Storage 2U Barebone Dual Intel Xeon E5-2600 and E5-2600 v2 processor Up to 1TB DRAM LRDIMM SATA3, SAS2 Dual 10GbE, IPMI LAN port
Supermicro SSG-2027R-AR24 Storage 2U Barebone Dual Intel Xeon E5-2600 and E5-2600 v2 processor Up to 1TB DRAM LRDIMM SATA3, SAS2 Dual 10GbE, IPMI LAN port
Barebone 2U Rackmount SuperServer Dual Intel Xeon E5-2600 and E5-2600 v2 processor, Intel C602 Chipset, Up to 1TB in 16 DIMM slots, SATA3 RAID, SAS2 via Broadcom 2208, 24x 2.5in SAS2/SATA3 drive bays, 2x 10GbE BaseT LAN Ports, 920W Redundant Power Supply (CSE-216BA-R920LPB + X9DRH-7TF)
This product is no longer available.
1. Intel® Xeon® processor E5-2600 and E5-2600 v2 family †
2. Up to 512GB DDR3 1600MHz ECC Registered DIMM; 16x DIMM slots
3. 1 PCI-E 3.0 x16 & 4 PCI-E 3.0 x8 slots
4. Intel® x540 Dual 10GBase-T LAN
5. 24x 2.5" Hot-swap SAS2/SATA3 HDD Bays with direct attached backplane (6Gb/s per bay)
6. Onboard Broadcom 2208 SAS HW RAID (BBU optional); 2x Broadcom 2208 SAS AOC
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 3x Heavy duty PWM fans
9. 920W Redundant Power Supplies Platinum Level (94%)
Extra Specifications for Supermicro SSG-2027R-AR24 Storage 2U Barebone Dual Intel Xeon E5-2600 and E5-2600 v2 processor Up to 1TB DRAM LRDIMM SATA3, SAS2 Dual 10GbE, IPMI LAN port
| Main Specifications | ||
| Device Type | SuperServer 2027R-AR24 | |

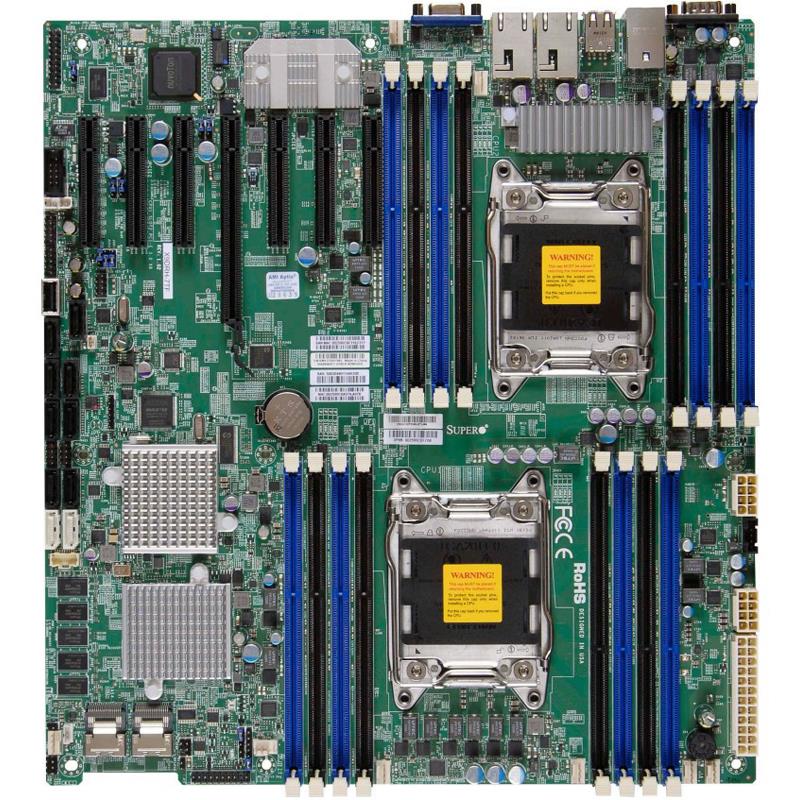

| Built-in Devices | Super X9DRH-7TF | |

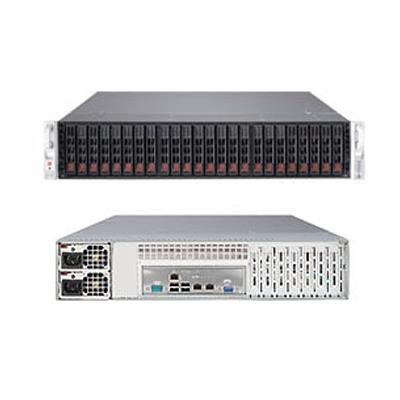

| Form Factor | 2U Rackmount - CSE-216BA-R920LPB | |
| Dimensions (WxDxH) | Width 17.2" (437mm) x Height 3.5" (89mm) x Depth 25.5" (647.7mm) | |
| Weight | 61 lbs (27.7 kg) | |
| Enclosure Color | Black | |
| Processor | ||
| Compatible Processors | Intel Xeon processor E5-2600 and E5-2600 v2 family (up to 130W TDP) | |
| Compatible Socket | Dual Socket R (LGA 2011) | |
| Cache/Cores | Up to 30MB | |
| System Bus | QPI up to 8 GT/s | |
| System Memory | ||
| Memory Capacity | 16x 240-pin DDR3 DIMM slots, Up to 1TB DDR3 ECC LRDIMM, Up to 512 GB DDR3 ECC Registered memory (RDIMM), Up to 128 GB DDR3 ECC Un-Buffered memory (UDIMM) | |
| Memory Type | 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs | |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB, 2GB, 1GB | |
| Memory Voltage | 1.5 V, 1.35 V | |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) | |
| On-Board Devices | ||
| Chipset | Intel C602 Chipset | |
| AHCI SATA | SATA 2.0 3Gbps with RAID 0, 1, 5, 10, SATA 3.0 6Gbps with RAID 0, 1 | |
| SCU SATA | SATA 2.0 3Gbps with RAID 0, 1, 10 | |
| SAS | SAS2 via Broadcom 2208 (1GB cache), HW RAID 0, 1, 5, 6, 10, 50, 60 support | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, Nuvoton WPCM450 BMC | |
| Network Controllers | Intel X540 Dual Port 10GBase-T, Virtual Machine Device Queues reduce I/O overhead, Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output, 1x Realtek RTL8201N PHY (dedicated IPMI) | |
| Graphics | Matrox G200eW | |
| VGA | 1x VGA port | |
| Input / Output | ||
| SATA | SCU SATA: 4x SATA 2.0 ports (3Gbps) | |
| AHCI SATA: 2x SATA 3.0 ports (6Gbps), 4x SATA 2.0 ports (3Gbps) | ||
| SAS | SAS: 24x SAS2 ports (6Gbps) | |
| LAN | 2x RJ45 10GBase-T ports, 1x RJ45 Dedicated IPMI LAN port | |
| USB(s) | 7x USB 2.0 ports total (4 rear + 2 via header + 1 Type A) | |
| Serial Port / Headers | 2x Fast UART 16550 serial COM port (1 rear & 1 header) | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset button | |
| LEDs | Power status LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED, Power fail LED | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1x PCI-E 3.0 x16 slot | |
| 4x PCI-E 3.0 x8 slots | ||
| Expansion Bays Total (Free) | 24x Hot-swap 2.5" SAS2/SATA3 HDD Bays with direct attached backplane | |
| System Cooling | ||
| Fans/Air Shroud | 3x 8cm 9.5K RPM, 4-pin PWM fans | |
| Power Supply | ||
| Power Supply | 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C | |
| Certification | 80PLUS Platinum Certified | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | Plug and Play (PnP), APM 1.2, PCI 2.2, ACPI 1.0 / 2.0, USB Keyboard support, SMBIOS 2.3, UEFI | |
| Environmental | ||
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
| Non-operating Relative Humidity: 5 to 95% (non-condensing) | ||
| Parts List - (Items Included) | ||
| Motherboard / Chassis | MBD-X9DRH-7TF / CSE-216BA-R920LPB | |
| Backplane | 1x BPN-SAS-216A | |
| Heatsink / Retention | 1x SNK-P0048AP4, 1x SNK-P0048PS | |
| Power Supply Number | 2x PWS-920P-SQ | |
| Add-On Card | 2x AOC-S2208L-H8IR | |
| Miscellaneous | ||
| Cables Included | 4x CBL-0281L, 2x CBL-0421L | |
