| Main Specifications |

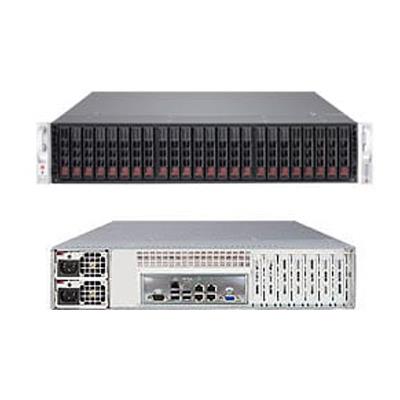

| Device Type | SuperServer 2027R-E1CR24L |
| Built-in Devices | Super X9DRD-EF |
| Form Factor | 2U Rackmount - CSE-216BE1C-R920LPB |
| Dimensions (WxDxH) | Width 17.2" (437mm) x Height 3.5" (89mm) x Depth 24.8" (630mm) |
| Weight | 61 lbs (27.7 kg) |
| Enclosure Color | Black |
| Processor |
| Compatible Processors | Intel Xeon processor E5-2600 and E5-2600 v2 family (up to 130W TDP) |
| Compatible Socket | Dual Socket R (LGA 2011) |
| Cache/Core | Up to 30MB |
| System Bus | QPI up to 8 GT/s |
| System Memory |
| Memory Capacity | 16x 240-pin DDR3 DIMM slots, Up to 1TB DDR3 ECC LRDIMM, Up to 512GB DDR3 ECC Registered memory (RDIMM), Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM) |
| Memory Type | 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | 1.5 V, 1.35 V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel C602J chipset |
| SATA/SAS | SATA 2.0 3Gbps with RAID 0, 1, 5, 10 |
| SATA 3.0 6Gbps with RAID 0, 1, 5, 10 |
| SAS3 via Broadcom 3008 AOC, IT Mode/Pass-through |
| IPMI | Support for Intelligent Platform Management Interface v.2.0, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, Nuvoton WPCM450 BMC |
| Network Controllers | Intel i350 Gigabit Ethernet, Virtual Machine Device Queues reduce I/O overhead, Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output, 1x Realtek RTL8201N PHY (dedicated IPMI) |
| Graphics | Matrox G200eW |
| Input / Output |
| Serial ATA | 2x SATA 3.0 ports (6Gbps), 4x SATA 2.0 ports (3Gbps) |
| SAS/SATA | 8x SAS3 ports (12Gbps) |
| LAN | 2x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port |
| USB(s) | 9x USB 2.0 ports total (4 rear + 4 via header + 1 Type A) |
| Video Output | 1x VGA port |
| Serial Port / Headers | 1x Fast UART 16550 port / 1 Header |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | Power status LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED, Power fail LED |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 6x PCI-E 3.0 x8 slots (Low-profile, HL) |
| Slot 1 & 2 Occupied by JBOD Expansion Port and HBA |
| Drive Bays |
| Hot-swap | 24x 2.5" Hot-swap SAS3/SATA3 HDD bays |
| Backplane |
| Backplane | SAS3 Backplane: SAS3 12Gbps single expander backplane, w/ 24x SAS3 2.5" drive slots and 4x HD mini-SAS3 cable connectors for SAS3 uplink/downlink |
| System Cooling |
| Fans/Air Shroud | 3x 8cm 9.5K RPM, 4-pin PWM fans |
| Power Supply |
| Power Supply | 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C |
| Certification | 80PLUS Platinum Certified |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | Plug and Play (PnP), APM 1.2, PCI 2.2, ACPI 1.0 / 2.0, USB Keyboard support, SMBIOS 2.3, UEFI |
| Environmental |
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Parts List - (Items Included) |
| Motherboard / Chassis | 1x MBD-X9DRD-EF / CSE-216BE1C-R920LPB |
| Backplane | 1x BPN-SAS3-216EL1 |
| Heatsink / Retention | 2x SNK-P0048PS |
| Drive Trays | 24x MCP-220-00047-0B |
| Add-On Card | 1x AOC-S3008L-L8E |
| Add On Module | 1x AOM-SAS3-16I16E-LP |
| Parts List |
| I/O Cables | 4x CBL-SAST-0532 |
