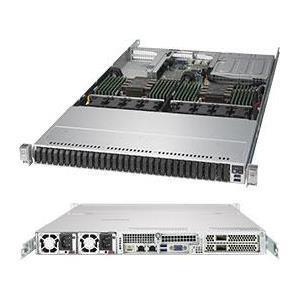

Supermicro SSG-1029P-NES32R All-flash Storage 1U Barebone Dual Intel Xeon Scalable Processors 2nd Generation
• IOPS Intensive Application
• Database Application
• Hyperconverged Infrastructure
Barebone 1U Rackmount SuperServer Dual Intel Xeon Scalable Processors 2nd Generation and Intel Xeon Scalable Processor, Intel C627 chipset, Up to 6TB in 24 DIMM slots, E1.S, M.2 32x PCI-E E1.S drive slots or M.2 drive bays, 2x 10GbE BaseT LAN Ports, 1600W Redundant Power Supply (CSE-121EF-R1K62P + X11DSF-E)
To maintain quality and integrity, this product is sold only as a completely-assembled system (including but not limited to 2 CPUs, 2 DIMMs, and 4 drives).
1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
2. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
3. 2 PCI-E 3.0 x16 (FHHL) slots, 1 PCI-E 3.0 x4 (LP) slot
4. 32 Hot-swap PCI-E E1.S or M.2 drive bays (M.2 is not hot-swappable). M.2 supports Form Factor 22x42/60/80/110 (MCP-220-12106-0N tray required)
5. 2x 10GBase-T LAN ports via Intel X550
6. 8x 40x56mm counter-rotation PWM fans
7. 1600W Redundant Power Supplies Titanium Level (96%)
Extra Specifications for Supermicro SSG-1029P-NES32R All-flash Storage 1U Barebone Dual Intel Xeon Scalable Processors 2nd Generation
| Motherboard | ||
| Motherboard | Super X11DSF-E | |
| System Memory | ||
| Memory Capacity | 24 DIMM slots | |
| Up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Supports Intel® Optane™ DCPMM †† | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C627 chipset | |
| Storage | PCI-E fan out switching supporting 32x E1.S | |
| Network Connectivity | Intel® X550 Dual Port 10GBase-T | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 BMC | |
| Input / Output | ||
| LAN | 2 RJ45 10GBase-T ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 2 USB 3.0 ports (rear) | |
| 2 USB 3.0 ports (front) | ||
| Video | 1 VGA D-Sub connector port | |
| Serial Header | 1 COM port (header) | |
| System BIOS | ||
| BIOS Type | AMI 32Mb SPI Flash ROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| Power Configurations | ACPI / APM Power Management | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-121EF-R1K62P | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 30" (762mm) | |
| Weight | Net Weight: 40 lbs (18.1kg) | |
| Gross Weight: 52 lbs (23.6kg) | ||
| Available Color | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Power LED | |
| Network activity LEDs | ||
| Hard drive activity LED | ||
| System Overheat LED / Fan fail LED / UID LED | ||
| Expansion Slots | ||
| PCI-Express | 2 PCI-E 3.0 x16 (FHHL) slots | |
| 1 PCI-E 3.0 x4 (LP) slot | ||
| Drive Bays / Storage | ||
| Hot-swap | 32 Hot-swap PCI-E E1.S drive slots | |
| System Cooling | ||
| Fans | 8x 40x56mm counter-rotation PWM fan | |
| Power Supply | ||
| Power Supply | 1600W Redundant Power Supplies with PMBus | |
| Total Output Power | 1600W/1000W | |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Input | 100-127Vac / 13 - 9A / 50-60Hz | |
| 200-240Vac / 10 - 8A / 50-60Hz | ||
| +12V | Max: 83.3A / Min: 0A (100-127Vac) | |
| Max: 133A / Min: 0A (200-240Vac) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Processor | ||
| CPU | Dual Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , 3 UPI up to 10.4GT/s | ||
| Support CPU TDP 70-205W | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| Product SKUs | ||
| Product SKUs | SuperStorage 1029P-NES32R (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DSF-E | 1 | Super X11DSF-E Motherboard | |
| Motherboard / Chassis | CSE-121EF-R1K62P | 1 | CSE-121EF-R1K62P Chassis | |
| Backplane | BPN-EDS3-121P1 | 1 | 1U EDSFF backplane for 32-slot EDSFF-Short Form NVMe dense storage system.,RoHS | |
| Cable 1 | CBL-PWEX-1026 | 1 | GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 35CM, 17AWG, 8A/pin, -25~85C, RoHS | |
| Cable 2 | CBL-PWEX-1027 | 1 | GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 14CM, 17AWG, 8A/pin, -25~85C, RoHS | |
| Cable 3 | CBL-SAST-1019 | 2 | SLIMLINE SAS, INT,34.7CM, 41.9CM, 31.5/42.2CM,RoHS | |
| Riser Card | RSC-R1UU-E8R+ | 1 | RSC-R1UU-E8R+ REV 1.00, PBF | |
| Riser Card | RSC-X-66 | 1 | 1U LHS Passive Storage Risercard w/ 2 PCI-E x16slots,HF,RoHS | |
| Heatsink / Retention | SNK-P0067PS | 2 | 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| * Power Supply | PWS-1K62A-1R | 2 | AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH | |
| * Cable 4 | CBL-0160L | 2 | NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) | |
| * FAN 1 | FAN-0163L4 | 8 | 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan | |
| * Front Panel | FPB-TMP-002 | 1 | Thermal Sensor board with 40cm I2C cable | |
| * Drive Tray(s) | MCP-220-12105-0N | 32 | SC121EF EDSFF cage | |
| * Rear Window | MCP-240-12103-0N | 1 | Rear window for SC121M3 | |
| * Front Panel | MCP-280-11605-0N | 1 | 116U FP kit,2* USB3.0,slim bracket, 50cm cable | |
| * Rail Set | MCP-290-11814-0N | 1 set | Short rail set, quick/quick, auto latch, for 1U 17.2W No CMA support | |
| * Air Shroud | MCP-310-12101-0N | 1 | SC121 PWS Air Shroud |
