| Motherboard (Two per system) |
| Motherboard (Two per system) | Super X11DSC |
| Processor/Cache (per node) |
| CPU | Dual Socket P (LGA 3647) |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , 3 UPI up to 10.4GT/s |
| Support CPU TDP 70-205W |
| Cores | Up to 28 Cores |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) |
| System Memory (per node) |
| Memory Capacity | Supports Intel® Optane™ DCPMM †† |
| 16 DIMM slots |
| Up to 4TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM |
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. |
| On-Board Devices (per node) |
| Chipset | Intel® C621 chipset |
| Storage | Dual Broadcom 3616 controllers (IT Mode) or Broadcom 3108 (H/W RAID) |
| Network Controllers | Dual 10GBase-T LAN ports via Intel X550 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | ASPEED AST2500 BMC |
| Input / Output (per node) |
| LAN | 2 RJ45 10GBase-T LAN ports |
| 1 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 ports (rear) |
| 1 Type A |
| VGA | 1 VGA D-Sub connector port |
| Serial Port / Header | 1 Fast UART 16550 port / 1 Header |
| System BIOS |
| BIOS Type | AMI UEFI |
| Management |
| Software | NMI |
| Watchdog |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SSM , SPM , SUM |
| PC Health Monitoring |
| CPU | 4+1 Phase-switching voltage regulator |
| Monitors for CPU Cores, Chipset Voltages, Memory. |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 4U Rackmount |
| Model | CSE-947STS-R2K63P |
| Dimensions |
| Width | 17.68" (449mm) |
| Height | 6.96" (177mm) |
| Depth | 34.1" (866mm) |
| Weight | Gross Weight: 170.5 lbs (77.3kg) |
| Net Weight: 118 lbs (53.5 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| System Reset button |
| LEDs | System Information LED |
| Network activity LEDs |
| Hard drive activity LED |
| Power status LED |
| Power fail LED |
| Expansion Slots (per node) |
| PCI-Express | 2 PCI-E 3.0 x16 (HHHL) slots |
| 1 PCI-E 3.0 x8 (HHHL) slot |
| Drive Bays |

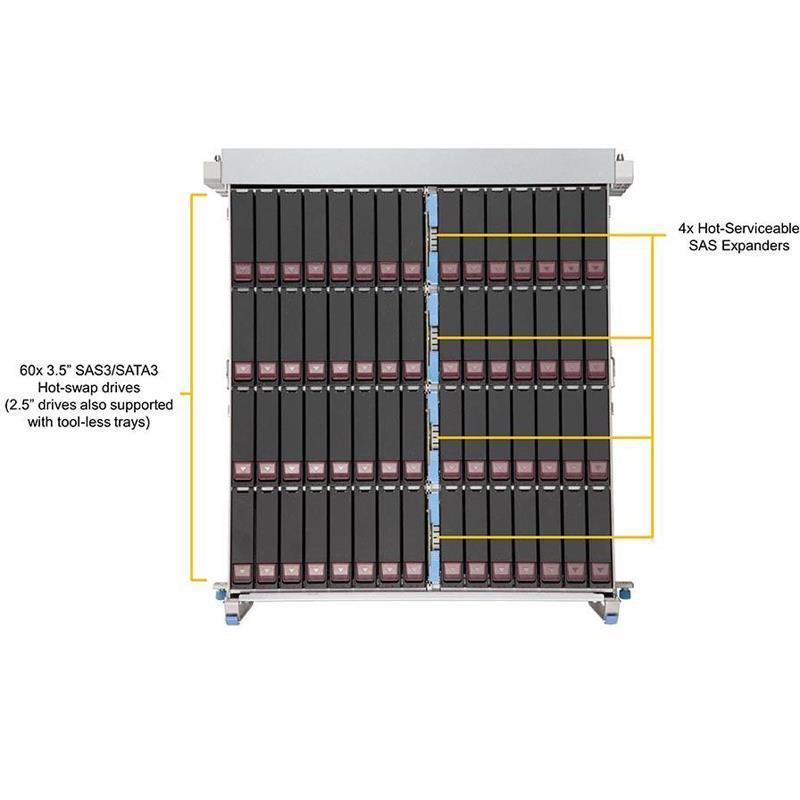

| Hot-swap | 60x 3.5"/2.5" Hot-swap SAS3/SATA3 |
| Fixed | 2x 2.5" internal fixed slim SATA SSD |
| M.2 | 2x NVMe M.2 (form factor: 2280 and 22110) |
| Backplane |
| Backplane | SAS3/SATA3 single expander per backplane |
| System Cooling |
| Fans | 6x 8cm hot-swap counter-rotate redundant PWM cooling fans |
| Power Supply |
| Power Supply | 2600W Redundant Power Supplies with PMBus |
| Total Output Power | 2600W: 200 – 240Vac |
| 2600W: 200 – 220Vdc (CQC only) |
| Dimension (W x H x L) | 73.5 x 40 x 265 mm |
| AC Input Frequency | 50-60Hz |
| +12V | Max: 216A / Min: 0A (200-240Vac) |
| 12Vsb | Max: 3.5A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Product SKUs |
| Product SKUs | SuperStorage 6049SP-DE1CR60 (Black) |
