- Supermicro SSG-6049SP-DE2CR90 Storage 4U Barebone Dual 2nd Gen Intel Xeon Scalable processors Up to 4TB RDIMM/LRDIMM SAS3, SSD, NVMe M.2 Dual 10GbE, IPMI LAN port
Supermicro SSG-6049SP-DE2CR90 Storage 4U Barebone Dual 2nd Gen Intel Xeon Scalable processors Up to 4TB RDIMM/LRDIMM SAS3, SSD, NVMe M.2 Dual 10GbE, IPMI LAN port
• Big Data & Analytics, Data Lake
• HPC and AI/ML Workloads
• Telco & Cloud Service Providers
• Financial Services & Healthcare Image Archives
• Content Repositories
• Government Data Protection
Barebone 4U Rackmount SuperServer Dual 2nd Gen Intel Xeon Scalable Processors, Intel C621 chipset, Up to 4TB in 16 DIMM slots, SAS3 via Broadcom 3616 IT Mode, 90x 3.5/2.5in SAS3 drive bays, 2x 2.5in internal fixed SATA SSD, 2x NVMe M.2, 2x 10GbE BaseT LAN Ports, IPMI LAN port, 2600W Redundant Power Supply (CSE-947HTS-R2K63P + X11DSC)
1. Dual Node (HA), Enterprise High Availability (SBB) Architecture (shared storage); Fully serviceable and redundant
Two hot-pluggable systems (nodes) in a 4U form factor. Each node supports the following:
2. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
3. 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
4. 2 PCI-E 3.0 x16 (HHHL), 1 PCI-E 3.0 x8 (HHHL)
5. 90x 3.5"/2.5" Hot-swap SAS3 drives, 2x Fixed slim SATA SSD, 2x NVMe M.2 (form factor: 2280 and 22110)
6. Dual Broadcom 3616 IT Mode
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN

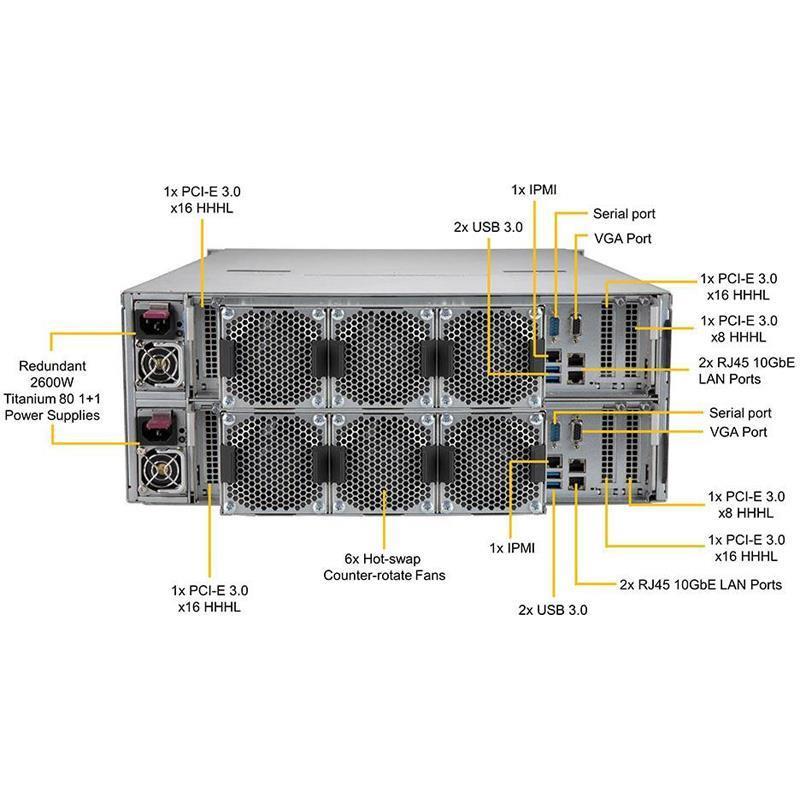

8. 6x 8cm hot-swap counter-rotate redundant PWM cooling fans
9. 2600W Redundant Power Supplies Titanium Level (96%)
10. Dedicated node to node connectivity featuring high performance NTB PCI-E 3.0 x16 , 1G private Ethernet, and IPMI for robust node fail-over support
Extra Specifications for Supermicro SSG-6049SP-DE2CR90 Storage 4U Barebone Dual 2nd Gen Intel Xeon Scalable processors Up to 4TB RDIMM/LRDIMM SAS3, SSD, NVMe M.2 Dual 10GbE, IPMI LAN port
| Motherboard (Two per System) | ||
| Motherboard (Two per System) | Super X11DSC | |
| Processor/Cache (per node) | ||
| CPU | Dual Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , 3 UPI up to 10.4GT/s | ||
| Support CPU TDP 70-205W | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| System Memory (per node) | ||
| Memory Capacity | Supports Intel® Optane™ DCPMM †† | |
| 16 DIMM slots | ||
| Up to 4TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices (per node) | ||
| Chipset | Intel® C621 chipset | |
| Storage | Dual Broadcom 3616 IT Mode | |
| Network Controllers | Dual 10GBase-T LAN ports via Intel X550 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 BMC | |
| Input / Output (per node) | ||
| LAN | 2 RJ45 10GBase-T LAN ports | |
| 1 Dedicated IPMI LAN port | ||
| USB | 2 USB 3.0 ports (rear) | |
| 1 Type A | ||
| VGA | 1 VGA D-Sub connector port | |
| Serial Port / Header | 1 Fast UART 16550 port / 1 Header | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Software | NMI | |
| Watchdog | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 4U Rackmount | |
| Model | CSE-947HTS-R2K63P | |
| Dimensions | ||
| Width | 17.68" (449mm) | |
| Height | 6.96" (177mm) | |
| Depth | 42.9" (1091mm) | |
| Weight | Net Weight: 150 lbs (68.04 kg) | |
| Gross Weight: 240 lbs (108.86 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | System Information LED | |
| Network activity LEDs | ||
| Hard drive activity LED | ||
| Power status LED | ||
| Power fail LED | ||
| Expansion Slots (per node) | ||
| PCI-Express | 2 PCI-E 3.0 x16 (HHHL) slots | |
| 1 PCI-E 3.0 x8 (HHHL) slot | ||
| Drive Bays | ||
| Hot-swap | 90x 3.5"/2.5" Hot-swap SAS3 | |
| Fixed | 2x 2.5" internal fixed slim SATA SSD | |
| M.2 | 2x NVMe M.2 (form factor: 2280 and 22110) | |
| Backplane | ||
| Backplane | SAS3 dual expander per backplane | |
| System Cooling | ||
| Fans | 6x 8cm hot-swap counter-rotate redundant PWM cooling fans | |
| Power Supply | ||
| Power Supply | 2600W Redundant Power Supplies with PMBus | |
| Total Output Power | 2600W: 200 – 240Vac | |
| 2600W: 200 – 220Vdc (CQC only) | ||
| Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
| AC Input Frequency | 50-60Hz | |
| +12V | Max: 216A / Min: 0A (200-240Vac) | |
| 12Vsb | Max: 3.5A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SuperStorage 6049SP-DE2CR90 (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DSC | 2 | Super X11DSC Motherboard | |
| Motherboard / Chassis | CSE-947HTS-R2K63P | 1 | SC947H 90-Bay top load chassis w/o MB Tray, PWS, BPN | |
| Add-on Card / Module | AOM-S3616-S-P | 2 | Storage 3616 controller for serviceable 60/90 bay systems. This has two 3616 controllers, PCI switch, two M.2 connectors.,RoHS | |
| Backplane | BPN-ADP-30SAS3-1 | 3 | Adapter board between Expander and HDD BPN for CSE-947H,RoHS | |
| Backplane | BPN-SAS3-947EB | 6 | HDD Backplane (15-slot) for CSE-947H 60/90-bay top load chassis/server.,RoHS | |
| Backplane | BPN-SAS3-947EL | 6 | SAS3 expander module for top-load 60/90-bay single/twin/SBB CSE-947 project,RoHS | |
| Backplane | BPN-SAS3-947SB | 1 | Midplane for topload CSE-947 60/90-bay SBB/Twin/single-node system,RoHS | |
| Drive Tray(s) | MCP-220-94601-0N | 90 | SC946ED 3.5" / 2.5" tool-less HDD tray | |
| Cable 1 | CBL-0066 | 2 | 39" 9 PIN COM PORT EXTENSION CABLE | |
| Cable 2 | CBL-0082L | 2 | Y SPLIT SATA POWER ADAPTER, PB FREE | |
| Cable 3 | CBL-0473L | 4 | 21CM 30AWG SATA CBL, S-S | |
| Cable 4 | CBL-OTHR-1062-25 | 2 | [NR] CBL,VGA,DP15/F, to 2X7F/P2.0,25CM,RoHS | |
| Cable 5 | CBL-OTHR-1104 | 1 | [NR] 90 SBB,SlimlineULP x12 to SlimlineLP x8,FFC,100 OHM to 2x8,PH3.0,M, to 2x8,PH3.0,F,6A/pin,18AWG | |
| Cable 6 | CBL-PWEX-1100-25 | 2 | [NR] MicroFit 2x2F/PH3.0 to 1x4F/PH5.08,25cm,16AWG | |
| Power Supply | PWS-2K63A-1R | 2 | 2600W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH | |
| Heatsink / Retention | SNK-P0068PS | 4 | 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism |
