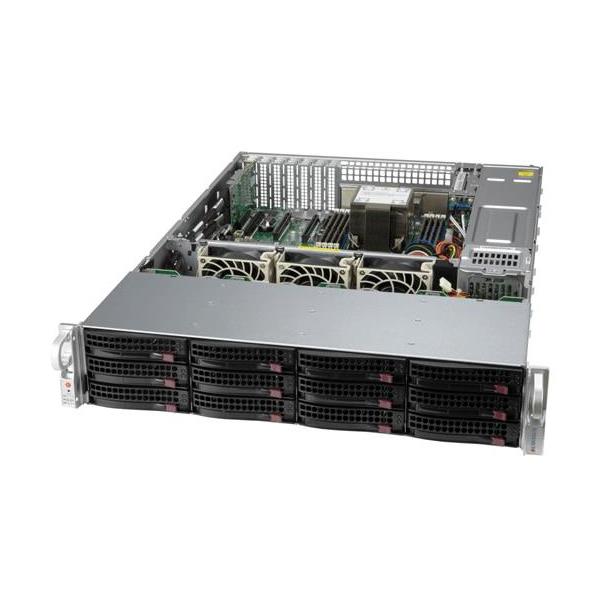

Supermicro SSG-520P-ACTR12H Storage UP 2U Barebone Single 3rd Gen Intel Xeon Scalable processors
• Enterprise Server
• Database Processing & Storage
• Appliance Optimized Storage
Barebone 2U Rackmount SuperServer 3rd Gen Intel Xeon Scalable processors, Intel C621 chipset, Up to 3TB in 8 DIMM slots, Support Intel Optane persistent memory 200 series, SATA3 RAID, SAS3 via Broadcom 3916 12x 3.5in SATA3/SAS3 drive bays, M.2, Optional 2x 2.5in SATA or NVMe drive bays, 2x 10GbE BaseT LAN Ports, IPMI LAN port, 800W Redundant Power Supply (CSE-826BTS-R802LPB + X12SPI-TF)
This product is no longer available.
1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
3. 2 PCIe 4.0 x16 (LP) slots, 2 PCIe 4.0 x8 (LP) slots
4. Intel® Ethernet Controller X550 2x 10GbE RJ45
5. 12x Direct-attached hot-swap 3.5" SAS3/SATA3 drive bays, Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5" NVMe/SATA (rear, optional)
6. Redundant Titanium 800W Power Supply
Extra Specifications for Supermicro SSG-520P-ACTR12H Storage UP 2U Barebone Single 3rd Gen Intel Xeon Scalable processors
| Motherboard | ||
| Motherboard | Super X12SPI-TF | |
| Processor | ||
| CPU | Support CPU TDP 270W | |
| Single Socket P+ (LGA 4189) | ||
| Support Intel® 3rd Gen Xeon® Scalable Processors | ||
| Cores | Up to 40C/80T; Up to 60MB Cache | |
| System Memory | ||
| Memory | Intel® Optane™ persistent memory 200 series | |
| Memory Capacity: 8 DIMM slots | ||
| Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM | ||
| Up to 2TB: 8x 256 GB DRAM | ||
| Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Yes | |
| On-Board Devices | ||
| SATA | SATA3 (6Gbps) via C621A Chipset; RAID 0, 1, 5, 10 support | |
| SAS | SAS3 (12Gbps) via Broadcom 3916; RAID 0, 1, 5, 6, 10, 50, 60 support | |
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 10GbE BaseT with Intel® X550 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 10GBase-T LAN ports | ||
| USB | 4 USB 2.0 port(s) (2 headers; 2 rear) | |
| 5 USB 3.2 Gen 1 port(s) (2 headers; 2 rear; 1 Type A) | ||
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 header) | |
| DOM | 2 Super DOM (Disk on Module) port with built-in power | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | NMI | |
| KVM with dedicated LAN | ||
| Redfish API | ||
| Intel® Node Manager | ||
| SUM | ||
| SSM | ||
| SPM | ||
| IPMI2.0 | ||
| Power Configurations | ACPI/APM Power Management | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 7+1 Phase-switching voltage regulator module (VRM) | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-826BTS-R802LPB | |
| Dimensions and Weight | ||
| Height | 3.5" (89mm) | |
| Width | 17.2" (437mm) | |
| Depth | 25.6" (650mm) | |
| Package | 11.5" (H) x 26.5" (W) x 34" (D) | |
| Weight | Net Weight: 34 lbs (15.4 kg) | |
| Gross Weight: 58 lbs (26.3 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| Buttons | System Reset | |
| Power On/Off | ||
| LEDs | Power status | |
| System information | ||
| Device Activity | ||
| LAN 1 Activity | ||
| LAN 2 Activity | ||
| Power Failure LED | ||
| Drive Bays / Storage | ||
| Hot-swap | 12x 3.5" hot-swap SATA/SAS drive bays | |
| M.2 | Form Factor: 2280, 22110 | |
| Key: M-key | ||
| 1x PCIe 3.0 x4 and SATA | ||
| Peripheral Bays | 2x 2.5" SATA or NVMe drive bays (optional) | |
| System Cooling | ||
| Fans | 3x (8cm x8cm x3.8cm) heavy duty fans with optimal fan speed control | |
| Air Shroud | 1 Air Shroud(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| Output Type | Gold Finger | |
| Certification | Titanium Level | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SSG-520P-ACTR12H | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 2 PCIe 4.0 x16 LP slot(s) | |
| 2 PCIe 4.0 x8 LP slot(s) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12SPI-TF | 1 | Super X12SPI-TF Motherboard | |
| Motherboard / Chassis | CSE-826BTS-R802LPB | 1 | 2U Chassis | |
| Add-on Card / Module | AOC-S3916L-H16IR-32DD-P | 1 | 16 int 12Gb/s ports, x8 Gen4, ROC - LP, 32HDDw/exp,RoHS | |
| Backplane | BPN-SAS3-LA26A-N12 | 1 | 2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Stor | |
| Cable | CBL-CDAT-0728 | 1 | 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1 | |
| Cable | CBL-SAST-1249-100 | 1 | Slimline x8 (STR) to 2x Slimline x4 (STR),50CM,100 OHM, | |
| Cable | CBL-SAST-1281-100 | 1 | Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM, | |
| Cable | CBL-CDAT-0921-85 | 1 | I2C,(1x4F to 1x4F)/P2.5,85CM,26AWG,RoHS | |
| Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Cable | CBL-PWEX-1069 | 3 | PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS | |
| Parts | MCP-260-00042-1N | 1 | Standard I/O Shield for X12SPi with EMI Gasket | |
| Manual | MNL-2361-QRG | 1 | 520P-ACTR12L/H Quick Reference Guide | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0078P | 1 | 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms | |
| *Power Supply | PWS-802A-1R | 2 | 1U 800W 100-240Vac/47-63Hz, and DC240 input | |
| *Power Distributor | PDB-PT826-8824 | 1 | PDB with longer 24pin for SC826B | |
| *Front Panel | FPB-TB826-T | 1 | Chassis transfer board for SC826 | |
| *Drive Tray(s) | MCP-220-00075-0B | 12 | Black gen 5.5 hot-swap 3.5" HDD tray | |
| *Rear Window | MCP-240-82608-0N | 1 | 216B/826B LP rear window,RoHS/REACH,PBF | |
| *Rail Set | MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W | |
| *Rail Set | MCP-290-00060-0N | 1 | Threaded rail adapter default for round hole rack | |
| *Air Shroud | MCP-310-29001-0N | 1 | SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13 | |
| *Fan | FAN-0166L4 OR | 3 | 80x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4) | |
| *Fan | FAN-0206L4 | 0 | 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 2x 2.5" NVMe Cage (Rear) | MCP-220-82619-0N + 1x CBL-SAST-1264-85 | 1 | Rear hot-swap 2x 2.5" NVMe drive kit | |||
| 2x 2.5" SATA/SAS Cage (Rear) | MCP-220-82616-0N | $ 112.00 | 1 | Rear hot-swap 2x 2.5" SATA/SAS drive kit | ||
| 3.5" to 2.5" Converter Tray(s) | MCP-220-00043-0N | $ 26.00 | 0 | Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black | ||
| CacheVault | BTR-CVPM05 & MCP-240-00203-0N (For S3916) | 1 | CacheVault for Broadcom 3916 with SuperCap mounting bracket for PCIe location | |||
| Intel VROC RAID Key for NVMe | AOC-VROCINTMOD | 1 | Intel SSD Only Upgrade module; RAID 0/1/10/5 | |||
| Intel VROC RAID Key for NVMe | AOC-VROCSTNMOD | $ 176.00 | 1 | Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10 | ||
| Intel VROC RAID Key for NVMe | AOC-VROCPREMOD | $ 344.50 | 1 | Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5 | ||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| TPM | AOM-TPM-9670V-S-O | 1 | TPM 2.0, vertical form factor, provisioned for server | |||
| TPM | AOM-TPM-9671V-S-O | 1 | TPM 1.2, vertical form factor, provisioned for server |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
