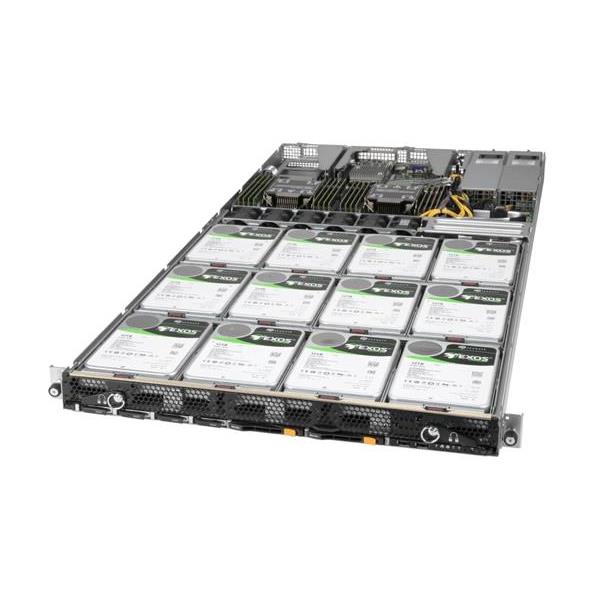

Supermicro SSG-610P-ACR12N4H MegaDC 1U Barebone Dual 3rd Gen Intel Xeon Scalable processors Up to 4TB LRDIMM/RDIMM SATA3, SAS3, M.2 NVMe OR 2x M.2 SATA3 Dual 25G SFP+, IPMI LAN port

Supermicro SSG-610P-ACR12N4H MegaDC 1U Barebone Dual 3rd Gen Intel Xeon Scalable processors Up to 4TB LRDIMM/RDIMM SATA3, SAS3, M.2 NVMe OR 2x M.2 SATA3 Dual 25G SFP+, IPMI LAN port

• Database Applications
• Hyperscale Data Center
• Object Storage
• Big Data Analytics
• Scale-Out Density
• Hadoop & Ceph storage solutions
• Scale-out NAS

Barebone 1U Rackmount SuperServer 3rd Gen Intel Xeon Scalable processors, Intel C621A chipset, Up to 4TB in 16 DIMM slots, SAS3 RAID via Broadcom 3916, 12x 3.5in SATA3/SAS3 drive bays, 4x E1.S and 2x 2.5in 7mm, 2x M.2 NVMe OR 2x M.2 SATA3, 2x 25G SFP+ Ports Onboard, 800W Redundant Power Supply (CSV-802ETS-R804AMP + X12DPD-A6M25)

This product is no longer available.

1. Up to 4TB ECC DDR4-3200: LRDIMM/RDIMM
2. 2x 25G SFP28 Ports Onboard

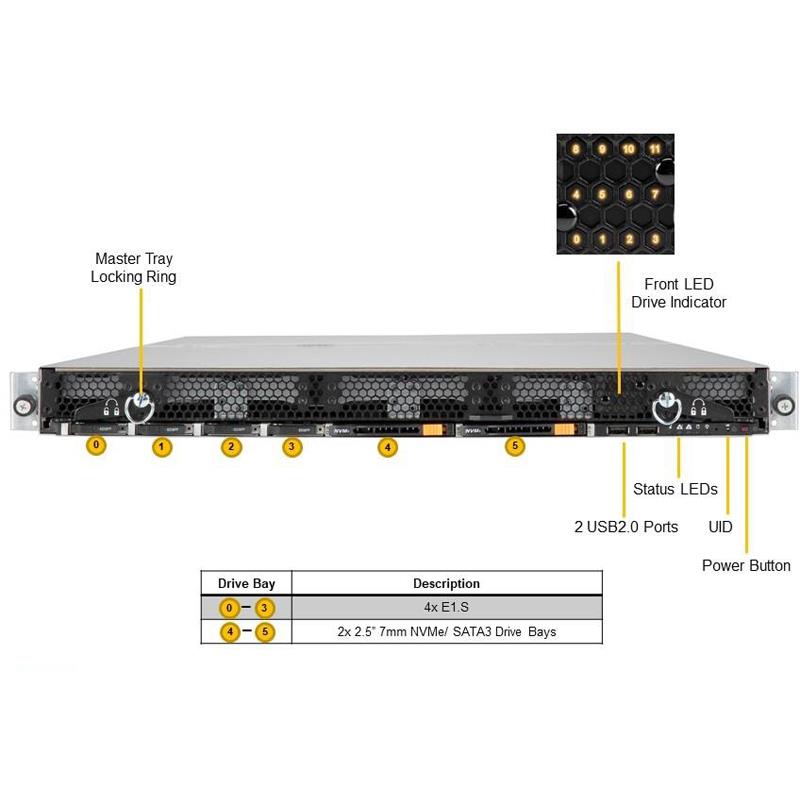

3. 12x 3.5" hot-swap SAS/SATA, 4x hot-swap E1.S (EDSFF Short) drive bays, 2x 2.5" 7mm NVMe/SATA drive bays
4. RAID support via Broadcom® 3916
5. Front LED Indicator for each drive PCIe 4.0 x16 AIOM Support + 3 PCIe 4.0 LP Slots

Extra Specifications for Supermicro SSG-610P-ACR12N4H MegaDC 1U Barebone Dual 3rd Gen Intel Xeon Scalable processors Up to 4TB LRDIMM/RDIMM SATA3, SAS3, M.2 NVMe OR 2x M.2 SATA3 Dual 25G SFP+, IPMI LAN port

Motherboard
Motherboard	Super X12DPD-A6M25
Processor
CPU	3rd Gen Intel® Xeon® Scalable processors
	Dual Socket P+ (LGA-4189)
	Support CPU TDP 120-205W
Cores	Up to 38C/96T; Up to 57MB Cache
System Memory
Memory	Memory Capacity: 16 DIMM slots
	Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM
	Up to 4TB: 16x 256 GB DRAM
Memory Voltage	1.2 V
Error Detection	ECC
On-Board Devices
Chipset	Intel® C621A
Network Connectivity	2x 25GbE SFP28 with Mellanox
IPMI	Support for Intelligent Platform Management Interface v.2.0
	IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

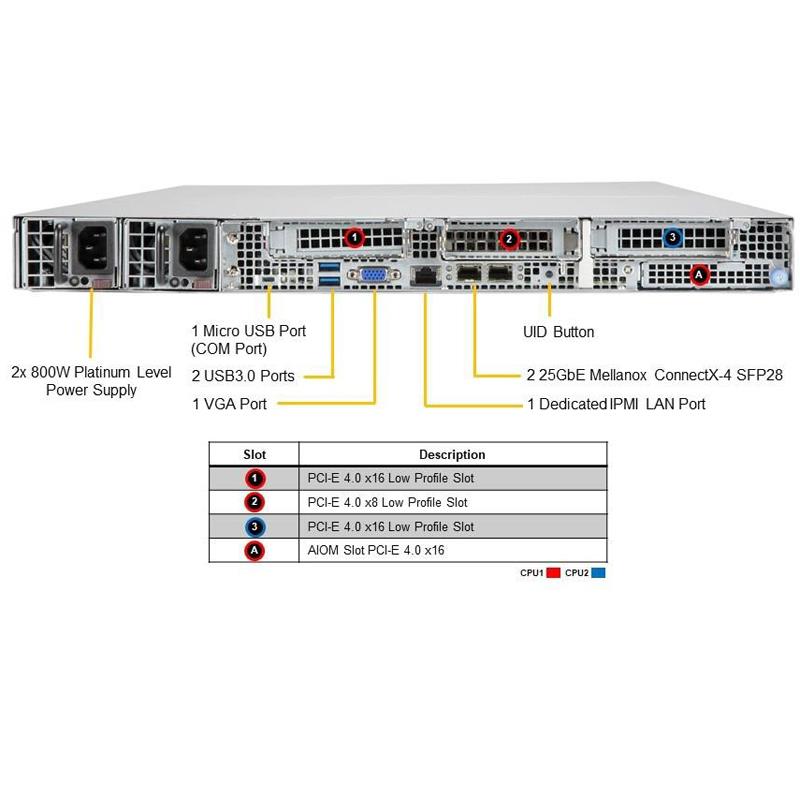

Input / Output
LAN	1 RJ45 Dedicated IPMI LAN port
	1x 25G SFP+ LAN ports
USB	2 USB 2.0 port(s) (2 Front_USB)
	2 USB 3.0 port(s) (2 Rear_USB)
Video	1 VGA port(s)
Serial Port	1 Serial
System BIOS
BIOS Type	AMI 128MB SPI Flash EEPROM
Management
Software	Watch Dog
	NMI
	SuperDoctor® 5
	IPMI 2.0
	SUM
Power Configurations	Power-on mode for AC power recovery
	ACPI Power Management
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
	4+1 Phase-switching voltage regulator
FAN	Status monitor for speed control
	Pulse Width Modulated (PWM) fan connectors
	Fans with tachometer monitoring
Temperature	Monitoring for CPU and chassis environment
	Thermal Control for fan connectors
Chassis
Form Factor	1U Rackmount
Model	CSV-802ETS-R804AMP
Dimensions and Weight
Height	1.7"
Width	17.6"
Depth	37"
Package	12" (H) x 27" (W) x 53.15" (D)
Weight	Net Weight: 34 lbs (15.4 kg)
	Gross Weight: 61 lbs (27.7 kg)
Available Color	Silver
Front Panel
Buttons	Power On/Off
LEDs	HDD activity
	Power status
	Network activity
	System information (overheat/UID)
Drive Bays / Storage

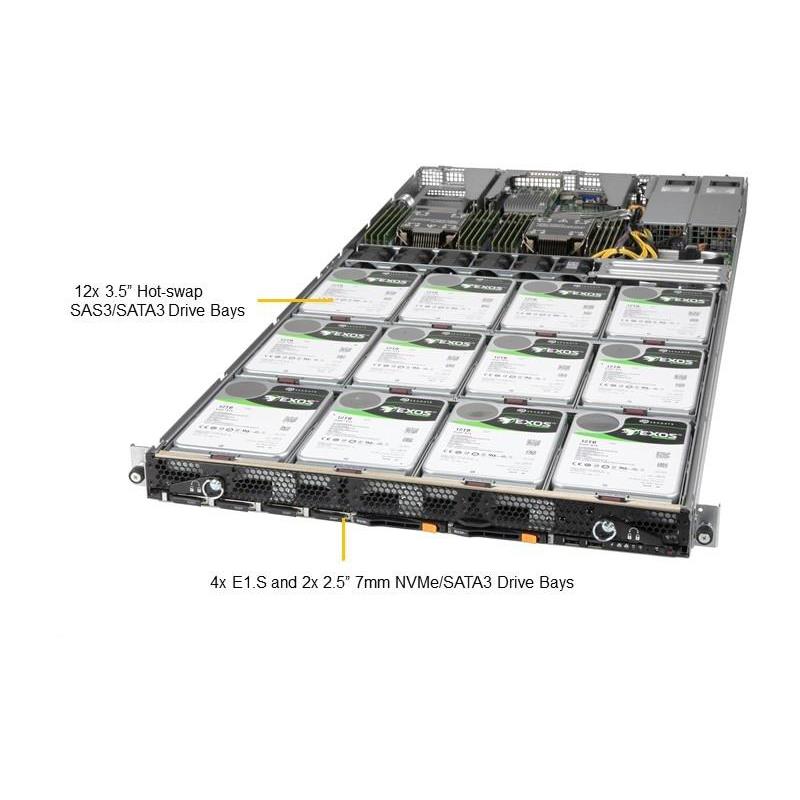

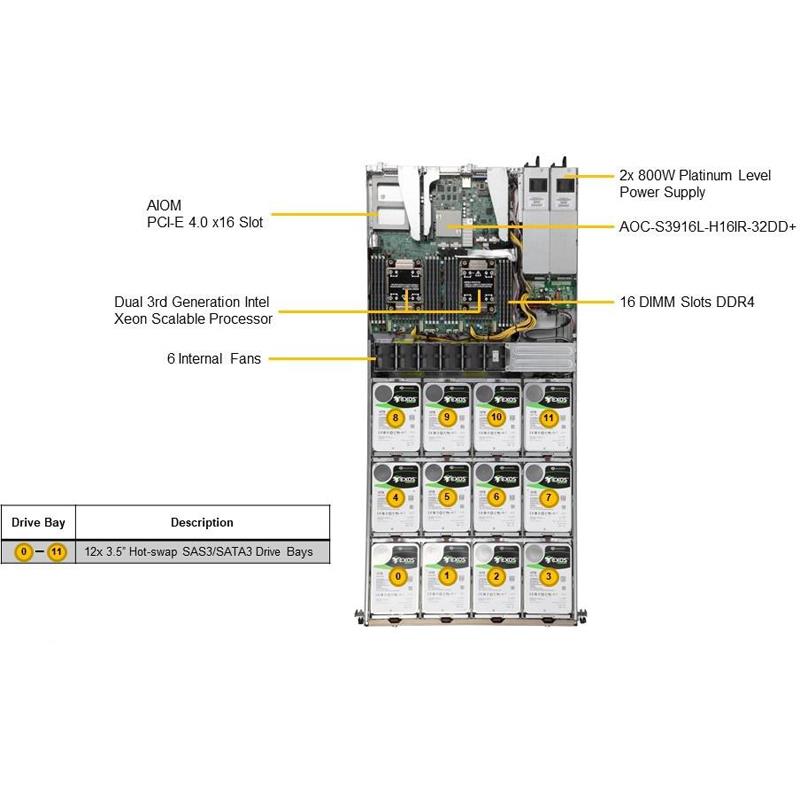

Hot-swap	12x 3.5" hot-swap SATA3/SAS3 drive bays
	4x E1.S and 2x 2.5" 7mm
M.2	2 M.2 NVMe OR 2 M.2 SATA3
	M-Key, 2280
System Cooling
Fans	6 Heavy Duty 4cm Fan(s)
Power Supply
Dimension (W x H x L)	54.5 x 40 x 220 mm
AC Input	800W: 100-240Vac / 70.6A Max / 50-60Hz
	800W: 100-240Vac / 5.5A-10A / 50-60Hz
Certification	Platinum Level
+12V	Max: 66A
5V SB	Max: 4A
Output Type	Gold Finger Connector
Operating Environment
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
	Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
	Operating Relative Humidity: 8% to 90% (Non-Condensing)
	Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Expansion Slots
Note	PCIe slot 2 is occupied by the Storage Controller
PCI-Express (PCIe)	1 PCIe 4.0 x16 AIOM slot(s)
	1 PCIe 4.0 x8 LP slot(s)
	2 PCIe 4.0 x16 LP slot(s)
Product SKUs
Product SKUs	SSG-610P-ACR12N4H

Name	Part Number	Price	Add to Cart	Qty.	Description
	Network Cards	AOC-S25G-B2S	$ 230.00		1	Std LP 2-port 25G SFP28, Broadcom BCM57414
	Network Cards	AOC-AG-I2M	$ 112.50		1	AIOM Dual-Port 1GbE RJ45,based on i350-AM2
	Network Cards	AOC-ATG-I4SM	$ 332.50		1	AIOM Quad-Port 10GbE SFP+, based on Intel XL710-BM1
	Network Cards	AOC-ATG-I2SM	$ 215.00		1	AIOM Dual-Port 10GbE SFP+,b/ on X710-BM2
	Network Cards	AOC-AH25G-M2S2TM	$ 373.00		1	AIOM Dual-Port 25GbE SFP28 based on Mellanox CX-4 Lx EN
	Network Cards	AOC-A100G-B2CM	$ 603.50		1	AIOM Dual Port 100GbE QSFP28, based on Broadcom BCM57508
	Network Cards	AOC-631102AC-ADAT	$ 118.50		1	Mellanox PCIe 2-port 25GbE SFP28 Gen 3.0/4.0 x 8 RoHS
	Network Cards	AOC-653105A-HDAT	$ 1,174.00		1	MCX653105A-HDAT, CX-6 VPI,HDR,200GbE,1xQSFP56,PCIe4x16
	Network Cards	AOC-STGS-I2T	$ 337.50		1	Std LP 2-port 10G RJ45, Intel X550
	Network Cards	AOC-S25G-I2S	$ 253.50		1	Std. Low Profile 25G dual port SFP28, based on Intel XXV710
	Network Cards	AOC-S100G-M2C	$ 582.50		1	Std LP 2-port 100G QSFP28, Mellanox ConnectX-4 EN
Network Cards	AOC-SGP-I2 •			1	Standard LP 2-port GbE, Intel 82575
	Network Cards	AOC-S40G-I2Q	$ 377.00		1	Standard LP 2-port 40GbE controller, Intel Fortville XL710
	Network Cards	AOC-S25G-M2S	$ 204.00		1	Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
	Power Cord	CBL-PWCD-0579	$ 23.00		0	Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
	Power Cord	CBL-PWCD-0579-1	$ 23.00		0	Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
	Power Cord	CBL-PWCD-0300-IS	$ 20.00		0	PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
TPM	AOM-TPM-9671V-O			1	TPM 1.2, vertical form factor, provisioned for server
TPM	AOM-TPM-9670V-O •			1	TPM 2.0, vertical form factor, provisioned for server

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
