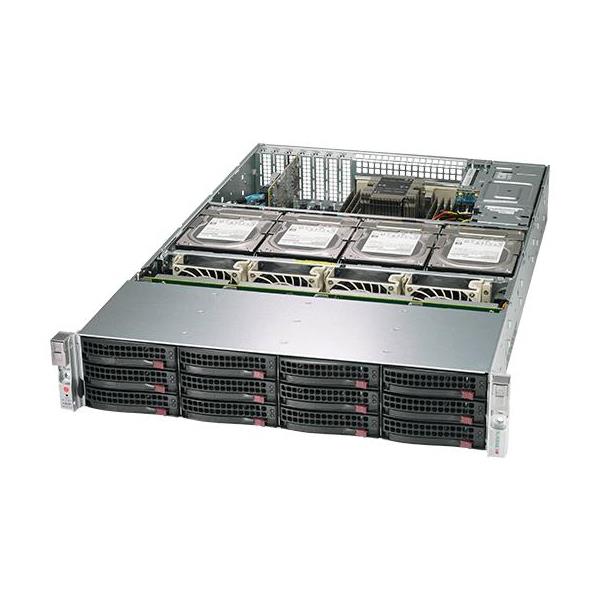

- Supermicro SSG-620P-ACR16L Storage DP 2U Barebone Dual 3rd Gen Intel Xeon Scalable processors Up to 4TB RDIMM/LRDIMM/Intel DCPMM SATA3, SAS3, NVMe hybrid, M.2 Dual 10GbE, IPMI LAN port
Supermicro SSG-620P-ACR16L Storage DP 2U Barebone Dual 3rd Gen Intel Xeon Scalable processors Up to 4TB RDIMM/LRDIMM/Intel DCPMM SATA3, SAS3, NVMe hybrid, M.2 Dual 10GbE, IPMI LAN port
• Enterprise Server
• iSCSI SAN
• HPC, Data Center
• Database Processing & Storage
• Corporate Database

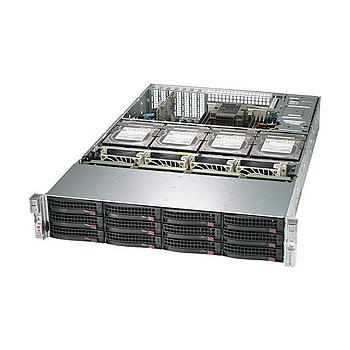

Barebone 2U Rackmount SuperServer 3rd Gen Intel Xeon Scalable processors, Intel C621A chipset, Up to 4TB in 16 DIMM slots, LRDIMM/RDIMM + 2 Intel Optane Persistent Memory Dedicated Slots, SAS3 via Broadcom 3816 Controller, 16x 3.5in SATA3/SAS3 drive bays (4x 3.5in NVMe hybrid), 1x M.2 NVMe, 2x 10GbE BaseT LAN Ports, IPMI LAN port, 2 SuperDOM (Disk on Module) port, 1600W Redundant Power Supply (CSE-829HE1C4-R1K62LPB + X12DPi-NT6)
1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors

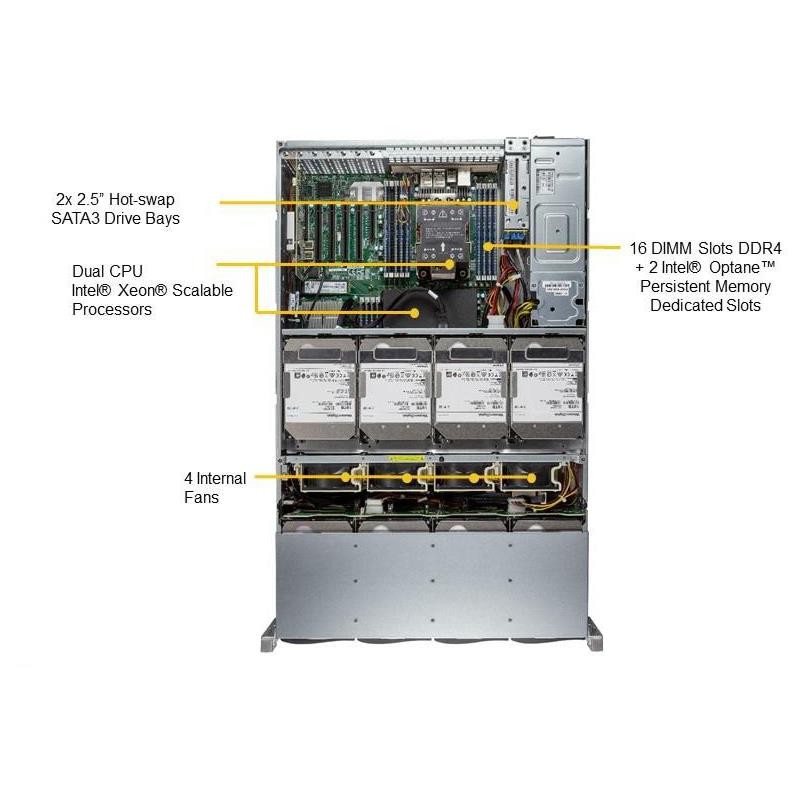

2. 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots
3. 2x 10Gbe

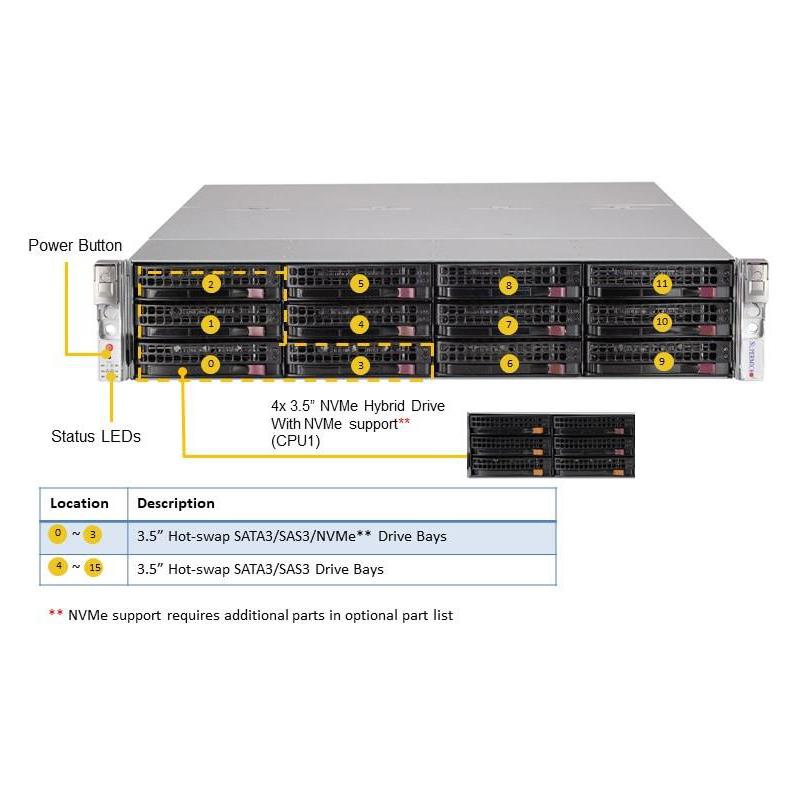

4. 16x 3.5" hot-swap hybrid SATA/SAS drive bays (4 NVMe Hybrid Ports); 2 Rear SATA Slots; onboard 1 M.2 NVMe
5. 3 heavy duty fans with optimal fan speed control; 1 Air Shroud
6. 1600W Redundant Power Supplies Titanium Level (96%)
7. Broadcom® 3816 Controller
Extra Specifications for Supermicro SSG-620P-ACR16L Storage DP 2U Barebone Dual 3rd Gen Intel Xeon Scalable processors Up to 4TB RDIMM/LRDIMM/Intel DCPMM SATA3, SAS3, NVMe hybrid, M.2 Dual 10GbE, IPMI LAN port
| Motherboard | ||
| Motherboard | Super X12DPi-NT6 | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Dual Socket P+ (LGA-4189) | ||
| Support CPU TDP 120-270W | ||
| Cores | Up to 38C/76T; Up to 57MB Cache | |
| System Memory | ||
| Memory | Memory Capacity: 16 DIMM slots | |
| Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM;DCPMM | ||
| Up to 4TB: 16x 256 GB DRAM | ||
| Note | 2 extra DIMM slots available for Intel® Optane™ DCPMM @ 2666MHz | |
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 10GbE BaseT with Intel® X550 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ-45 10Gbase-T ports | ||
| USB | 4 USB 3.0 port(s) (4 Rear_USB) | |
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 rear) | |
| DOM | 2 Super DOM (Disk on Module) port | |
| System BIOS | ||
| BIOS Type | AMI 128MB SPI Flash EEPROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| SUM | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 4+1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U | |
| Model | CSE-829HE1C4-R1K62LPB | |
| Dimensions and Weight | ||
| Height | 3.5" (89mm) | |
| Width | 17.2" (437mm) | |
| Depth | 27.75" (705mm) | |
| Package | 10.8" (H) x 25.9" (W) x 39.3" (D) | |
| Weight | Gross Weight: 62 lbs (28.12 kg) | |
| Net Weight: 41.5 lbs (18.82 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| Buttons | Power On/Off | |
| LEDs | HDD activity | |
| Power status | ||
| Network activity | ||
| System information (overheat/UID) | ||
| Expansion Slots | ||

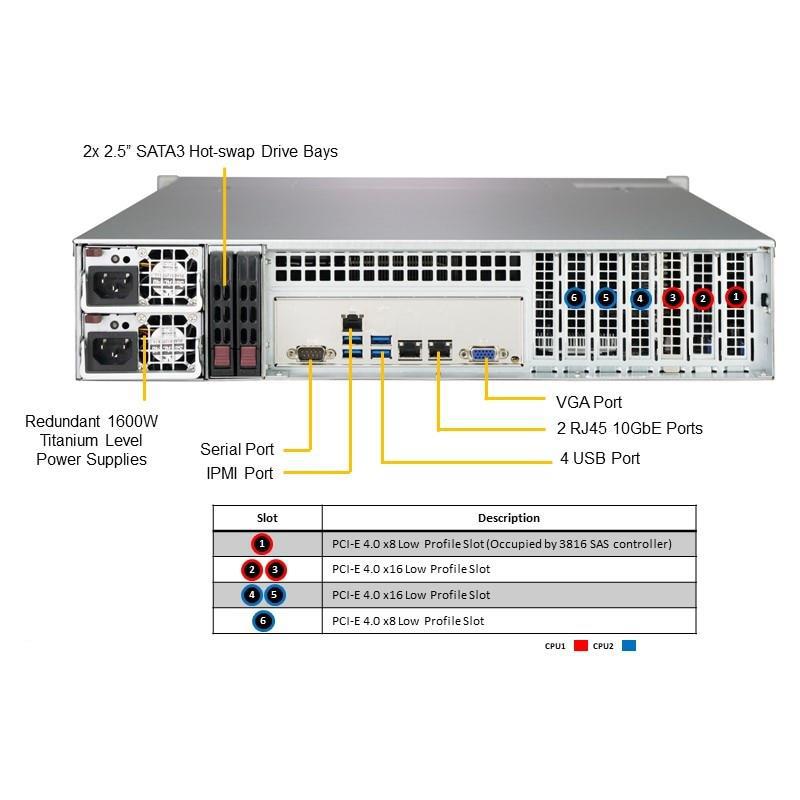

| Note | PCIe slot 1 is occupied by the Storage Controller | |
| PCI-Express (PCIe) | 4 PCIe 4.0 x16 LP slot(s) | |
| 1 PCIe 4.0 x8 LP slot(s) | ||
| Drive Bays / Storage | ||

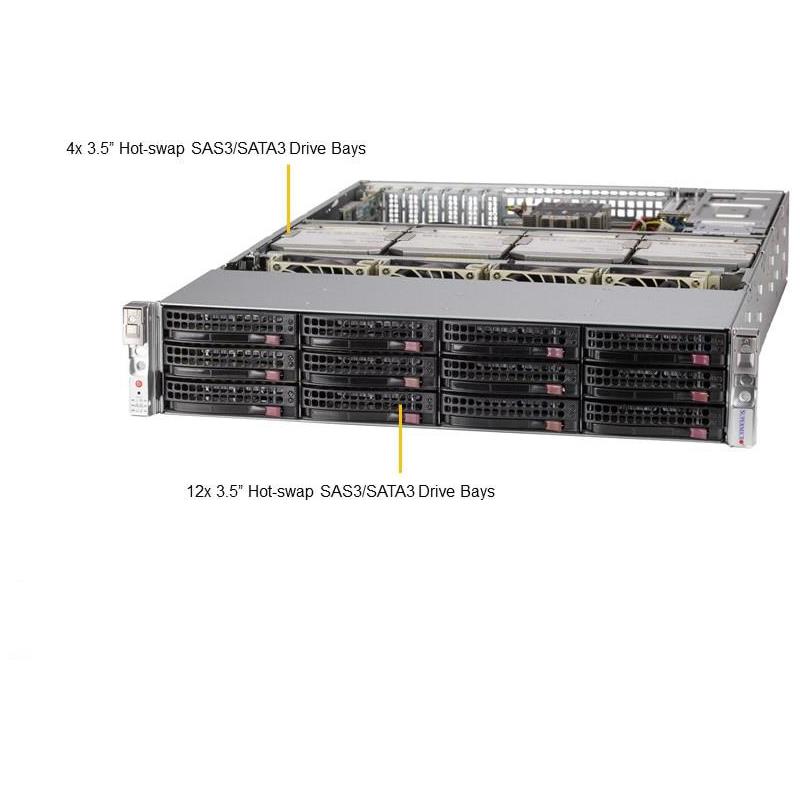

| Hot-swap | 16x 3.5" hot-swap SATA3/SAS3 drive bays (4x 3.5" NVMe hybrid) | |
| M.2 | 1 M.2 NVMe | |
| System Cooling | ||
| Fans | 4 Heavy Duty 8cm Fan(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| AC Input | 1000W: 100-127Vac / 50-60Hz | |
| 1600W: 200-240Vac / 50-60Hz | ||
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) | |
| Max: 133A / Min: 0A (200Vac-240Vac) | ||
| 12V SB | Max: 2.1A / Min: 0A | |
| Output Type | Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 8% to 90% (Non-Condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | ||
| Product SKUs | ||
| Product SKUs | SSG-620P-ACR16L | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12DPi-NT6 | 1 | Super X12DPi-NT6 Motherboard | |
| Motherboard / Chassis | CSE-829HE1C4-R1K62LPB | 1 | 2U Chassis | |
| Add-on Card / Module | AOC-S3816L-L16IT-O | 1 | 16 int 12Gb/s SAS3 ports,x8 Gen4, HBA - LP,122 HDD w/exp | |
| Backplane | BPN-SAS3-829HA-A4 | 1 | 4-port internal SAS3 12Gbps backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD | |
| Backplane | BPN-SAS3-LA26A-N12 | 1 | 2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS | |
| Cable | CBL-0277L | 2 | HDD POWER CABLE (BIG 4 PIN; 32CM), PBF | |
| Cable | CBL-CDAT-0728 | 1 | 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1 | |
| Cable | CBL-PWEX-0645 | 2 | Big 4 Pin Male to Big 4 Pin Female, Power Extension 15cm | |
| Cable | CBL-SAST-1250A-100 | 1 | SlimSAS (x8 ST to x4 STR and miniS)80/50CM,100OHM,RoHS | |
| Cable | CBL-SAST-1281-100 | 1 | Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM, | |
| Cable | CBL-CDAT-0607 | 1 | [NR] FRONT CNTL,20 TO 20 PIN, P0.5, FFC,FLAT, 23.5CM, STD,Ro | |
| Cable | CBL-CDAT-0921-85 | 1 | [NR] I2C,(1x4F to 1x4F)/P2.5,85CM,26AWG,RoHS | |
| Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Cable | CBL-PWEX-1078 | 4 | PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS | |
| Parts | MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. | |
| Air Shroud | MCP-310-82935-0B | 1 | Mylar 1U air shroud for SC829H X12 | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0077PW | 1 | 1U Passive CPU HS 92mm Width for X12 Whitley Platform | |
| Heatsink / Retention | SNK-P0078AP4 | 1 | 2U Active CPU Heat Sink for X12 Generation Building Block Solutions | |
| *Power Supply | PWS-1K62A-1R | 2 | AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH | |
| *Power Distributor | PDB-PT829H-2824 | 1 | 2U standard output with 24Pin PDB support up to | |
| *Fan | FAN-0209L4 | 4 | 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above | |
| *Fan | FAN-0166L4 OR | 4 | 80x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4) | |
| *Fan | FAN-0206L4 | 0 | 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers | |
| *Front Panel | FPB-TB826-T | 1 | Chassis transfer board for SC826 | |
| *Drive Tray(s) | MCP-220-00075-0B | 12 | Black gen 5.5 hot-swap 3.5" HDD tray | |
| *Drive Tray(s) | MCP-220-82902-0N | 1 | Middle tray plate for SC829H | |
| *Drive Tray(s) | MCP-220-82903-0N | 4 | Internal mid tray with handle for SC829H | |
| *Drive Tray(s) | MCP-290-82607-0N | 1 | 826B/216B rear dummy cover for 2 X 2.5" HDD cage,RoHS | |
| *Rail Set | MCP-290-00053-0N-01 | 1 | 36"; Rail set for Auto-latch, quick/quick, 2, 3U 17.2";W |
