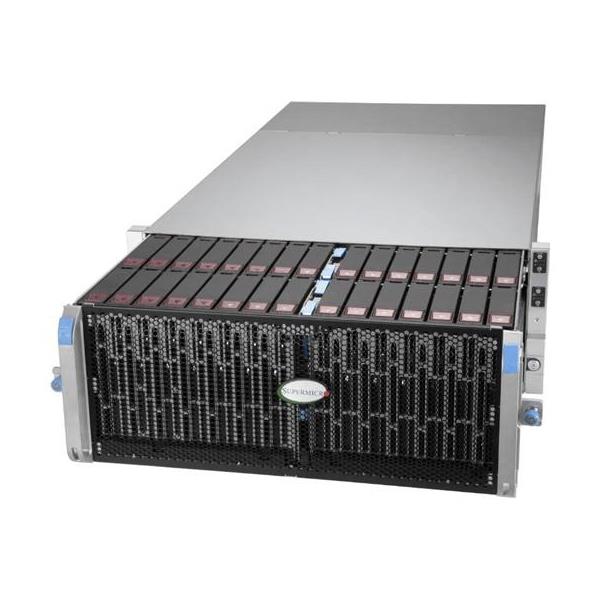

- Supermicro SSG-640SP-DE1CR60 Storage 4U Barebone Dual 3rd Gen Intel Xeon Scalable processors Up to 4TB RDIMM/LRDIMM SATA3, SAS3, M.2 NVMe Dual 10GbE, IPMI LAN port
Supermicro SSG-640SP-DE1CR60 Storage 4U Barebone Dual 3rd Gen Intel Xeon Scalable processors Up to 4TB RDIMM/LRDIMM SATA3, SAS3, M.2 NVMe Dual 10GbE, IPMI LAN port
• Big Data & Analytics, Data Lake
• HPC and AI/ML Workloads
• Telco & Cloud Service Providers
• Financial Services & Healthcare Image Archives
• Content Repositories
• Government Data Protection
Barebone 4U Rackmount SuperServer 3rd Gen Intel Xeon Scalable processors, Intel C621A chipset, Up to 4TB in 16 DIMM slots, LRDIMM/RDIMM, SAS3 via Broadcom 3916 or 3616 Controller, 60x 3.5in SATA3/SAS3 drive bays, 4x 2.5in 7mm drive bays, 2x M.2 NVMe, 2x 10GbE BaseT LAN Ports, IPMI LAN port, 2 SuperDOM (Disk on Module) port, 2600W Redundant Power Supply (CSV-947STS-R2K63P + X12DSC-6)
1. Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
2. 16 ECC DDR4-3200: LRDIMM/RDIMM
3. 3 x PCIe 4.0 x16 HHHL PCIe slots
4. 60 3.5"/2.5" Hot-swap SAS3/SATA3 drives (Each node controls 30 drives)
5. 6x 8cm hot-swap counter-rotate redundant PWM cooling fans
6. 2600W Redundant Power Supplies Titanium Level (96%)
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN Drive Controller support via Broadcom® 3916 or 3616
Extra Specifications for Supermicro SSG-640SP-DE1CR60 Storage 4U Barebone Dual 3rd Gen Intel Xeon Scalable processors Up to 4TB RDIMM/LRDIMM SATA3, SAS3, M.2 NVMe Dual 10GbE, IPMI LAN port
| Motherboard | ||
| Motherboard | Super X12DSC-6 | |
| Processor (per Node) | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Dual Socket P+ (LGA-4189) | ||
| Support CPU TDP 120-205W | ||
| Cores | Up to 36C/72T; Up to 54MB Cache | |
| System Memory (per Node) | ||
| Memory | Memory Capacity: 16 DIMM slots | |
| Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM | ||
| Up to 4TB: 16x 256 GB DRAM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices (per Node) | ||
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 10GbE BaseT with X550 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output (per Node) | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ-45 10Gbase-T ports | ||
| USB | 2 USB 3.0 port(s) (2 Rear_USB) | |
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 rear) | |
| DOM | 2 Super DOM (Disk on Module) port | |
| System BIOS | ||
| BIOS Type | AMI 128MB SPI Flash EEPROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| SUM | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 4+1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 4U Rackmount | |
| Model | CSV-947STS-R2K63P | |
| Dimensions and Weight | ||
| Height | 7" | |
| Width | 17.6" | |
| Depth | 34.1" | |
| Package | 29.92" (H) x 31.89" (W) x 44.88" (D) | |
| Weight | Net Weight: 118 lbs (53.5 kg) | |
| Gross Weight: 170.5 lbs (77.3 kg) | ||
| Available Color | Black | |
| Drive Bays / Storage (per Node) | ||
| Hot-swap | 60x 3.5" hot-swap SATA3/SAS3 drive bays | |
| 2x 2.5" 7mm drive bays | ||
| M.2 | 2 M.2 NVMe | |
| System Cooling | ||
| Fans | 6 Heavy Duty 8cm Fan(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| AC Input | 2600W: 200-240Vac / 15A Max | |
| DC Input | 2600W: 200-240Vdc For CQC Only/ 15A Max / 50-60Hz | |
| +12V | Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output) | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 8% to 90% (Non-Condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | ||
| Product SKUs | ||
| Product SKUs | SSG-640SP-DE1CR60 | |
| Expansion Slots (per Node) | ||
| PCI-Express (PCIe) | 3 PCIe 4.0 x16 LP slot(s) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| HBA option | AOM-S3816-S-O | 2 | SAS3816 mezzanine controller for serviceable 60/90 bay systems | |||
| HW RAID option | AOM-SADPT-S | $ 460.00 | 2 | Bypass card for 60/90 bay systems (One per Node) | ||
| HW RAID option | CBL-SAST-1301-100 | $ 42.50 | 2 | Slimline x8 (STR) to 2x SLL x8 STR,14/14CM,100 Ohm,RoHS (One per Node) | ||
| HW RAID option | AOC-S3908L-H8IR | $ 887.00 | 2 | AOC with Gen4 SAS3908 controller (U3) and 240PD RAID Key (U39) (One per Node) | ||
| Network Cards | AOC-S25G-M2S | $ 204.00 | 0 | Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN | ||
| Network Cards | AOC-S40G-I2Q | $ 377.00 | 0 | Standard LP 2-port 40GbE controller, Intel Fortville XL710 | ||
| Network Cards | AOC-SGP-I2 | $ 106.00 | 0 | Standard LP 2-port GbE, Intel 82575 | ||
| Network Cards | More | 0 | AOC Compatibility Matrix (Select Storage & Generation) | |||
| SuperCap Kit (Need Both items) | MCP-240-94711-0N | $ 25.00 | 2 | SC947 MB Node Supercap holder module,RoHS (Optional) (One per Node) | ||
| SuperCap Kit (Need Both items) | BTR-CVPM05 • | 2 | Broadcom 05-50039-00 CacheVault w/ 24" Remote Extender(Optional)(One per Node) | |||
| TPM | AOM-TPM-9670V-O • | 1 | TPM 2.0, vertical form factor, provisioned for server | |||
| TPM | AOM-TPM-9671V-O | 1 | TPM 1.2, vertical form factor, provisioned for server |
